- Product description
-

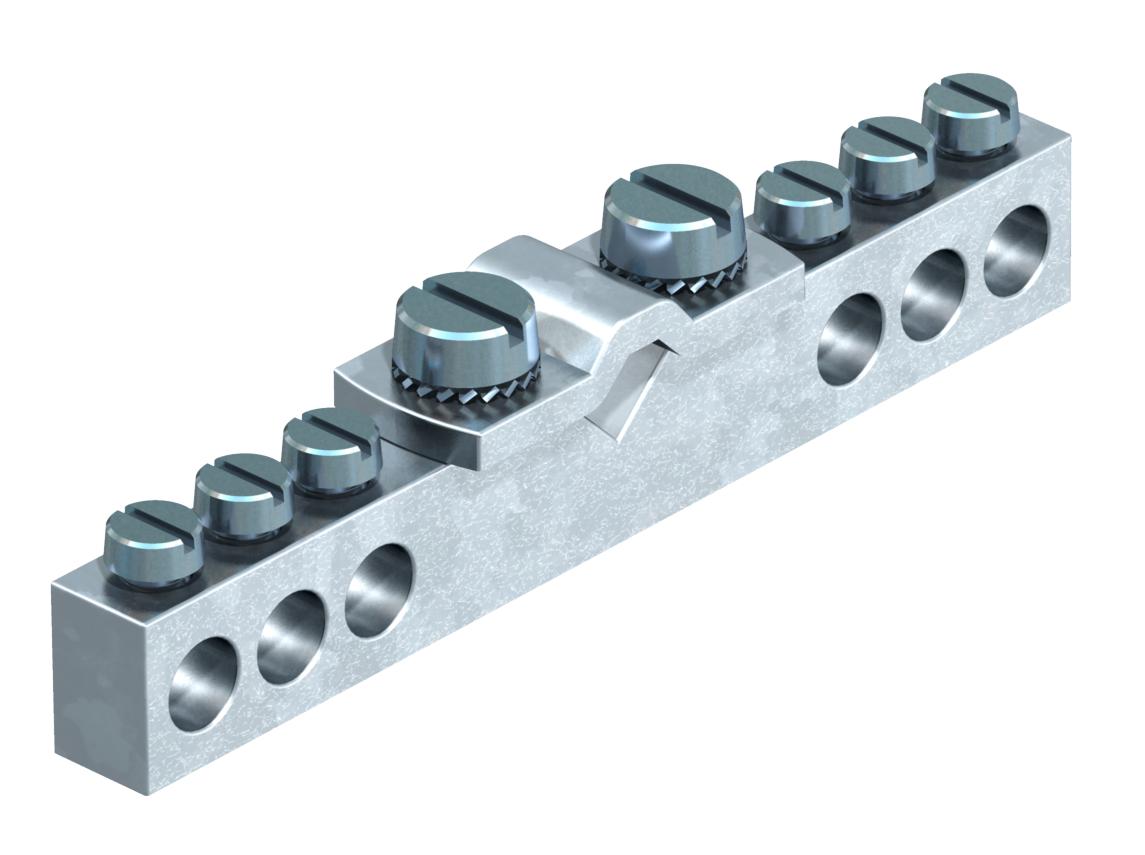

Product description• Nickel-plated brass contact strip
• Screws and clamp made of electrogalvanised steel
Connection options:
• 6 cables 1.5-10 mm²
• 1 cable 6-16 mm²
- Technical data
-
Technical data

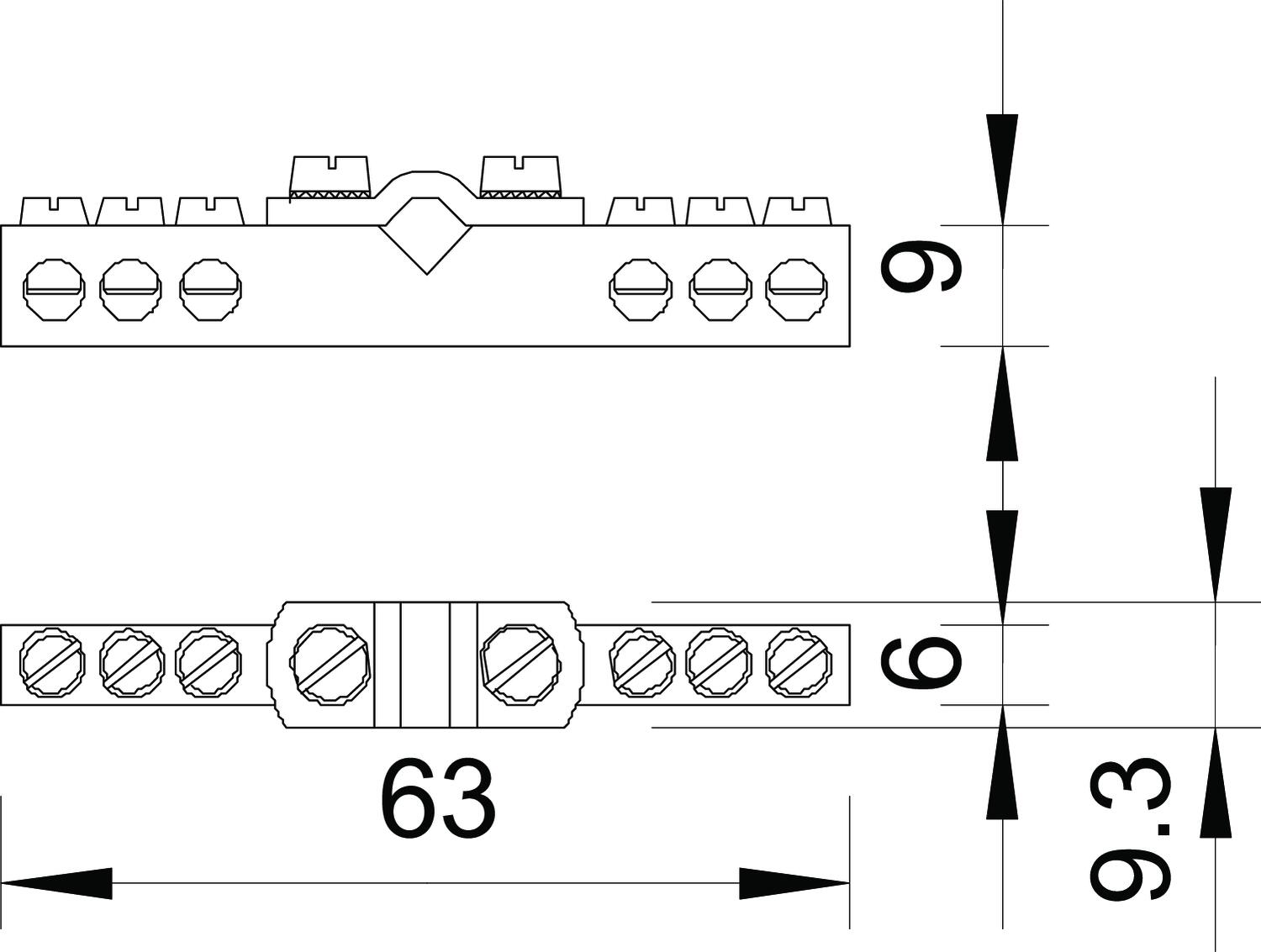

Dimension 409 Height 9 mm Insulator no Length 63 mm Material Brass Material of the contact rail Brass Material of the terminal Steel Quantity of cable connections up to 16 mm², rigid 1 Quantity of cable connections up to 6 mm², rigid 6 Quantity of round conductor connections, total 7 Surface of the contact rail Nickel-plated Surface of the terminal Electrogalvanised Type Fixed structure Version for Without cover hood Width 9,3 mm - All types
- Downloads
-
Data sheet 1804 / 5015553 , 0.17MB , pdfEU declaration of conformity 1804 / 5015553 , 0.10MB , pdfREACH Declaration of conformity 1804 / 5015553 , 0.12MB , pdfRoHS Declaration of conformity 1804 / 5015553 , 0.12MB , pdf
