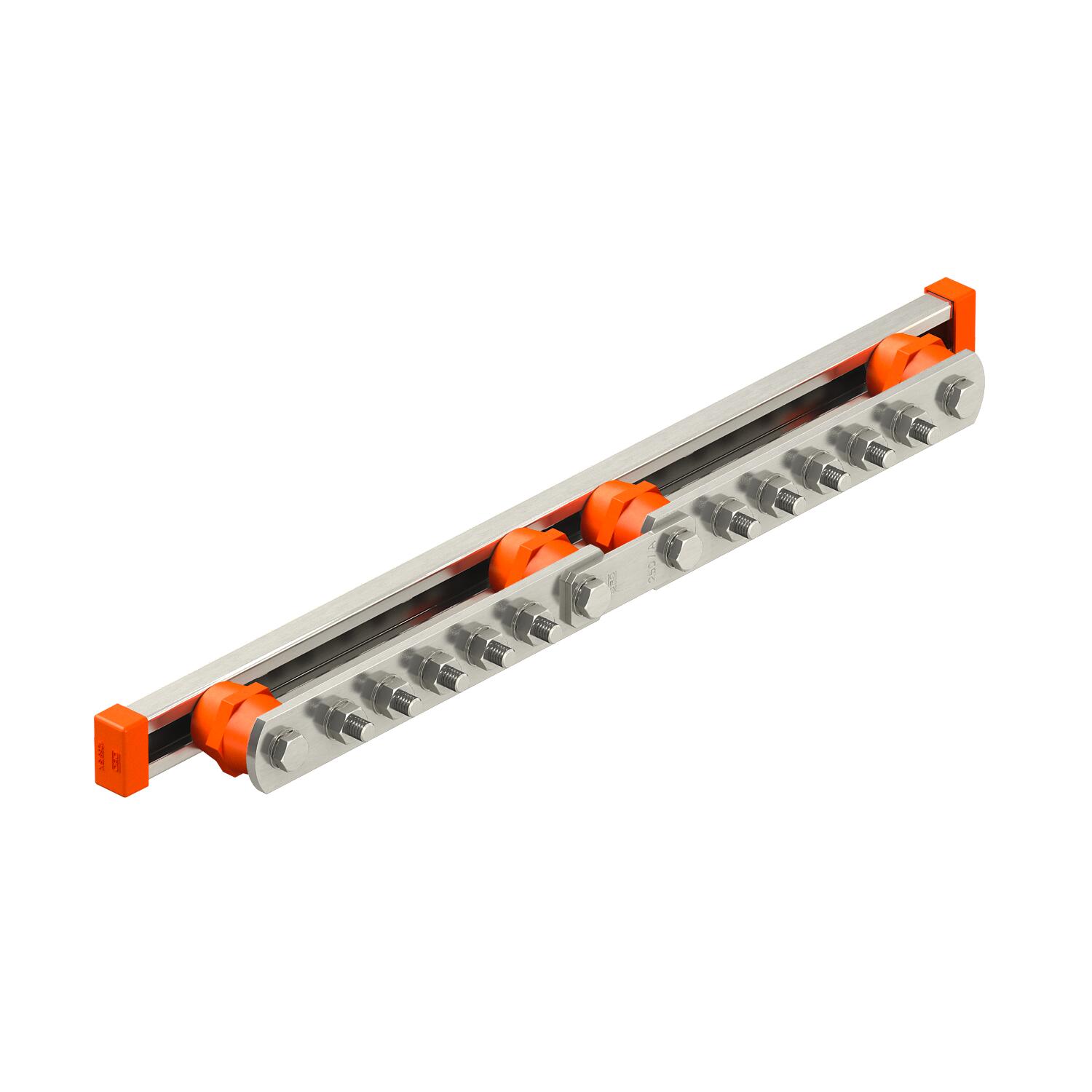

Equipotential busbar for flexible wall mounting with separation point

Item no. 5015876 | EAN 4012196681938

40 mm
Product description
Product description
Main equipotential busbar for equipotential bonding to VDE 0100 Part 410/-540 and
lightning protection equipotential bonding to VDE 0185-305 (IEC 62305)

• With separation point (Disconnect - DC)
• For flexible wall mounting
• Complete with profile rail (FT) and screws
• Rust-proof stainless steel versions (V2A) are suitable for outdoor use
• Quick, simple mounting of the connection cable using
lock bolts M10
• With lock washer (DIN 137) for bolt locking against loosening
  • Lightning current-tested
Technical data

Technical data

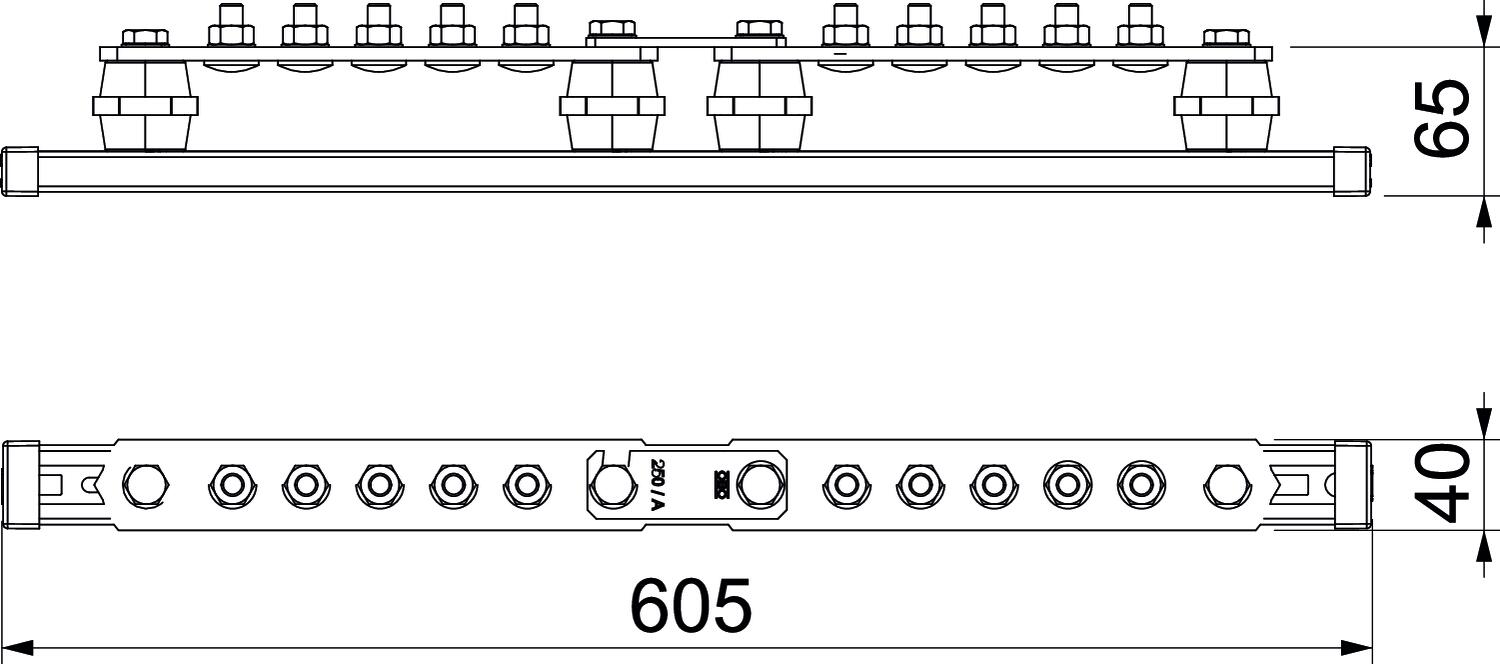

Dimension 5+5 x M10
Height 85 mm
Insulator yes
Length 605 mm
Lightning current carrying capacity H/100 kA
Material Stainless steel
Material of the contact rail Rustproof steel (V2A)
Material of the terminal Rustproof steel (V2A)
Number of connections 10
Type Modular structure
Version for Only terminal
Width 40 mm
All types

All types

Types Length Width Height Number of connections Item no. Quantity SSU
1802 10 VA 408.5 mm 40 mm 5 mm 10 5015866
12 piece
1802 5 VA 246 mm 40 mm 5 mm 5 5015854
6 piece
1802 DC 5+5 VA 605 mm 40 mm 85 mm 10 5015876
1 piece
Accessories

System accessories

Products Types Item no. Quantity SSU

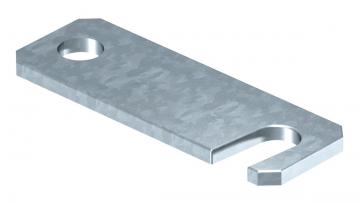

Crossbar for equipotential busbar Crossbar for equipotential busbar 1802 KL 5015890
75 piece
