Equipotential busbar for indoors

Item no. 5015680 | EAN 4012195313021

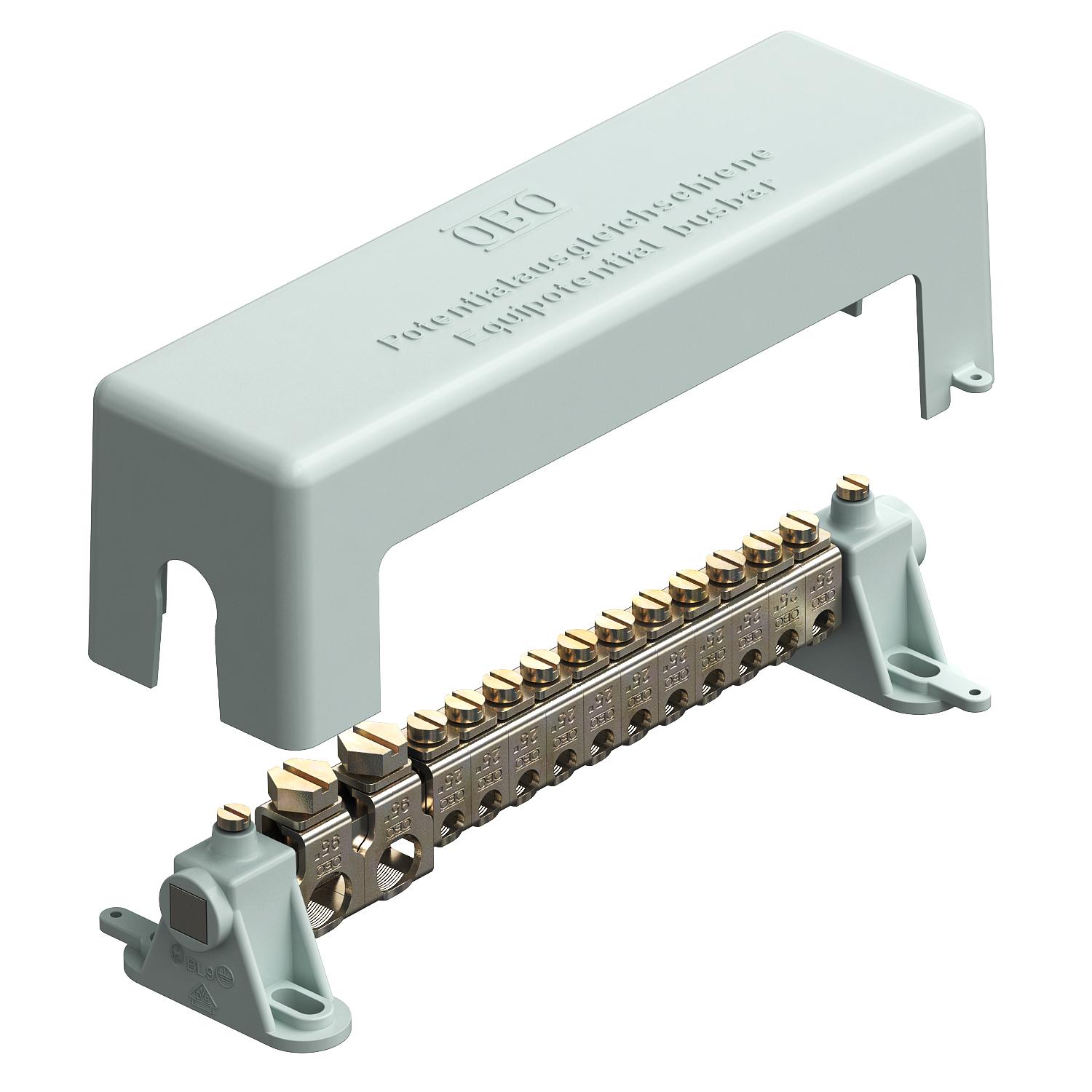

Product description
Product description
Equipotential busbar for equipotential bonding to DIN VDE 0100-410/-540 as well as lightning protection equipotential bonding to DIN VDE 0185-305

• According to VDE 0618, Part 1
• With 10 x 10 mm clamping rail made of nickel-plated brass
• With contact-secure series terminals made of electrogalvanised steel
• Cover and rail stands made of grey polystyrene
• Sealable / labellable cover
• Lightning current carrying capacity 100 kA (10/350)
• Tension clamp with screw lock against self-loosening (e.g. required in industry)

Connection options:
• 11 single or multi-wire cables 2.5–25 mm² or fine-wire cables to 16 mm² (max. Ø 7 mm)
• 2 single or multi-wire cable 25–95 mm² or fine-wire cable to 70 mm² (max. Ø 13.5 mm)



Technical data

Technical data

Dimension 188mm
Insulator yes
Material Brass
Material of the contact rail Brass
Material of the terminal Steel
Quantity of cable connections up to 25 mm², rigid 11
Quantity of cable connections up to 95 mm², rigid 2
Surface of the contact rail Nickel-plated
Surface of the terminal Electrogalvanised
Type Modular structure
Version for With cover hood
All types

All types

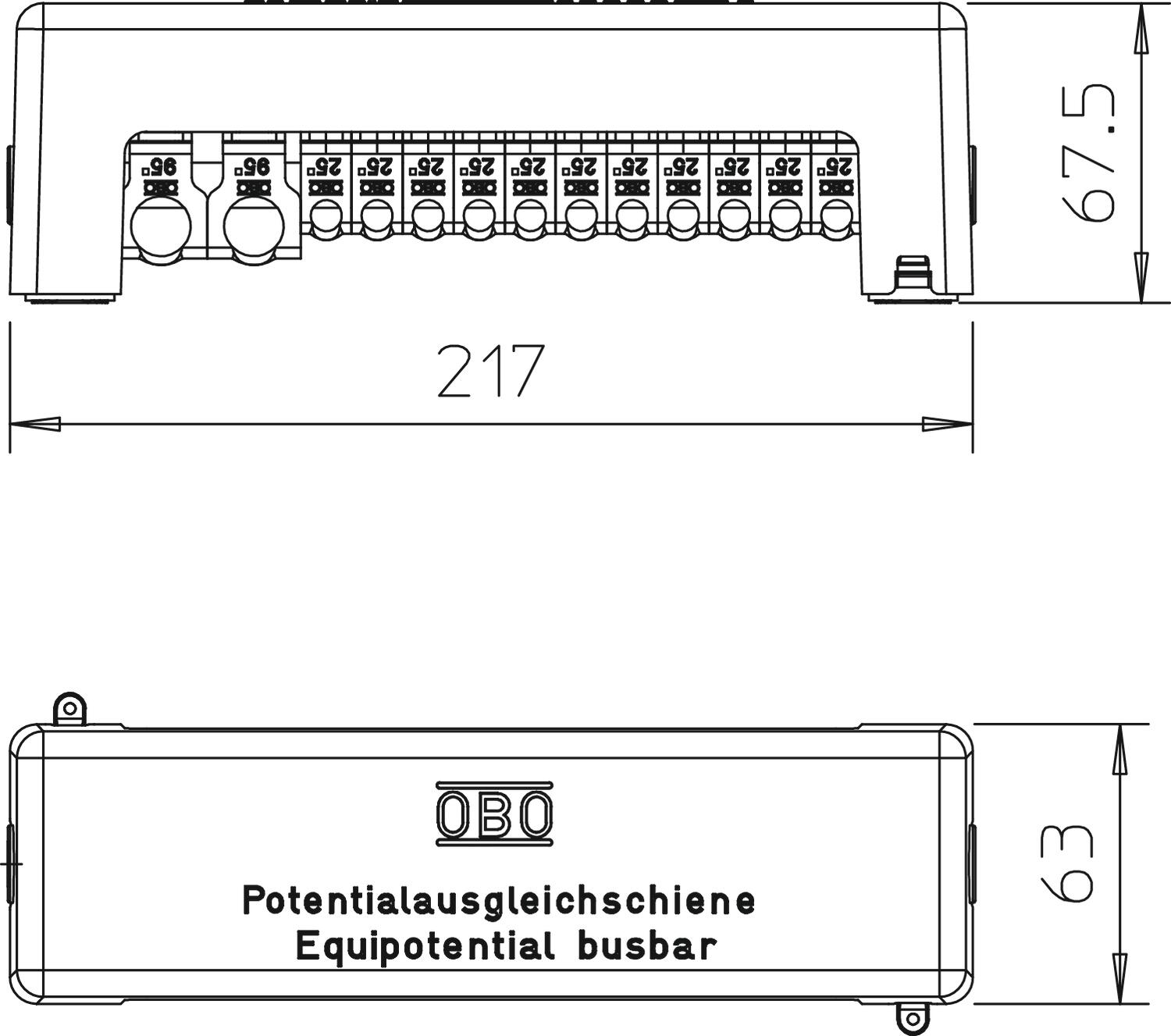

Types Length Width Height Colour Item no. Quantity SSU
1801 VDE 217 mm 63 mm 67.5 mm Grey 5015650
1 piece
1801 FIN - - - - 5015680
1 piece
1801 12x25 1x95 217 mm 63 mm 67.5 mm Grey 5015683
1 piece
Accessories

System accessories

Products Types Item no. Quantity SSU
Cover hood for 1801 VDE Cover hood for 1801 VDE 1801 AH 5015707
10 piece
