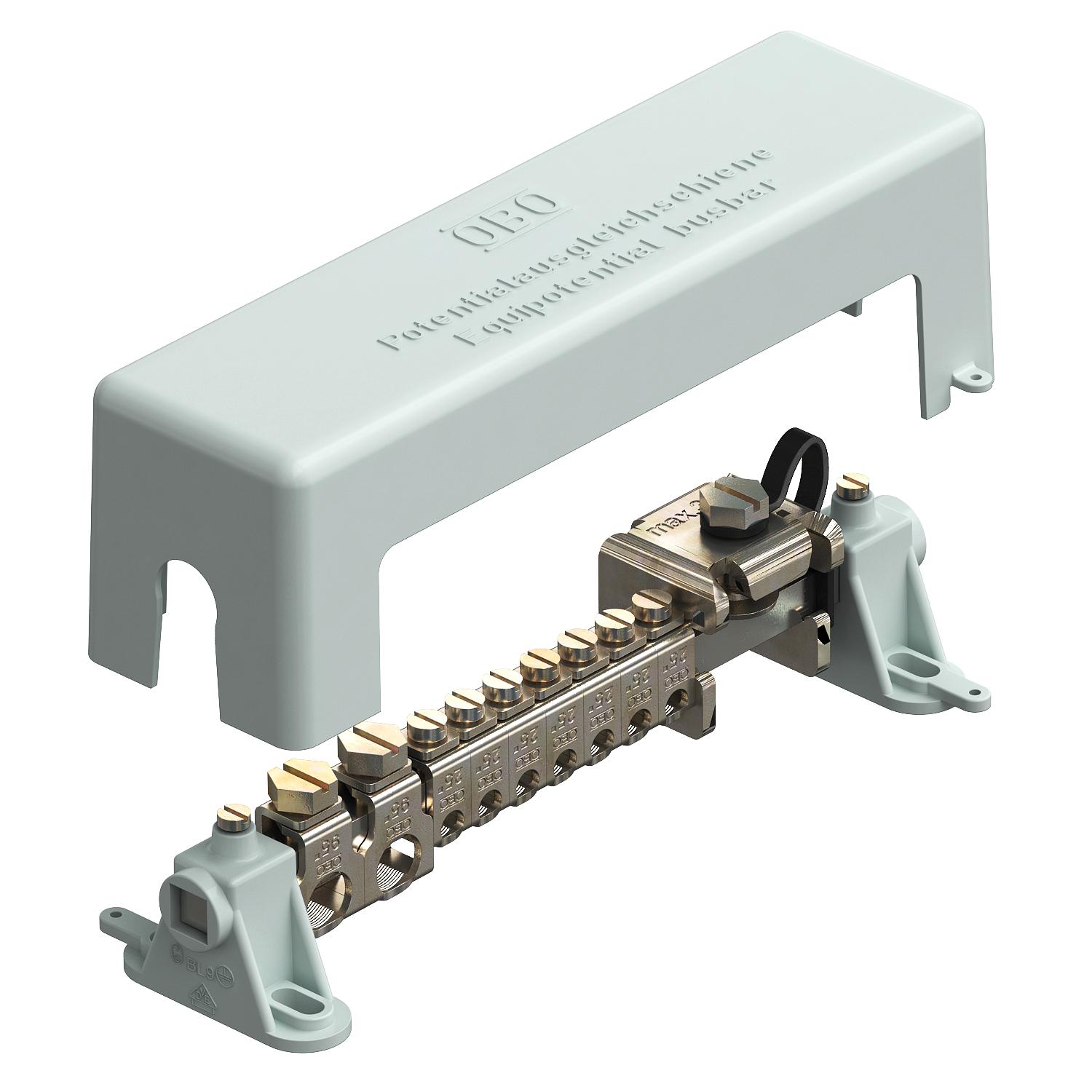

Equipotential busbar for indoors, VDE-tested

Item no. 5015650 | EAN 4012195378556

Product description
Product description
Equipotential busbar for equipotential bonding to DIN VDE 0100-410/-540 as well as lightning protection equipotential bonding to DIN VDE 0185-305

• According to VDE 0618, Part 1
• With 10 x 10 mm clamping rail made of nickel-plated brass
• With contact-secure series terminals made of electrogalvanised steel
• Cover and rail stands made of grey polystyrene
• Sealable/labellable cover
• Lightning current carrying capacity 100 kA (10/350)
• Tension clamp with screw lock against self-loosening (e.g. required in industry)

Connection options:
• 7 single or multi-wire cables 2.5–25 mm² or fine-wire cables to 16 mm² (max. Ø 7 mm)
• 2 single or multi-wire cable 25–95 mm² or fine-wire cables to 70 mm² (max. Ø 13.5 mm)
• 1 flat conductor 30 x 3.5 mm

With sealable cover hood,
made from impact-resistant plastic
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Lightning current-tested, Class H (100 kA)
  • Eidgenössisches Starkstrominspektorat, Switzerland
Technical data

Technical data

Colour Grey
CO₂ Footprint (GWP) Cradle-to-Gate 1,668 kg CO₂e / 1 Piece

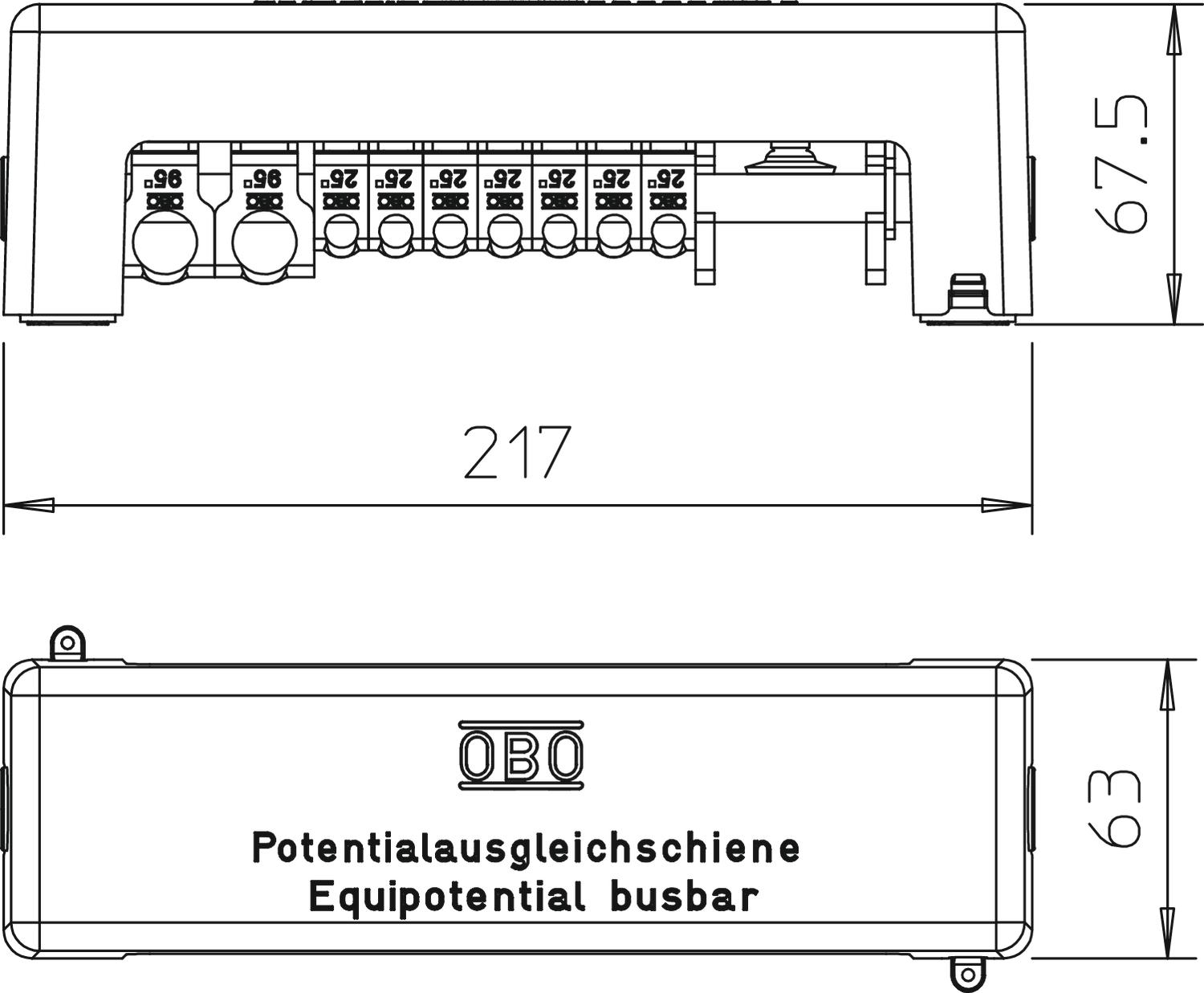

Dimension 217mm
Height 67,5 mm
Insulator yes
Length 217 mm
Material Brass
Material of the contact rail Brass
Material of the terminal Steel
Quantity of cable connections up to 25 mm², rigid 7
Quantity of cable connections up to 95 mm², rigid 2
Quantity of flat conductor connections up to 30 mm 1
Surface of the contact rail Nickel-plated
Surface of the terminal Electrogalvanised
Type Modular structure
Version for With cover hood
Width 63 mm
All types

All types

Types Length Width Height Colour Item no. Quantity SSU
1801 VDE 217 mm 63 mm 67.5 mm Grey 5015650
1 piece
1801 FIN - - - - 5015680
1 piece
1801 12x25 1x95 217 mm 63 mm 67.5 mm Grey 5015683
1 piece
Accessories

System accessories

Products Types Item no. Quantity SSU
Cover hood for 1801 VDE Cover hood for 1801 VDE 1801 AH 5015707
10 piece
Rail stands for 1801 VDE Rail stands for 1801 VDE 1801 SCH 5015715
10 piece

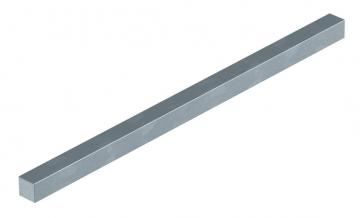

Contact strip for 1801 VDE Contact strip for 1801 VDE 1801 KL1 5015723
50 piece
Flat conductor terminal to FL 30 for 1801 VDE Flat conductor terminal to FL 30 for 1801 VDE 1801 RK30 5015731
10 piece
Round cable terminal to 25 mm² for 1801 VDE Round cable terminal to 25 mm² for 1801 VDE 1801 RK25 5015758
10 piece
Round cable terminal from 25 mm² for 1801 VDE Round cable terminal from 25 mm² for 1801 VDE 1801 RK95 5015766
10 piece
Flat conductor terminal from FL 30 for 1801 VDE Flat conductor terminal from FL 30 for 1801 VDE 1801 RK40 5015774
10 piece
