Equipotential busbar OBO Green

Item no. 5015075 | EAN 4012195931669

5015075 / 1809 NR

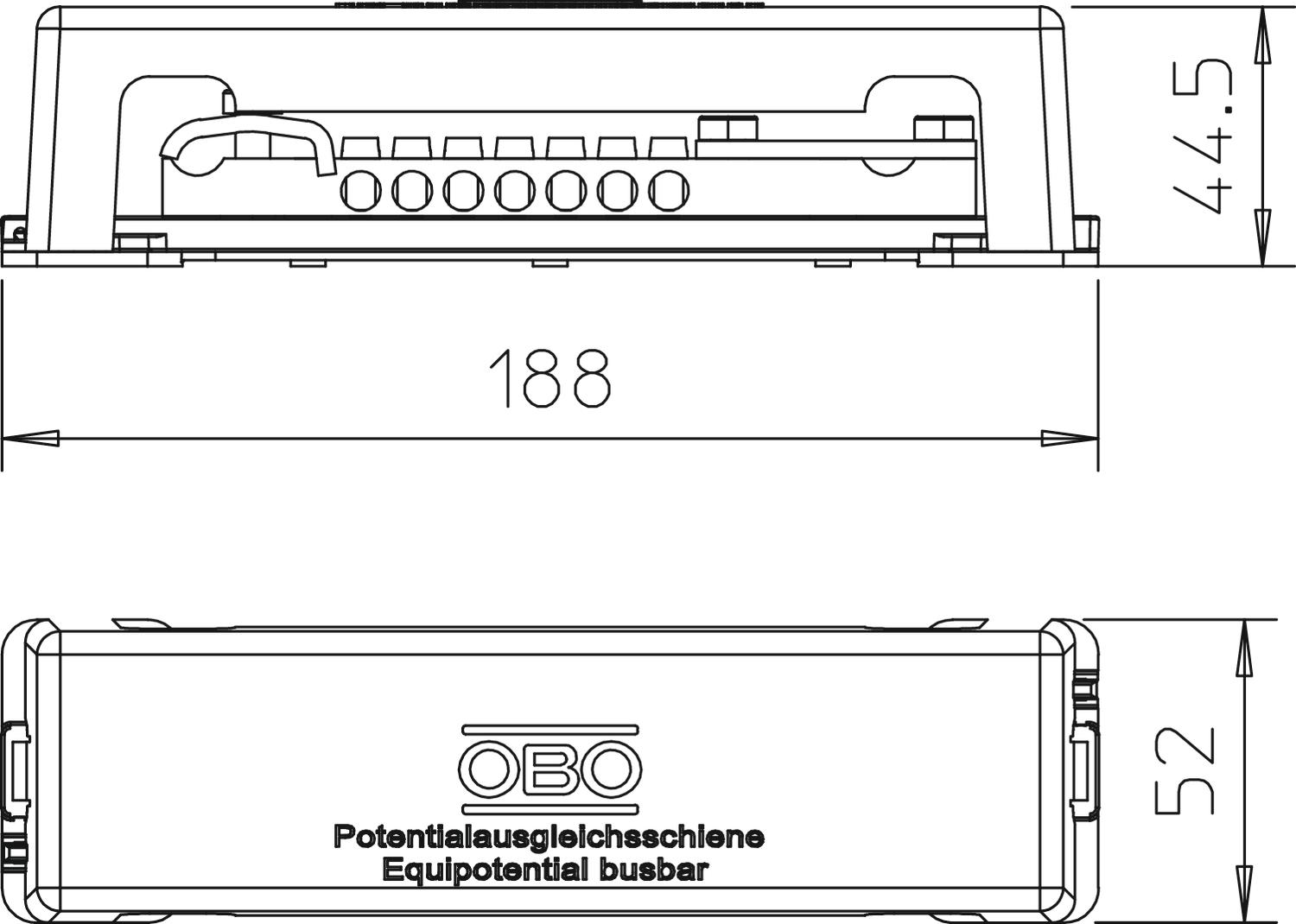

188 mm
52 mm
44.5 mm
White
Product description

Product description

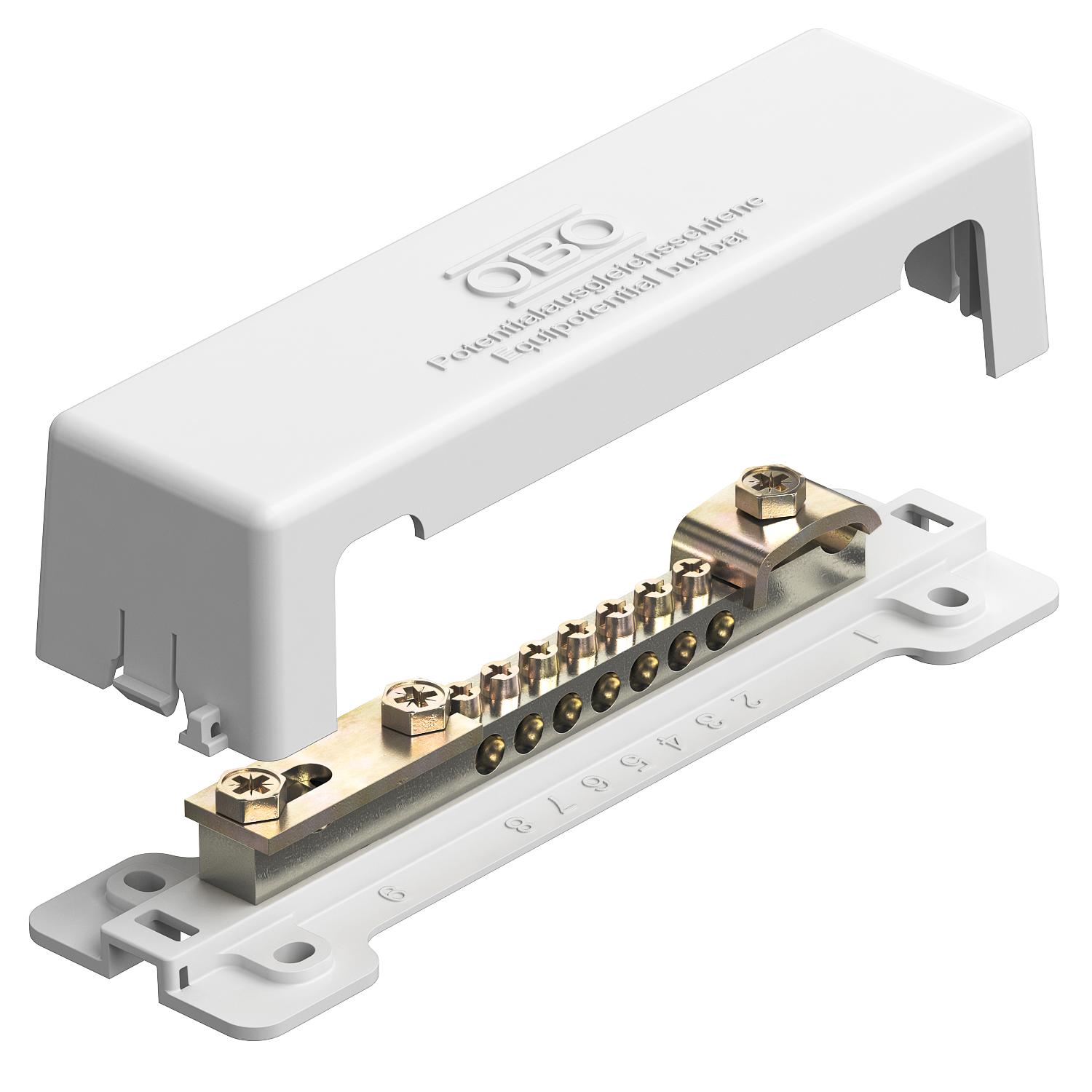

The OBO Green equipotential busbar is a solution manufactured from cellulose acetate CA for the installation of the equipotential bonding according to DIN VDE 0100-410/-540 and lightning protection equipotential bonding according to DIN VDE 0185-305. The basic material is widely used in the paper industry.


• Base plate and cover hood made of CA, white

• Sealable and labellable cover

• Contact strip made of brass

• Bolts and crossbar made of electrogalvanised steel

• Capable of carrying lightning current 100 kA (10/350)


Connection options:

• 7x single or multi-wire cables to 25 mm² or fine-wire cables to 16 mm²

• 1x round conductor Rd 8–10

• 1x flat strip to FL 30 or round conductor Rd 8–10
with lead-sealable cover hood from renewable resources
  • Lightning current-tested
  • Halogen-free; without chlorine, fluorine and bromine
Technical data

Technical data

Colour White
Dimension 188mm
Height 44,5 mm
Insulator yes
Length 188 mm
Lightning current carrying capacity H/100 kA
Material Brass
Material of the contact rail Brass
Material of the terminal Steel
Quantity of cable connections up to 25 mm², rigid 7
Quantity of flat conductor connections up to 30 mm 1
Quantity of round conductor connections 8-10 mm 1
Quantity of round conductor connections, total 1
Surface of the contact rail Nickel-plated
Surface of the terminal Electrogalvanised
Type Fixed structure
Version for With cover hood
Width 52 mm
All types

All types

Types Length Width Height Colour Item no. Quantity SSU
1809 NR 188 mm 52 mm 44.5 mm White 5015075
1 piece
