Equipotential busbar, solid version

Item no. 5015057 | EAN 4012195378136

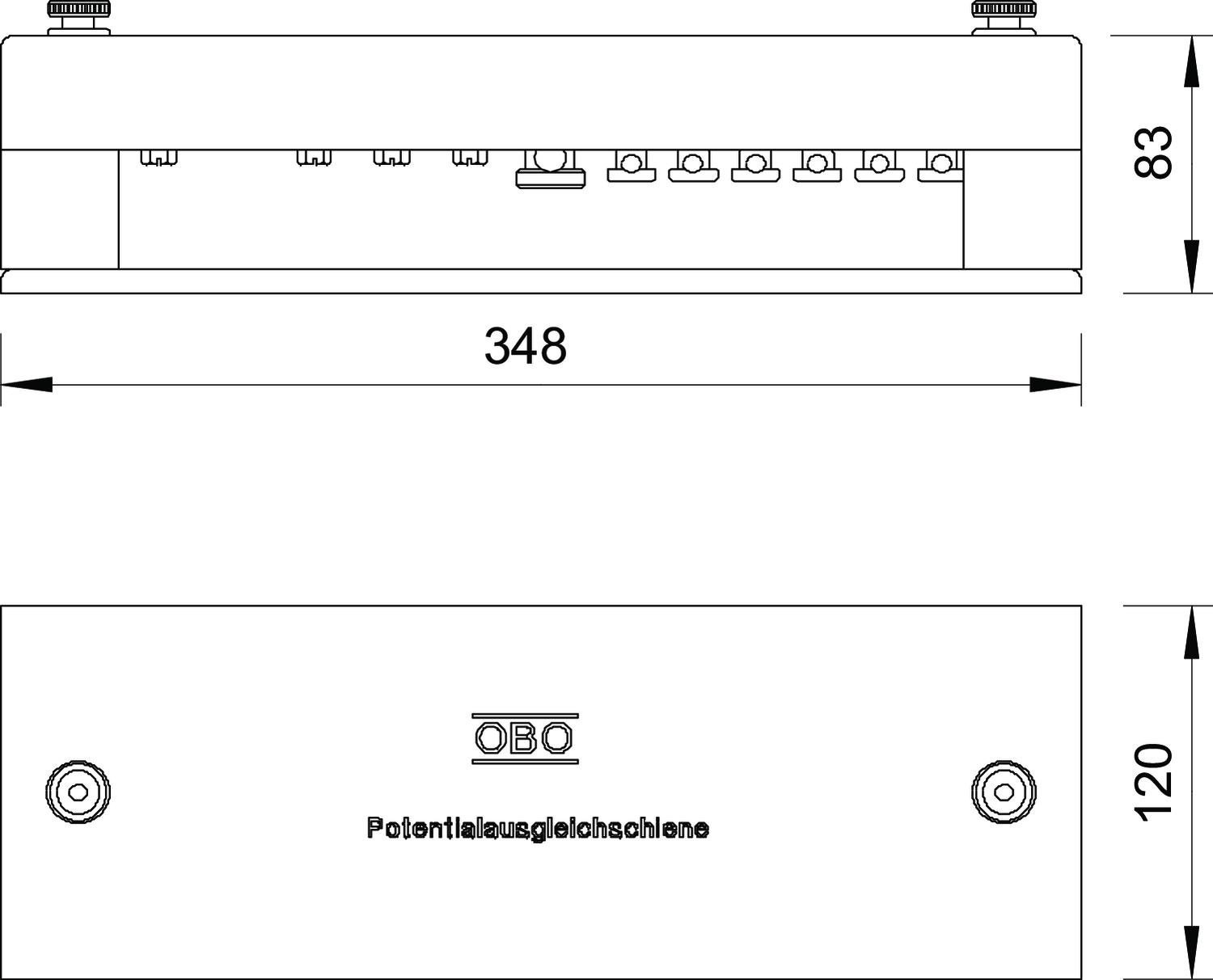

5015057 / 1810
348 mm
120 mm
83 mm
Product description
Product description
• Base plate and screw-on cover made of strip-galvanised steel

• Sealable / labellable cover

• Contact strip made of strip-galvanised steel

• Screws and crossbar made of steel, hot-dip galvanised or electrogalvanised


Connection options:

• 6 cables 6-16 mm²

• 1 round conductor Rd 8-10

• 1 flat conductor to FL 40

• 2 cable shoe M8
Technical data

Technical data

Dimension 348mm
Height 83 mm
Insulator no
Length 348 mm
Material Steel
Material of the contact rail Brass
Material of the terminal Steel
Quantity of cable connections up to 16 mm², rigid 6
Quantity of flat conductor connections up to 40 mm 1
Quantity of round conductor connections 8-10 mm 1
Quantity of round conductor connections, total 1
Surface Hot galvanized
Surface of the contact rail Nickel-plated
Surface of the terminal Electrogalvanised
Type Fixed structure
Version for With cover hood
Width 120 mm
All types

All types

Types Length Width Height Item no. Quantity SSU
1810 348 mm 120 mm 83 mm 5015057
4 piece
Downloads

Download

Download

EU declaration of conformity 1810 / 5015057 , 0.13MB , pdf
Download

1810 / 5015057
