Expansion piece, metric thread
Item no. 2088282 | EAN 4012195372172
- Product description
-
Product description
Extension made from brass with metric inner and outer thread to mount metal or plastic cable glands on housings. IP54 protection rating without additional connection sleeve. Protection rating of up to IP68 possible with additional connection seal, such as an O-ring or flat sealing ring.
-
- Technical data
-
Technical data
Dimension M20-M25 explosion-proof no Material Brass Nickel-plated yes Surface Nickel-plated Thread dimension, metric, external 20 Thread dimension, metric, internal 25 Thread type: External thread Metric Thread type: Internal thread Metric WAF 27 Dimensions

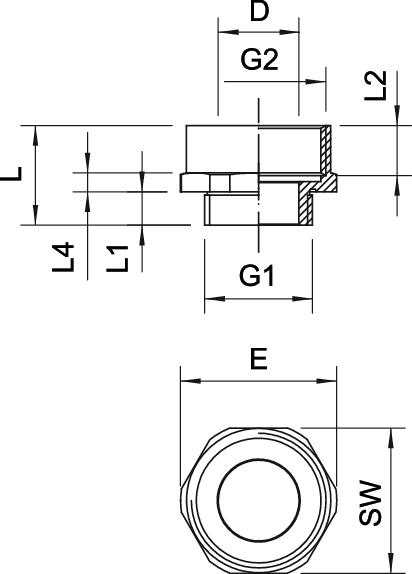

Dimension D 15 mm Dimension E 29 mm Dimension L 18,5 mm Dimension L1 6,4 mm Dimension L2 9 mm Dimension L4 3,5 mm - All types
