Expansion piece, metric thread

Item no. 2088285 | EAN 4012195372202

Item no. / Types

Thread dimension, metric, external

Thread dimension, metric, internal

Product description

Product description

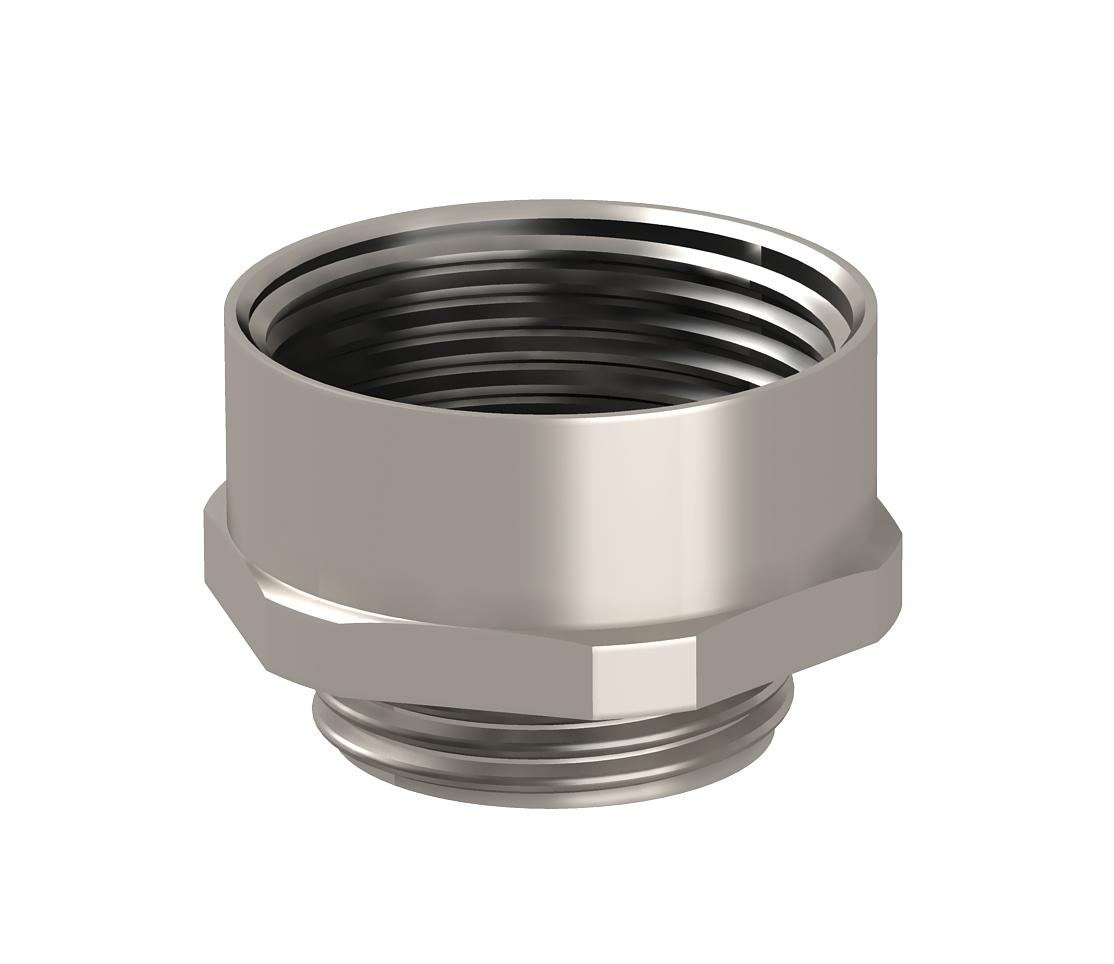

Extension made from brass with metric inner and outer thread to mount metal or plastic cable glands on housings. IP54 protection rating without additional connection sleeve. Protection rating of up to IP68 possible with additional connection seal, such as an O-ring or flat sealing ring.

Technical data

Technical data

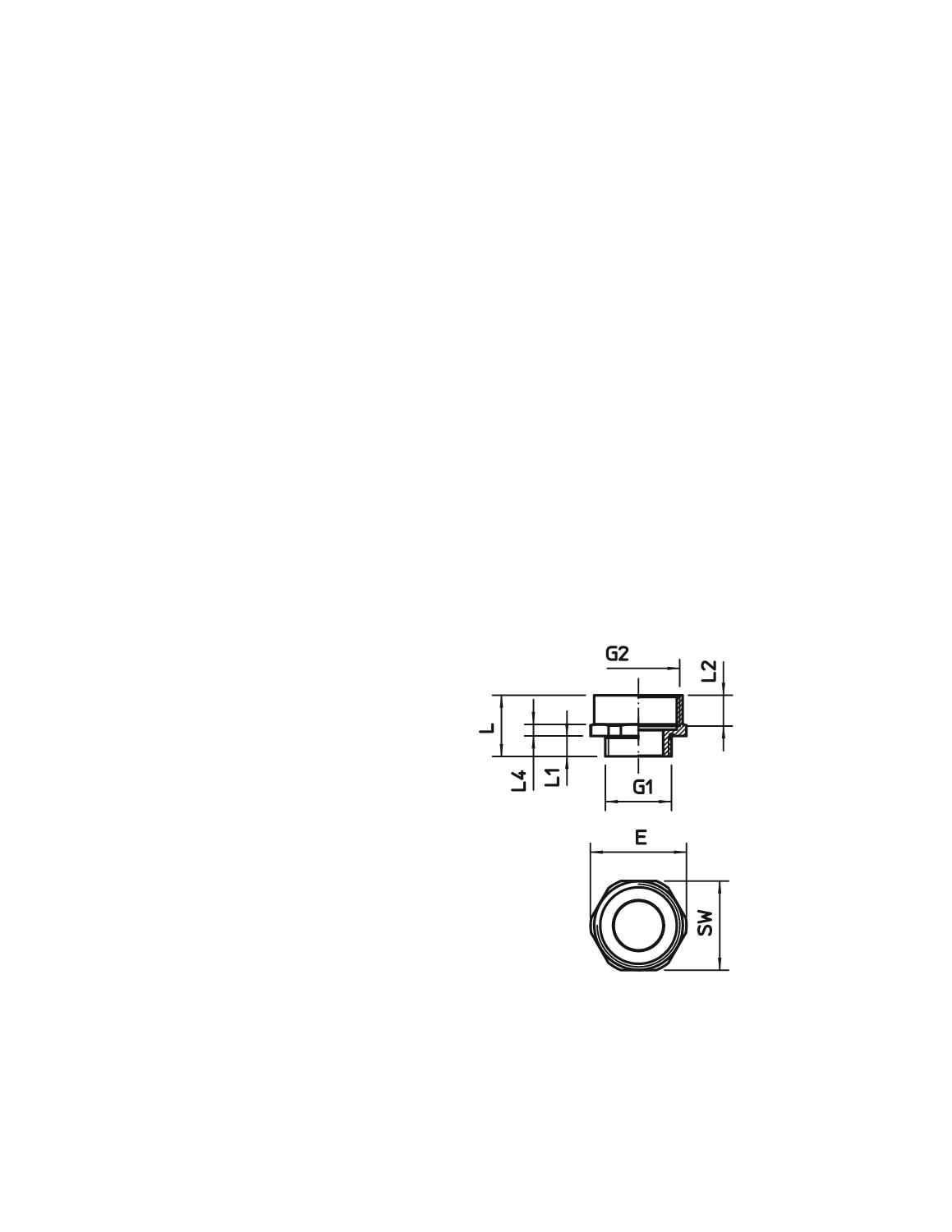

Dimension	M40-M50
Dimension D	33,8 mm
Dimension E	58 mm
Dimension L	30,5 mm
Dimension L1	8,2 mm
Dimension L2	12,5 mm
Dimension L4	6 mm
explosion-proof	no

Material	Brass
Nickel-plated	yes
Surface	Nickel-plated
Thread dimension, metric, external	40
Thread dimension, metric, internal	50
Thread type: External thread	Metric
Thread type: Internal thread	Metric
WAF	52

All types

All types

Types	Thread dimension, metric, external	Thread dimension, metric, internal	Item no.	Quantity	SSU
165 ADA M12-16	12	16	2088280	piece	50 piece
165 ADA M16-20	16	20	2088281	piece	50 piece
165 ADA M20-25	20	25	2088282	piece	50 piece
165 ADA M25-32	25	32	2088283	piece	50 piece
165 ADA M32-40	32	40	2088284	piece	25 piece
165 ADA M40-50	40	50	2088285	piece	10 piece
165 ADA M 50-63	50	63	2088286	piece	5 piece
