External connector

Item no. 6208778 | EAN 4012196339914

65 mm
2 mm
Steel
Product description

Product description

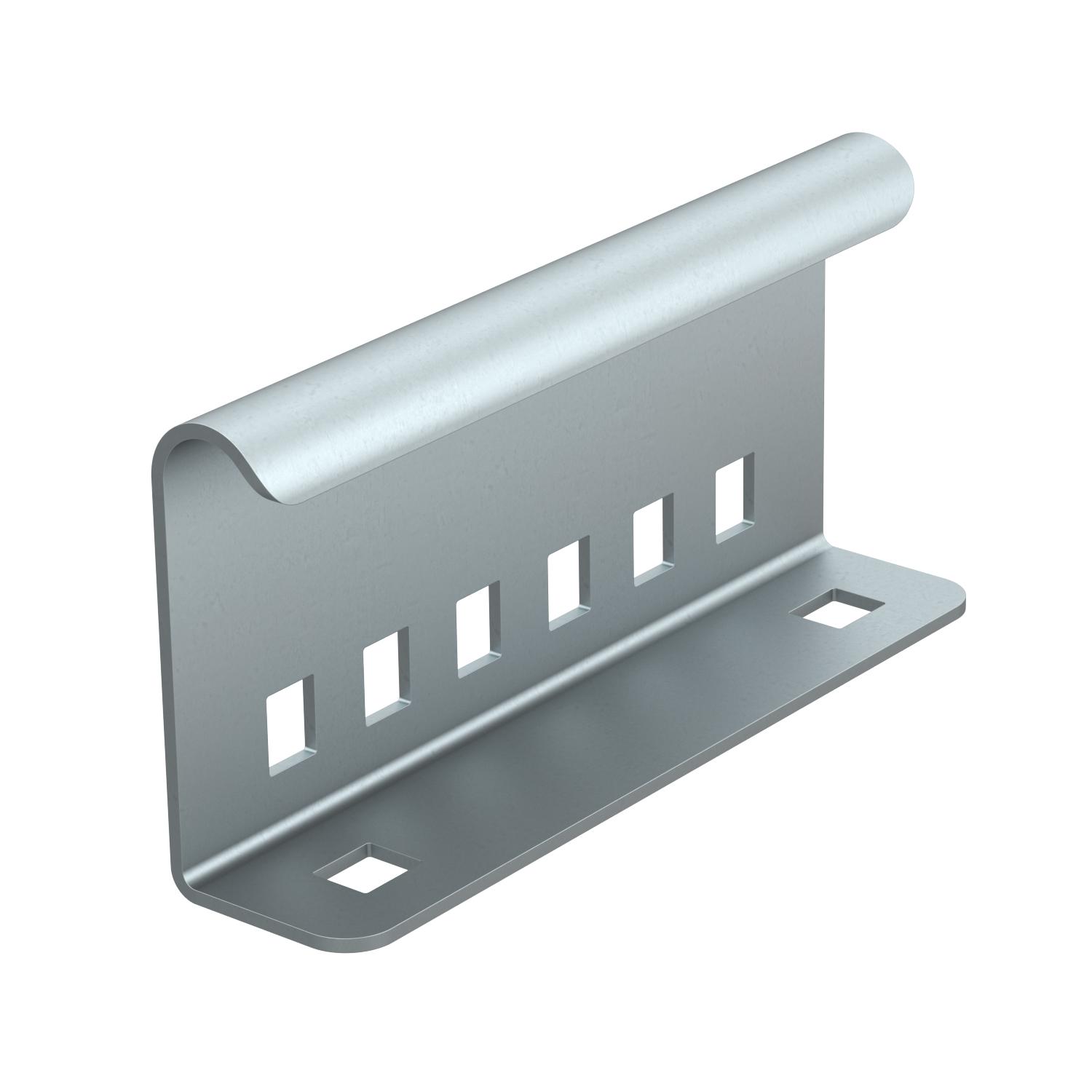

External connector for mechanical connection of cable ladder sections for routing types with cable ladders for the maintenance of electrical function to DIN 4102 Part 12. Including bolts.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Adjustable connector, horizontal no
Articulated connector, vertical no
Connection type Screw connector

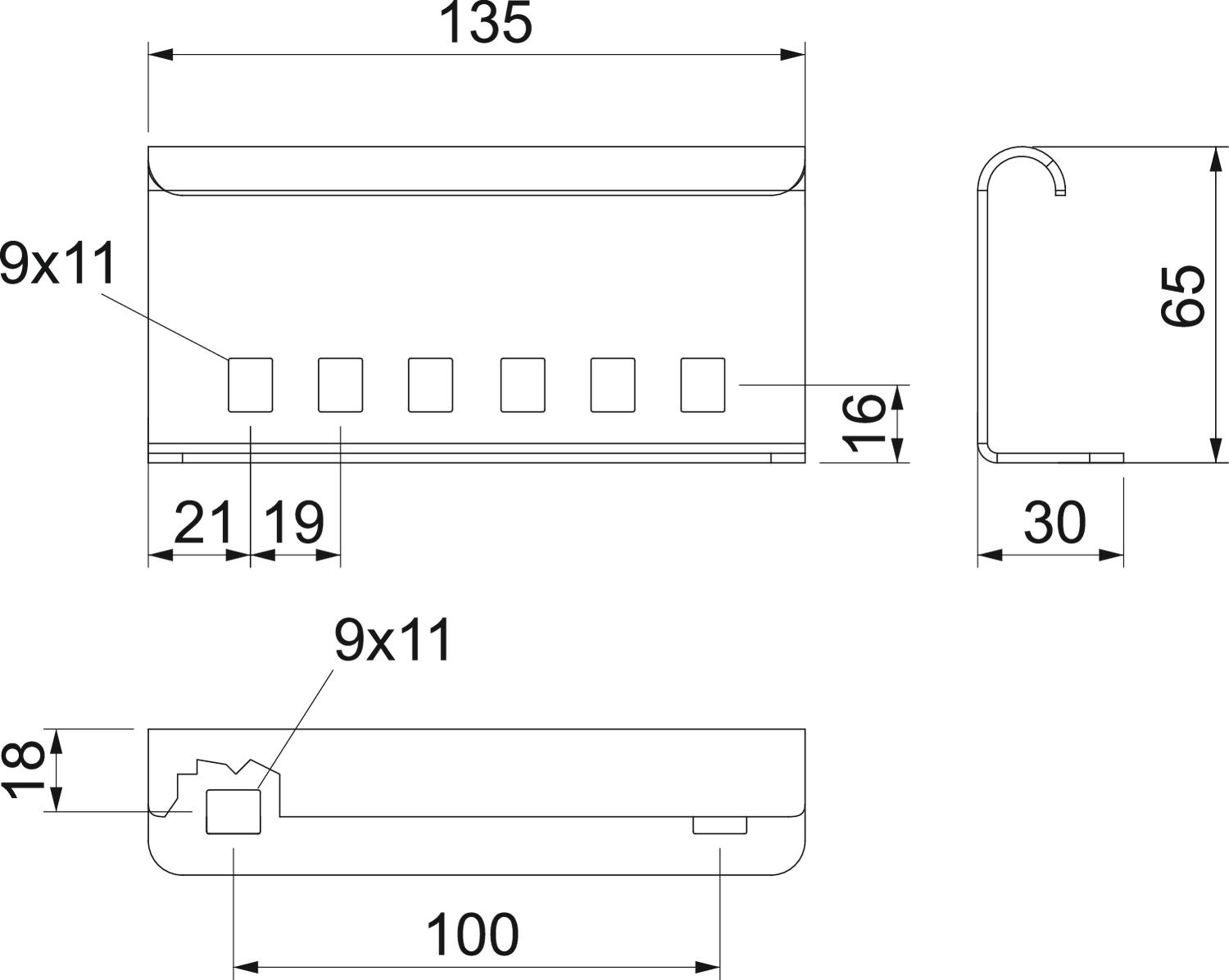

Dimension 135x65x30
Height 65 mm
Length 135 mm
Maintain electrical functions no
Material Steel
Plate thickness 2 mm
Rustproof steel, pickled no
Suitable for cable ladder yes
Suitable for cable tray no
Suitable for cable tray system height 65 mm
Suitable for mesh cable tray no
Surface Hot-dip galvanised
Version for Straight connector
Wide-span version no
Width 30 mm
All types

All types

Types Height Plate thickness Material Surface Item no. Quantity SSU
AVL 60 FS 65 mm 2 mm Steel Strip galvanized 6208770
10 piece
AVL 60 FT 65 mm 2 mm Steel Hot-dip galvanised 6208778
10 piece
Downloads

Download

Declaration of conformity AVL 60 FT / 6208778 , 0.11MB , pdf
Download
REACH Declaration of conformity AVL 60 FT / 6208778 , 0.12MB , pdf

No invitation to tender text is available for this product.
