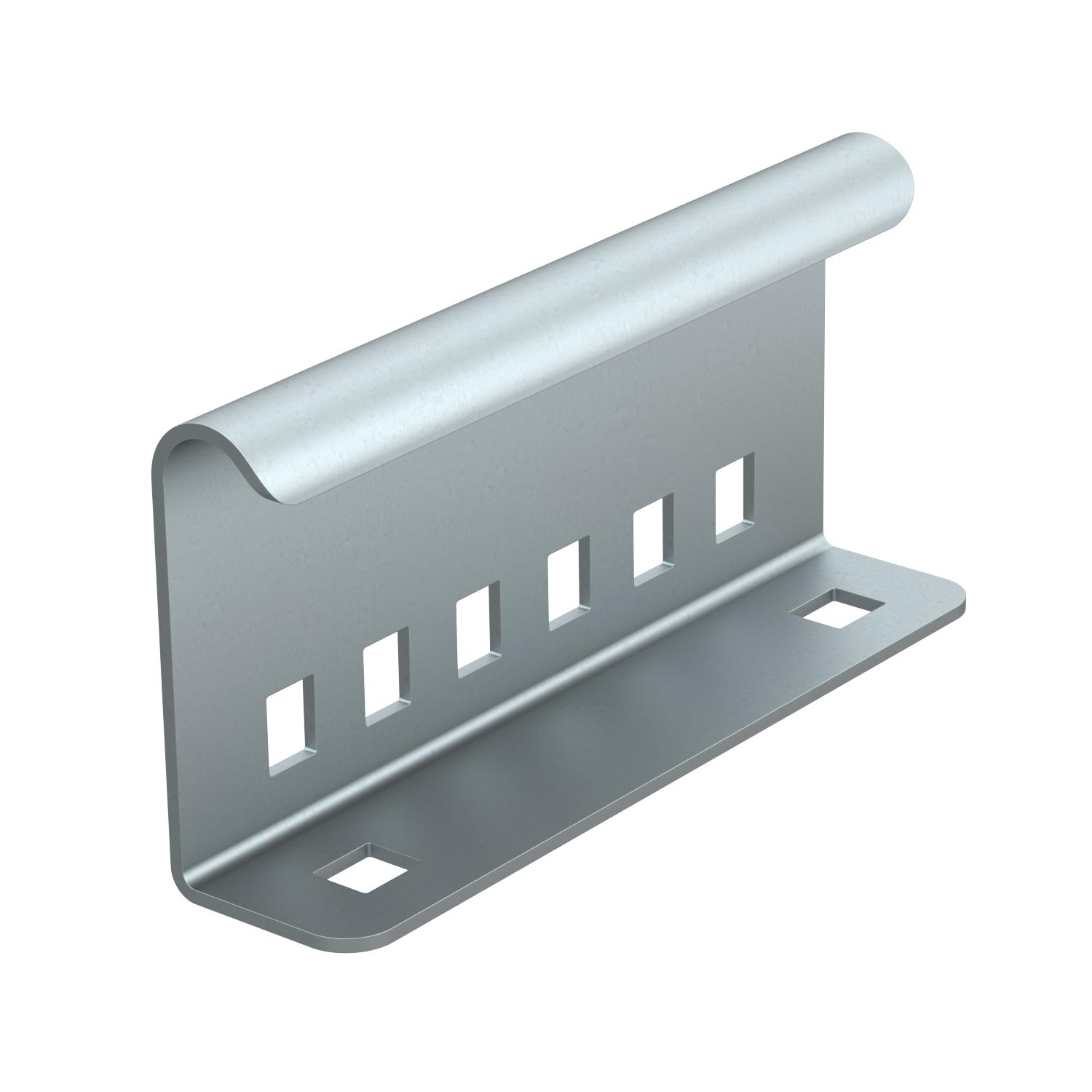

External connector
Item no. 6208770 | EAN 4012196960262
- Product description
-
Product descriptionExternal connector for mechanical connection of cable ladder sections for routing types with cable ladders for the maintenance of electrical function to DIN 4102 Part 12. Including bolts.
-
- Technical data
-
Technical data

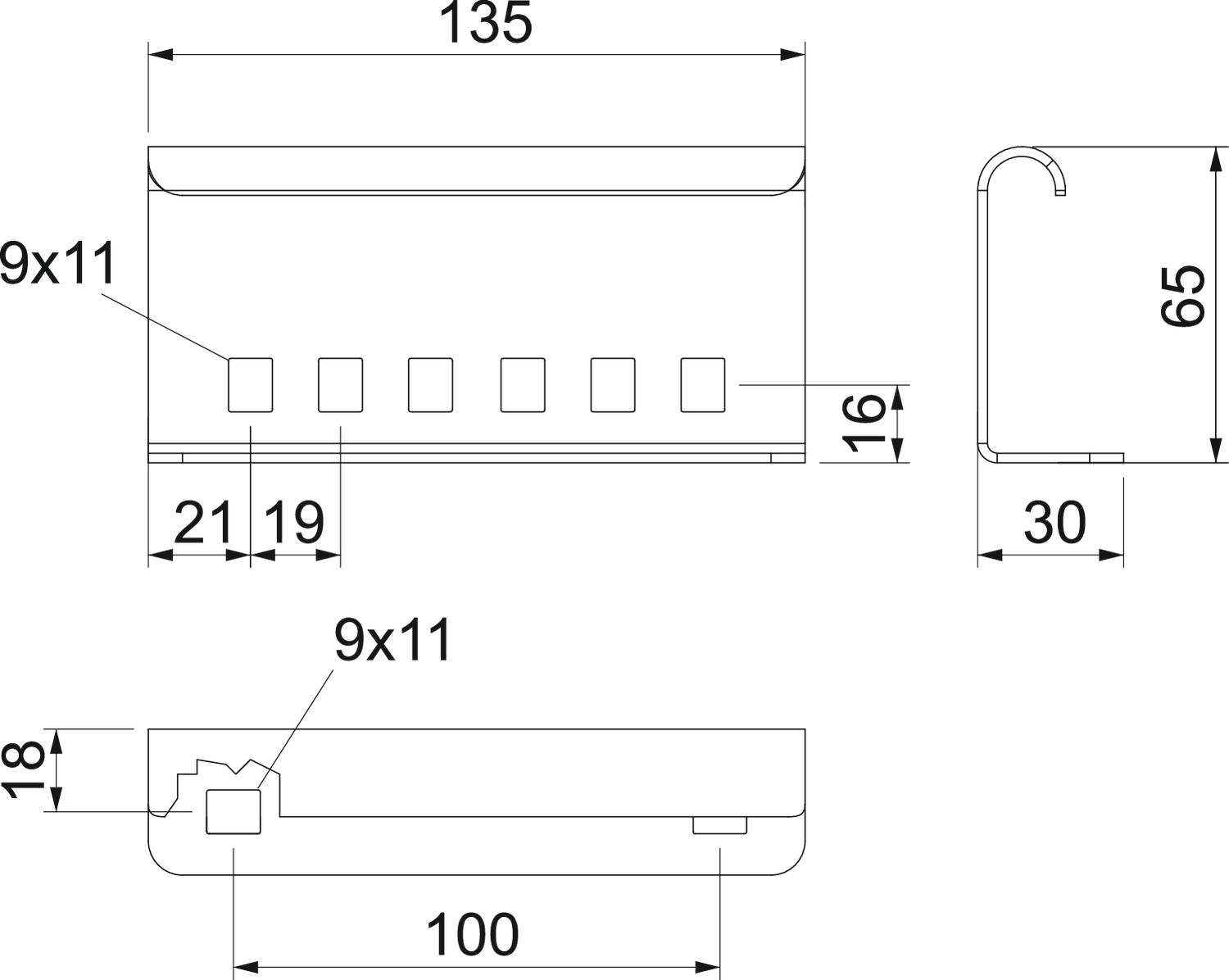

Adjustable connector, horizontal no Articulated connector, vertical no Connection type Screw connector Dimension 135x65x30 Height 65 mm Length 135 mm Maintain electrical functions yes Material Steel Plate thickness 2 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray no Suitable for cable tray system height 65 mm Suitable for mesh cable tray no Surface Strip galvanized Version for Straight connector Wide-span version no Width 30 mm - All types
- Downloads
-
Data sheet AVL 60 FS / 6208770 , 0.24MB , pdfBrochure Brochure The Experts , 2.10MB , pdfEU declaration of conformity AVL 60 FS / 6208770 , 0.11MB , pdfREACH Declaration of conformity AVL 60 FS / 6208770 , 0.12MB , pdfRoHS Declaration of conformity AVL 60 FS / 6208770 , 0.12MB , pdfNo invitation to tender text is available for this product.
