External corner cover, sheet steel 76.5 | Pure white; RAL 9010
morepic-1 morepic-2 video-1

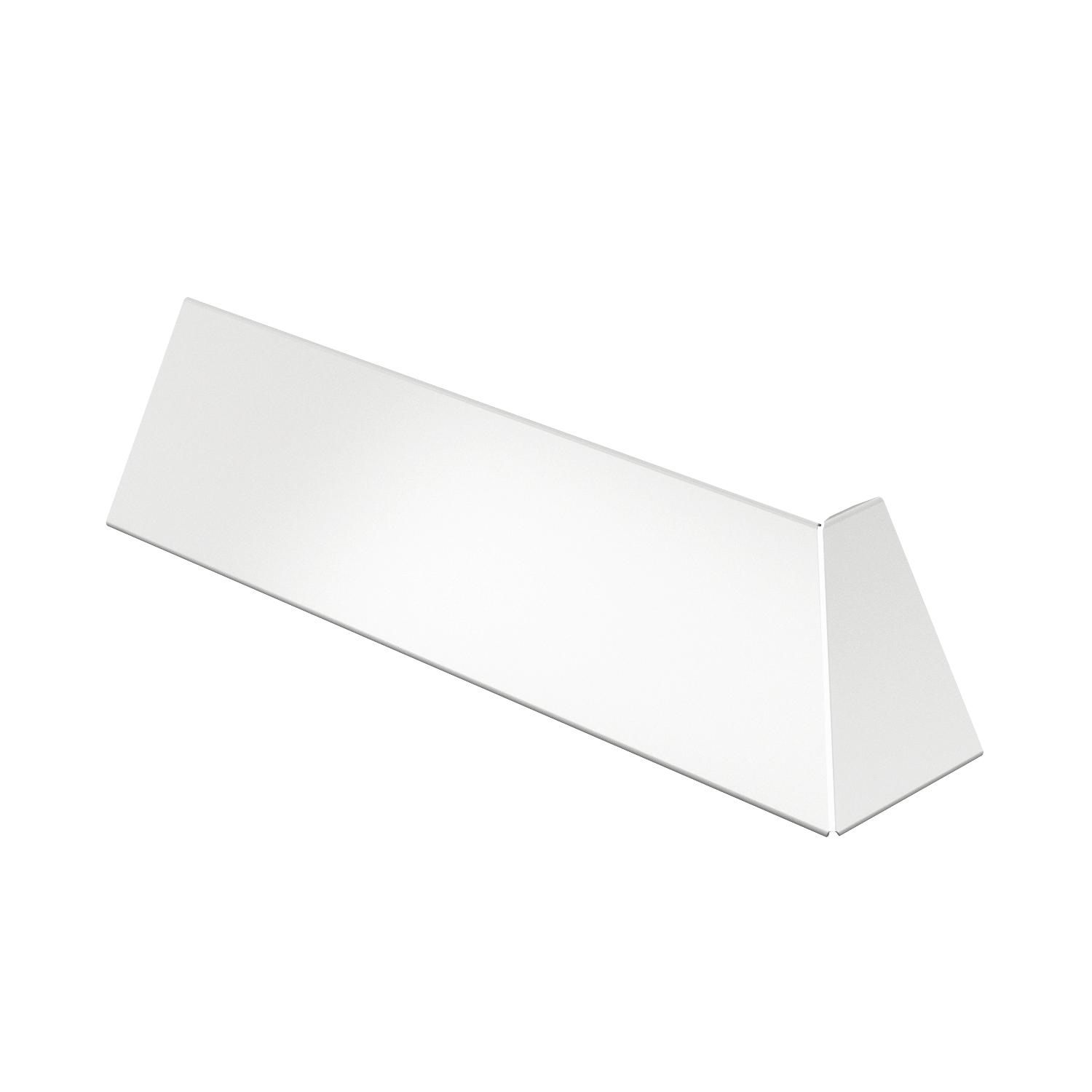

External corner cover, sheet steel

Item no. 6287050 | EAN 4012195144700

6287050 / AOP3S80RW
76.5 mm
Pure white; RAL 9010
Product description
Product description
Cover for closing external corners.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Pure white; RAL 9010
Cover mounting type Internal

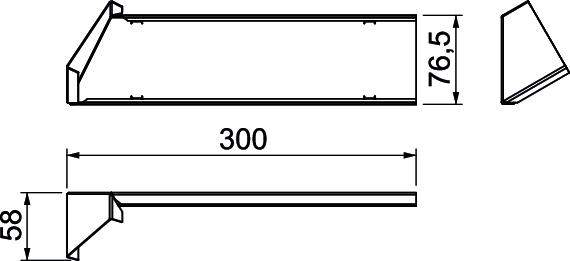

Dimension 12x76,5x300
Halogen-free yes
Height 12 mm
Length 300 mm
Material Steel
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -25 °C
Protection rating IP30
Protection rating IK code IK10
Protective film yes
Width 76,5 mm
All types

All types

Types Width Colour Item no. Quantity SSU
AOP3S80RW 76.5 mm Pure white; RAL 9010 6287050
1 piece
Downloads

Download

Download

EU declaration of conformity AOP3S80RW / 6287050 , 0.13MB , pdf
Download
UK Declaration of Conformity AOP3S80RW / 6287050 , 0.14MB , pdf
Download
REACH Declaration of conformity AOP3S80RW / 6287050 , 0.12MB , pdf
Download
RoHS Declaration of conformity AOP3S80RW / 6287050 , 0.12MB , pdf
Download

Download

No invitation to tender text is available for this product.
