External corner cover, smooth 76.5 | Cream; RAL 9001

morepic-1

morepic-2

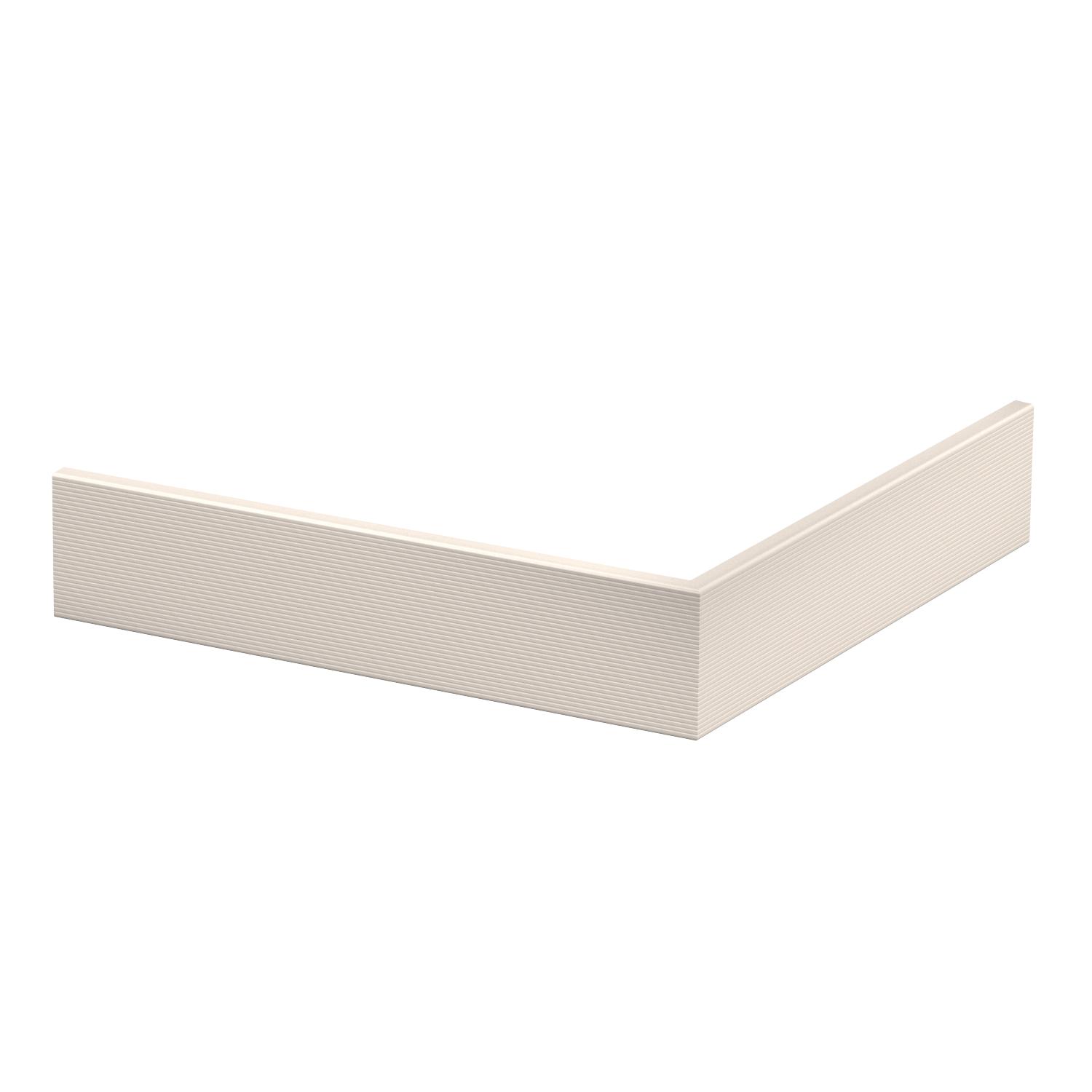

External corner cover, smooth

Item no. 6274791 | EAN 4012195657347

Item no. / Types

Width	76.5 mm

Colour

Product description

Product description

PVC external corner cover, smooth surface.

Technical data

Technical data

Colour	Cream; RAL 9001
Cover mounting type	Internal
Halogen-free	no
Height	12 mm
Length	200 mm
Material	Polyvinylchloride

Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-15 °C
Protection rating	IP30
Protection rating IK code	IK08
Protective film	yes
Width	76,5 mm

All types

All types

Types	Width	Colour	Item no.	Quantity	SSU
GK-OTGARW	76.5 mm	Pure white; RAL 9010	6274790	piece	2 piece
GK-OTGACW	76.5 mm	Cream; RAL 9001	6274791	piece	2 piece
GK-OTGALGR	76.5 mm	Light grey; RAL 7035	6274792	piece	2 piece
GK-OTGAGR	76.5 mm	Stone grey; RAL 7030	6274796	piece	2 piece

Downloads

Data sheet GK-OTGACW / 6274791 , 0.22MB , pdf

Catalogue Geräteeinbaukanäle und Säulen , 28.91MB , pdf

EU declaration of conformity GK-OTGACW / 6274791 , 0.13MB , pdf

UK Declaration of Conformity GK-OTGACW / 6274791 , 0.14MB , pdf

Download

Label approval VDE symbol approval, Rapid 80 plastic device installation duct systems , 0.11MB , pdf

Download

Selection aid Overview, Rapid 80 device installation duct, plastic , 2.00MB , pdf

Safety data sheet PVC_Material data , 0.02MB , pdf

Product graphic GK-OTGACW / 6274791, 67.51 kB, jpg

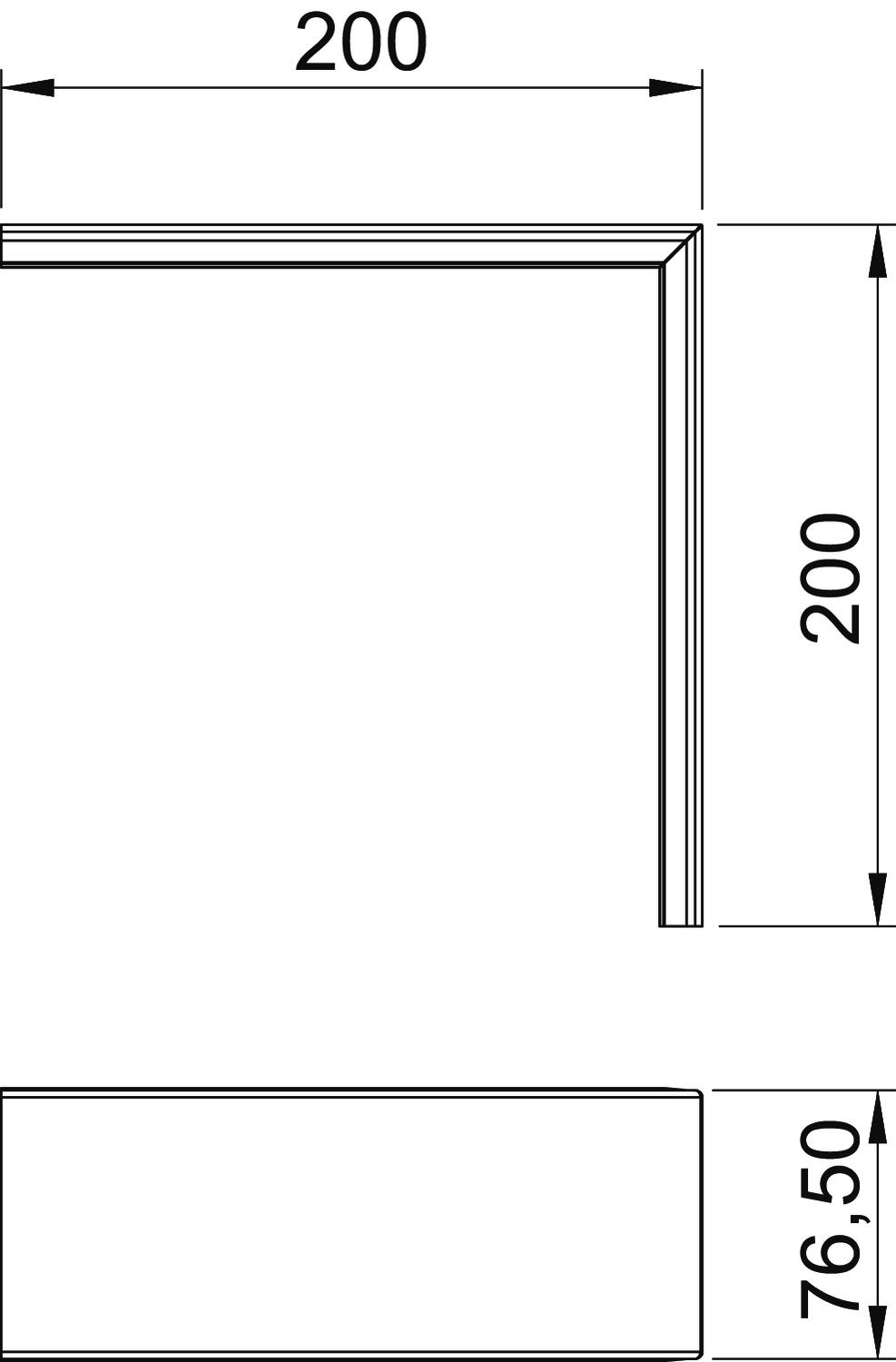

Scale drawing GK-OTGACW / 6274791, 47.48 kB, jpg

No invitation to tender text is available for this product.

6274791_KSTP1.stp, 127.80 kB
