External corner cover, smooth 76.5 | Pure white; RAL 9010
morepic-1 morepic-2

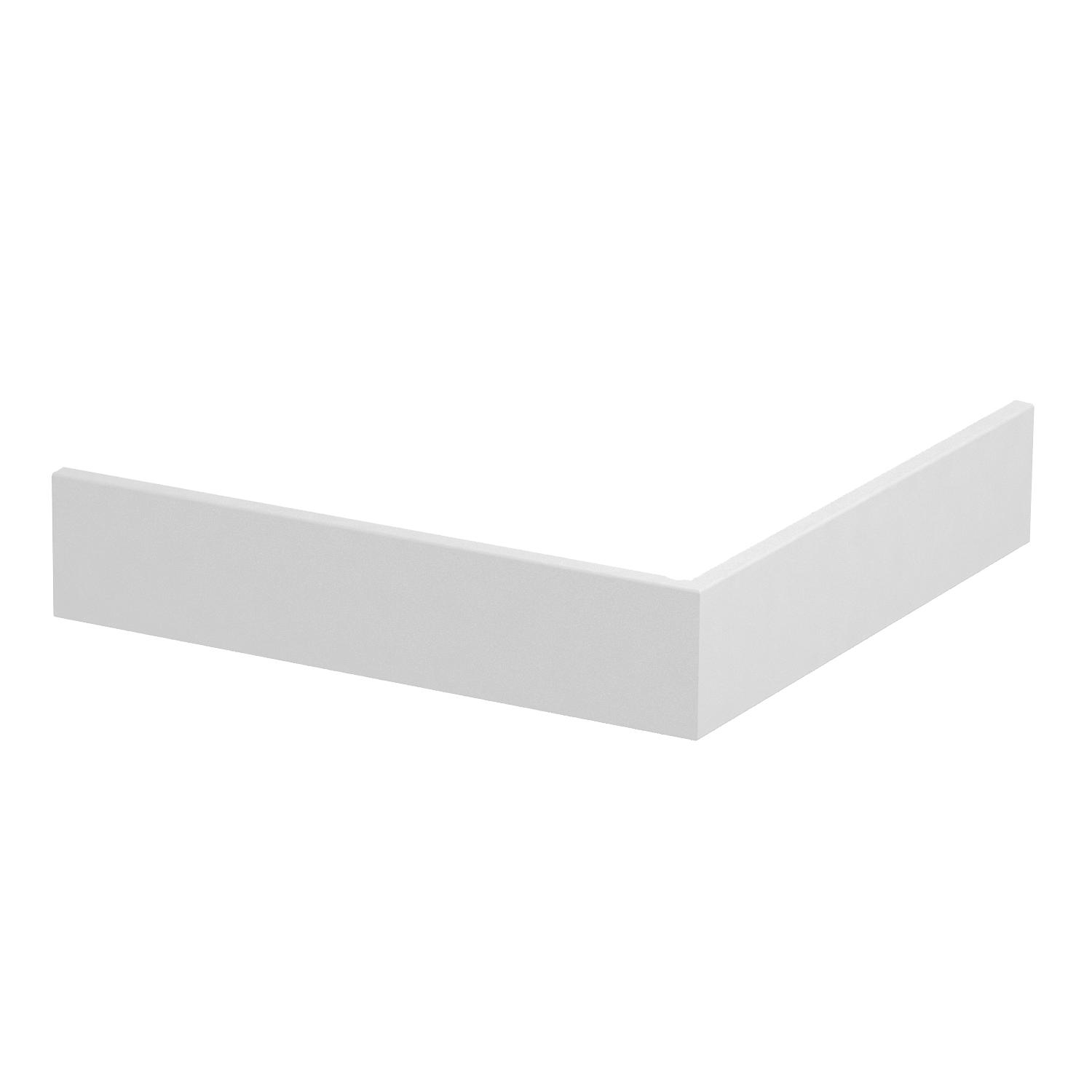

External corner cover, smooth

Item no. 6114230 | EAN 4012196450893

6114230 / GKH-OTGARW
76.5 mm
Pure white; RAL 9010
Product description
Product description
PC/ABS external corner cover, smooth surface.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Pure white; RAL 9010
Cover mounting type Internal
Halogen-free yes
Height 12 mm
Length 200 mm
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -15 °C
Protection rating IP30
Protection rating IK code IK08
Protective film yes
Width 76,5 mm
All types

All types

Types Width Colour Item no. Quantity SSU
GKH-OTGARW 76.5 mm Pure white; RAL 9010 6114230
2 piece
Downloads

Download

Download

EU declaration of conformity GKH-OTGARW / 6114230 , 0.13MB , pdf
Download
UK Declaration of Conformity GKH-OTGARW / 6114230 , 0.14MB , pdf
Download
REACH Declaration of conformity GKH-OTGARW / 6114230 , 0.12MB , pdf
Download
RoHS Declaration of conformity GKH-OTGARW / 6114230 , 0.12MB , pdf
Download

Download

No invitation to tender text is available for this product.
