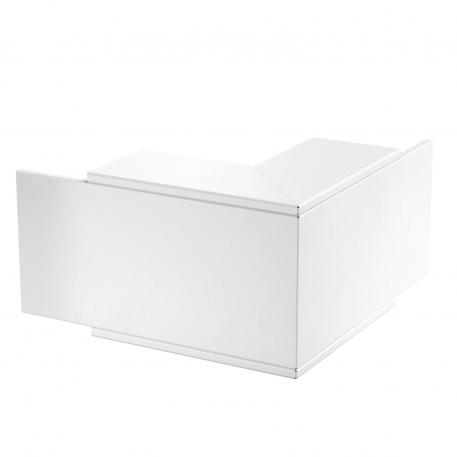

External corner, duct height 120 mm, pure white
Item no. 7218048 | EAN 4012197358396
- Product description
-
Product description
External corner with intumescent fire protection mesh for PYROLINE® Rapid PLM installation duct. Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. The cover is snapped on without tools, allowing rapid inspection and retroassignment. The cover overhang allows offset cover mounting for continuous equipotential bonding of the entire duct section.
-
- Technical data
-
Technical data
Angle of the bend 90 ° Colour Pure white; RAL 9010 Cover fastening Miscellaneous Dimension 370x200x370 Jacketing Steel Material Steel Number of flammable sides 4 Partitions possible no Surface Powder-coated Usable cross-section 18500 mm² With perforation yes Dimensions

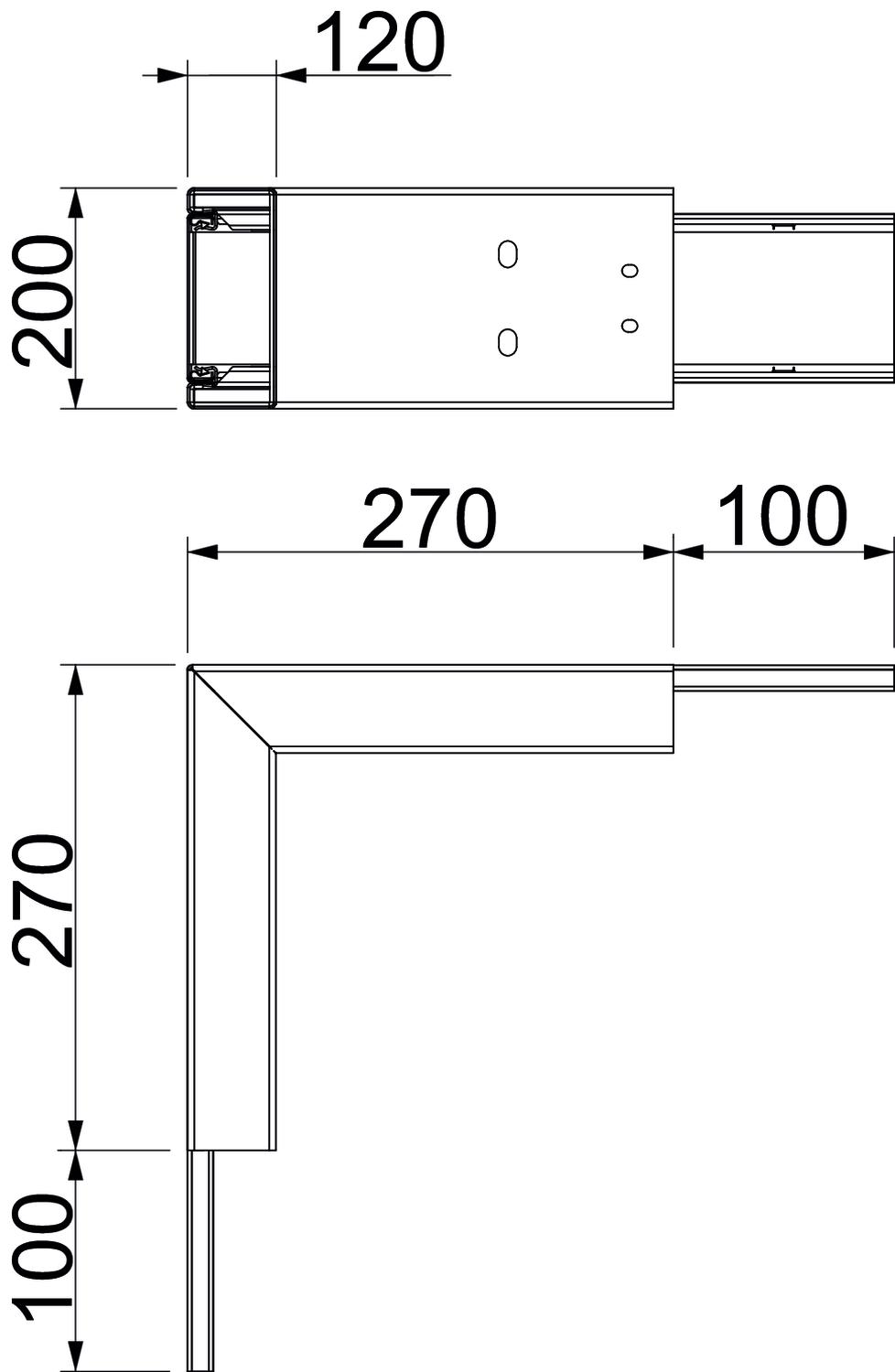

Dimension A 270 mm Dimension B 200 mm Dimension H 120 mm - All types
- Downloads
-
Data sheet PLM EC 1220 RW / 7218048 , 0.24MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfApproval certificate Fire protection ducts PYROLINE® Rapid PLM , 2.15MB , pdfSafety data sheet Insulation forming material FSB , 0.05MB , pdfNo invitation to tender text is available for this product.
