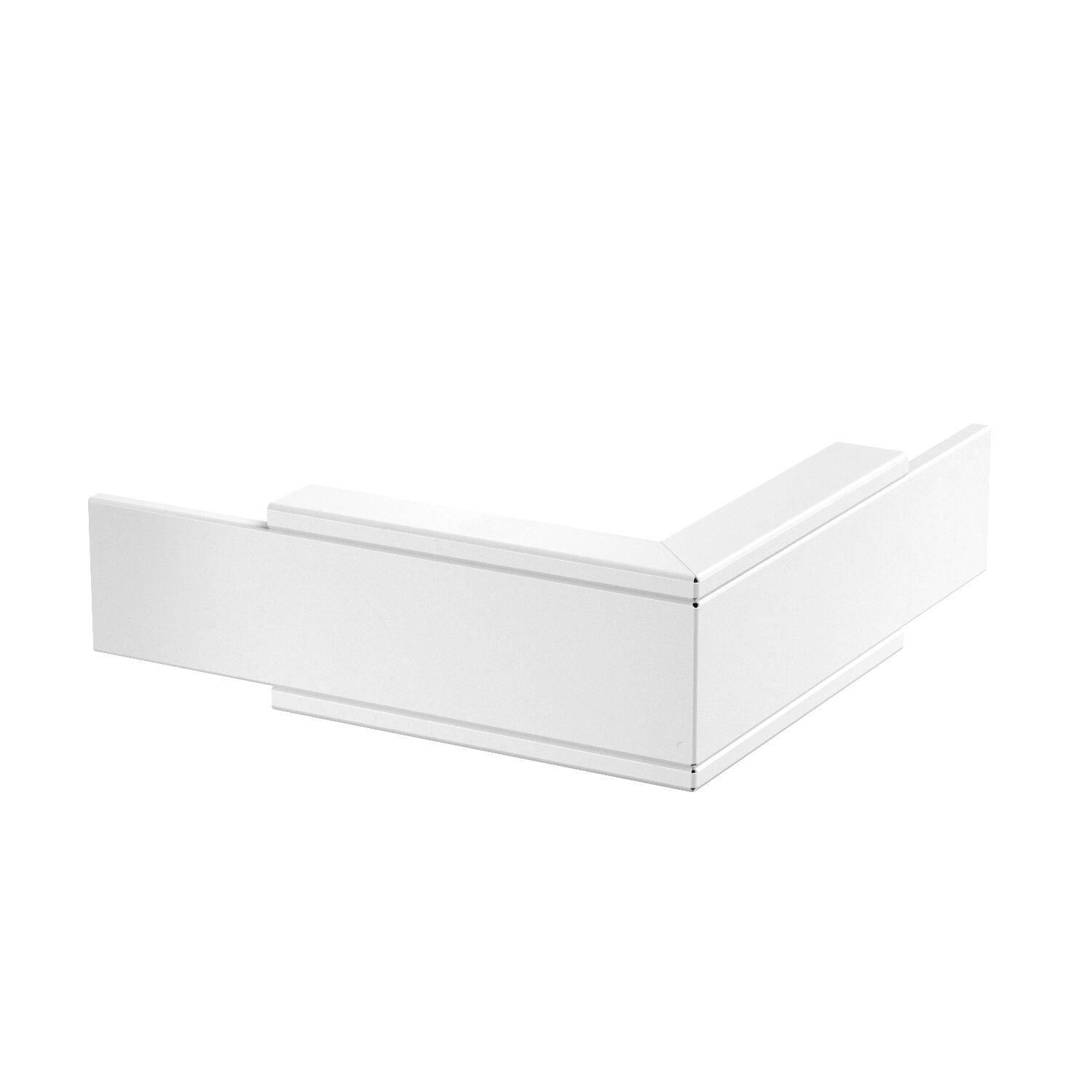

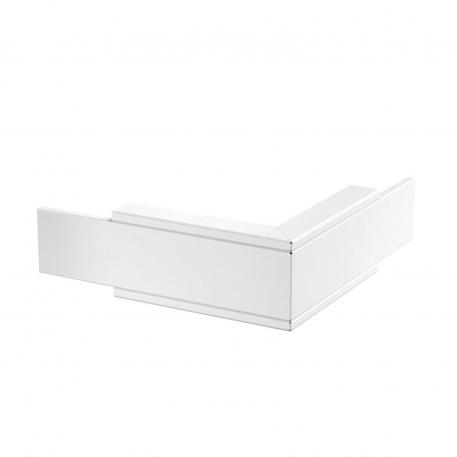

External corner, duct height 40 mm, pure white

Item no. 7218040 | EAN 4012197358358

7218040 / PLM EC 0410 RW

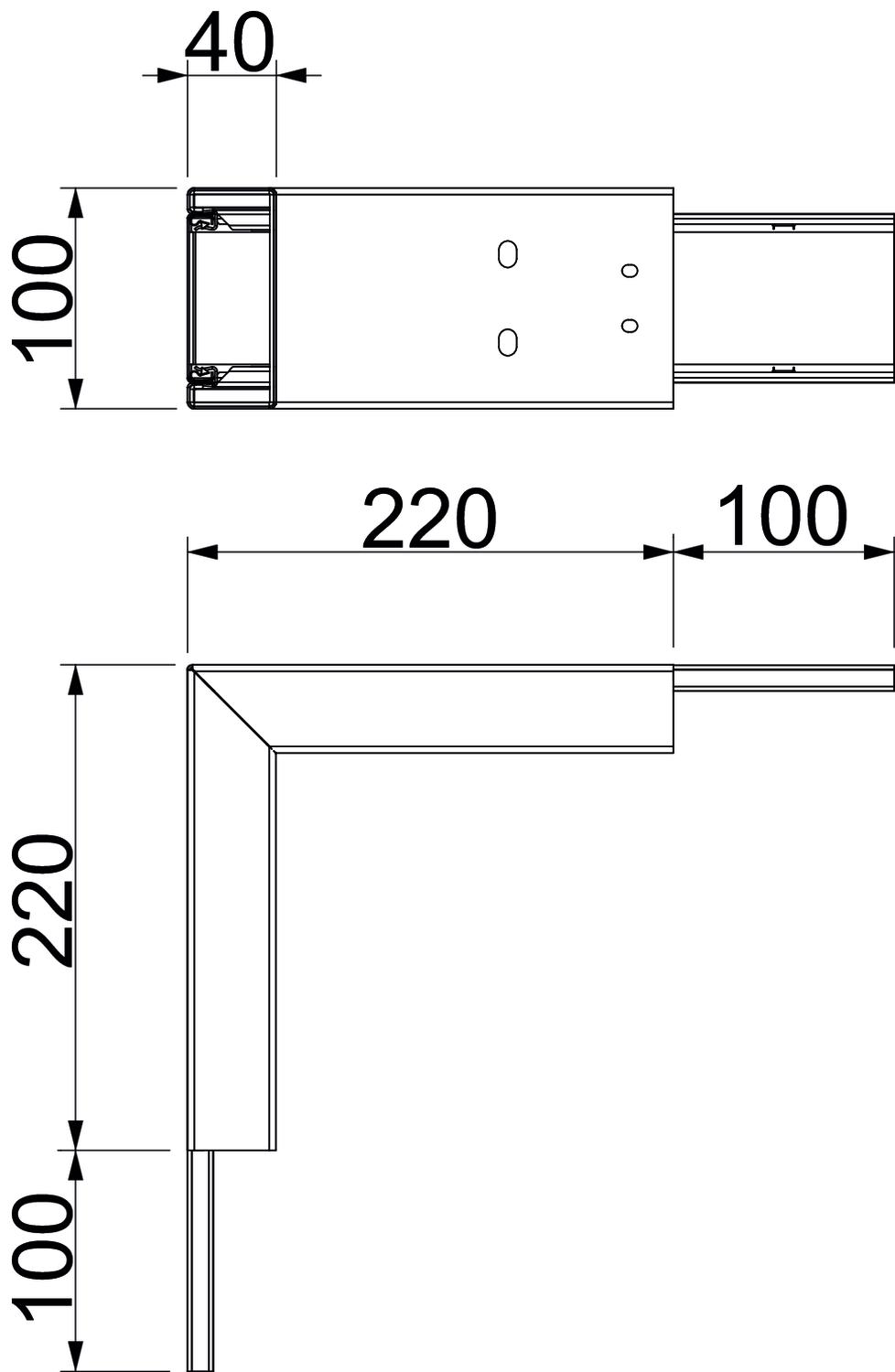

220 mm
100 mm
40 mm
Pure white; RAL 9010
Product description
Product description
External corner with intumescent fire protection mesh for PYROLINE® Rapid PLM installation duct. Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. The cover is snapped on without tools, allowing rapid inspection and retroassignment. The cover overhang allows offset cover mounting for continuous equipotential bonding of the entire duct section.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Angle of the bend 90 °
Colour Pure white; RAL 9010
Cover fastening Miscellaneous
Dimension 320x100x320
Dimension A 220 mm
Dimension B 100 mm
Dimension H 40 mm
Jacketing Steel
Material Steel
Number of flammable sides 4
Partitions possible no
Surface Powder-coated
Usable cross-section 1780 mm²
With perforation yes
All types

All types

Types Dimension A Dimension B Dimension H Colour Item no. Quantity SSU
PLM EC 0410 RW 220 mm 100 mm 40 mm Pure white; RAL 9010 7218040
6 piece
Downloads

Download

EU declaration of conformity PLM EC 0410 RW / 7218040 , 0.11MB , pdf
Download

No invitation to tender text is available for this product.
