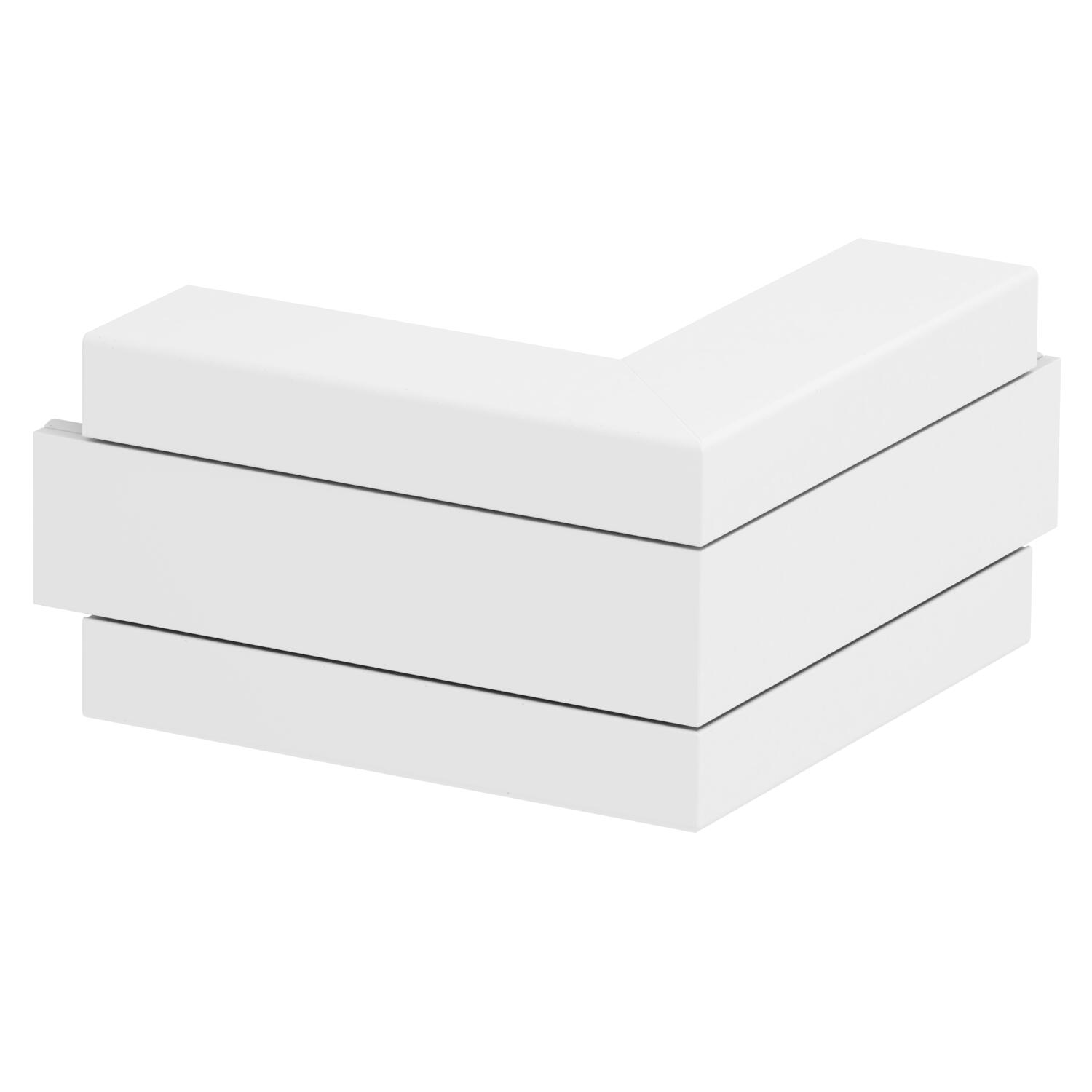

External corner, for device installation trunking Rapid 45-2 type GA-53100
Item no. 6112420 | EAN 4012196417964
- Product description
-
Product description
External corner 90° aluminium for changing the direction of device installation trunking Rapid 45-2 GA...
Note:
For anodised device installation trunking and fittings made from aluminium, light colour differences caused by permitted scatter due to the material and process conditions cannot be avoided (according to DIN 17 611). The 45 mm devices can be clicked in directly. When using PC/ABS hood fittings, there may be colour differences due to the different materials.
-
- Technical data
-
Technical data
Angle range, min. 90 mm Antibacterial treatment no Cable retaining clip no Colour Pure white; RAL 9010 Cover mounting type Internal Cover width 45 mm Dimension 53x100x175 Duct connector no for duct width 100 mm for trunking height 53 mm Halogen-free yes Material Aluminium Mounting perforation in base no Number of covers 1 Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Protection rating IP30 Protection rating IK code IK10 Protective film yes Symmetrical yes Version for Base and cover Dimensions

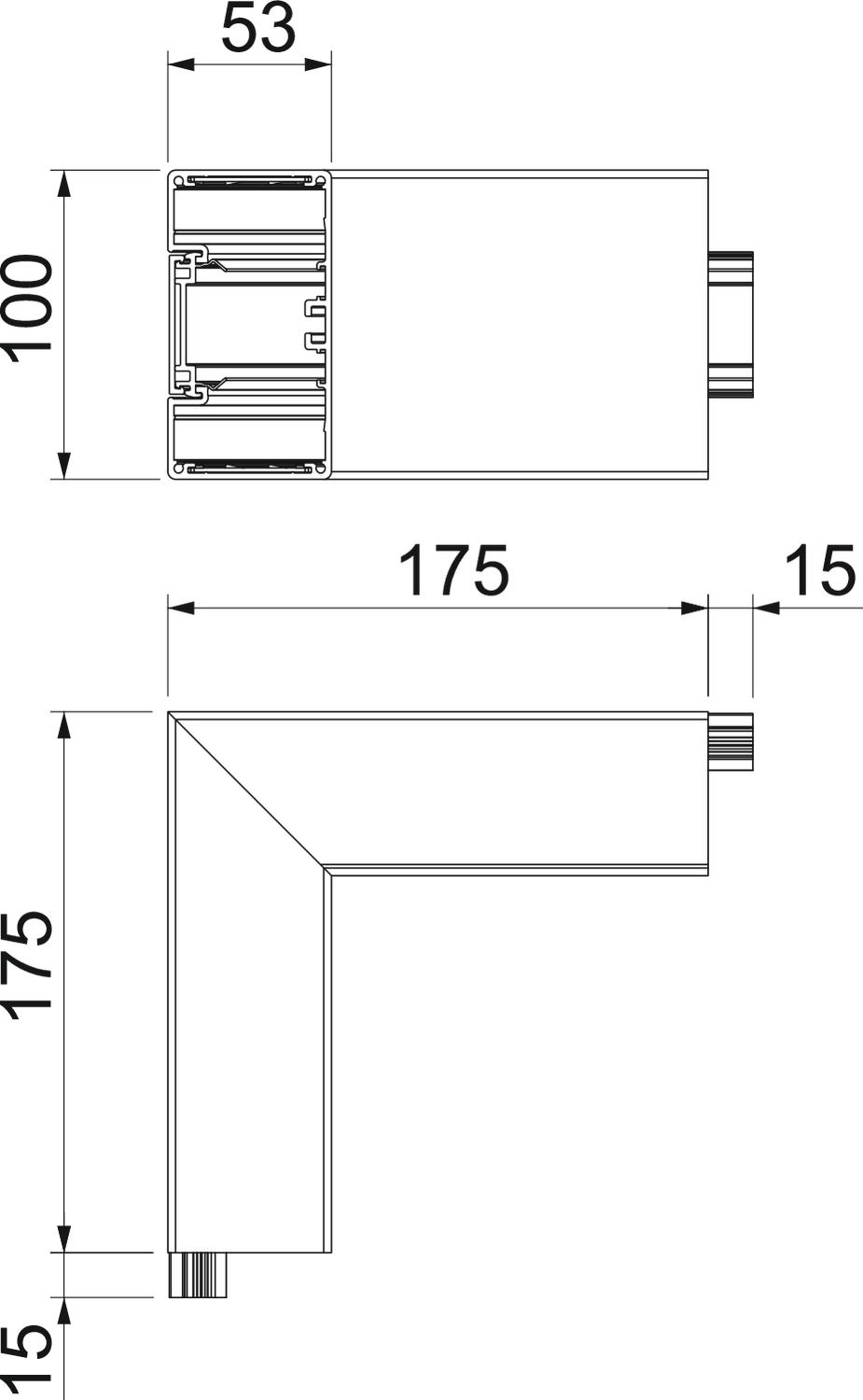

Height 53 mm Length 175 mm Width 100 mm - All types
- Downloads
-
Data sheet GA-AS53100RW / 6112420 , 0.30MB , pdfDeclaration of conformity GA-AS53100RW / 6112420 , 0.13MB , pdfUK Declaration of Conformity GA-AS53100RW / 6112420 , 0.14MB , pdfREACH Declaration of conformity GA-AS53100RW / 6112420 , 0.12MB , pdfRoHS Declaration of conformity GA-AS53100RW / 6112420 , 0.28MB , pdfLabel approval VDE symbol approval, Rapid 45-2 GA , 0.20MB , pdfNo invitation to tender text is available for this product.
