External corner Signa Base AE 70110

Item no. 6132741 | EAN 4012196717910

Product description

Product description

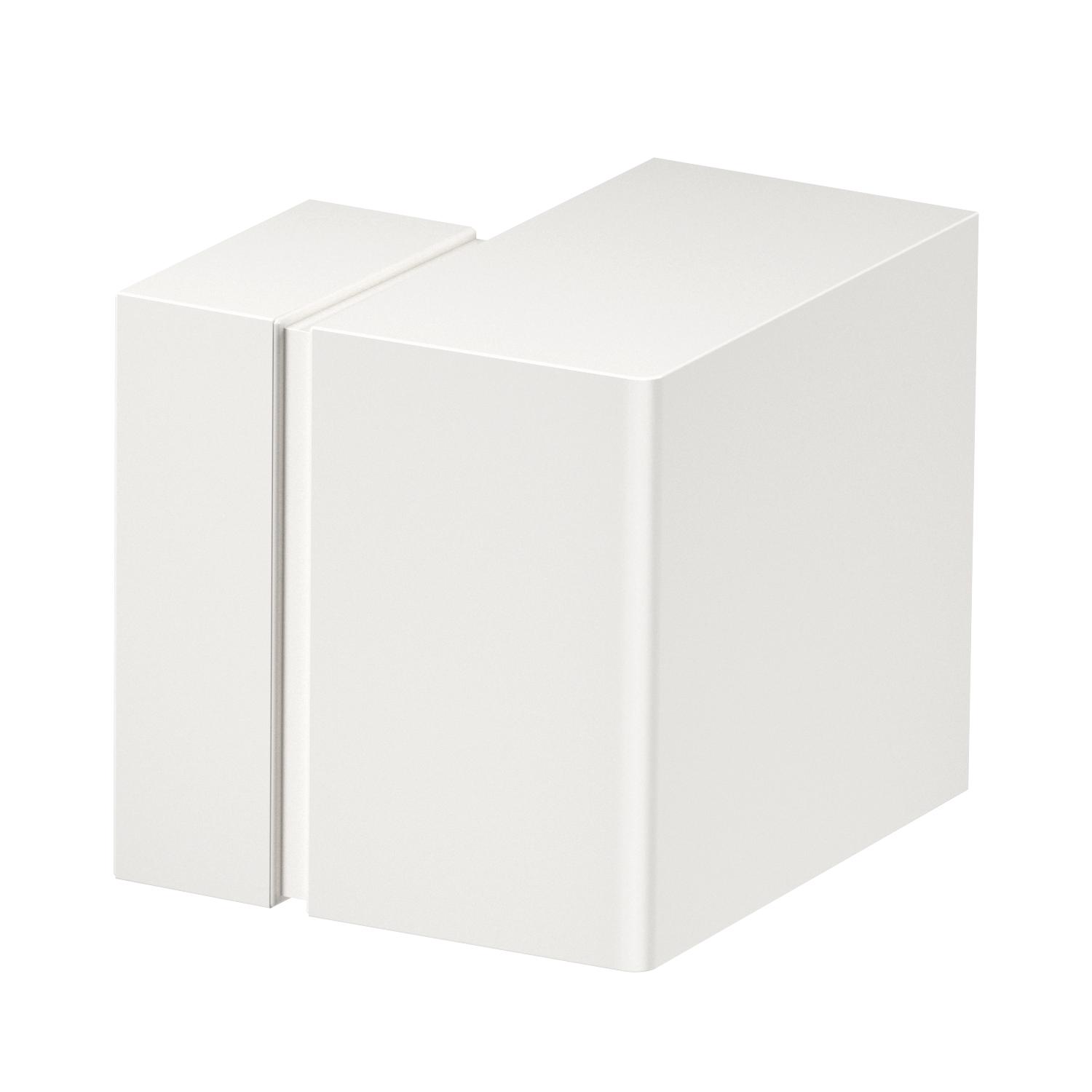

External corner as a fitting for changing the direction of the Signa Base device installation trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Angle range, max. 93 mm
Angle range, min. 85 mm
Antibacterial treatment no
Cable retaining clip no
Colour Pure white; RAL 9010
Cover mounting type Cross-over
Dimension 119x137x120
Duct connector no
Halogen-free yes
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Mounting perforation in base no
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP40
Protection rating IK code IK07.
Protective film no
Symmetrical no
Version for Hood fitting

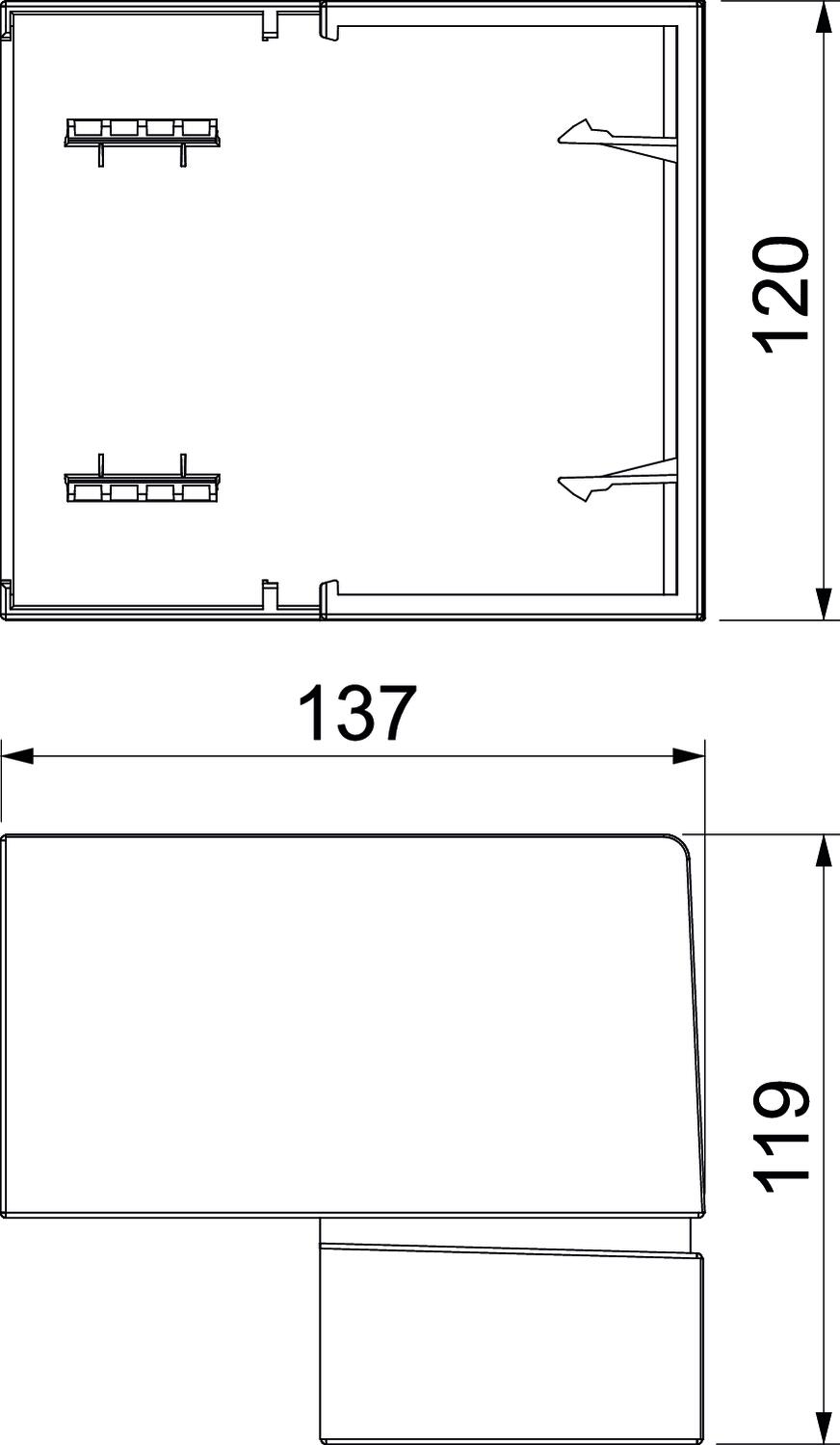

Dimensions

Height 120 mm
Length 119 mm
Width 137 mm
All types

All types

Types Colour Item no. Quantity SSU
BRK AE70110 cws Cream; RAL 9001 6132740
1 piece
BRK AE70110 rws Pure white; RAL 9010 6132741
1 piece
