External corner Signa Base AE 70130 Light grey; RAL 7035

morepic-1

morepic-2

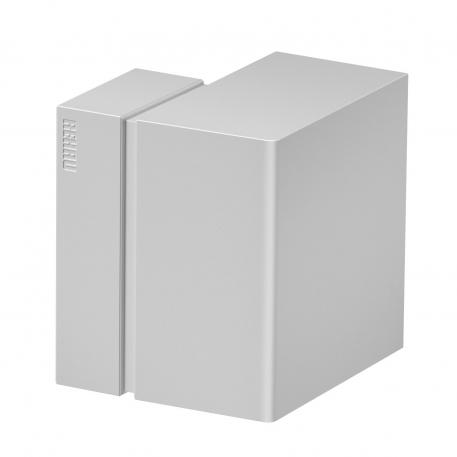

External corner Signa Base AE 70130

Item no. 6132745 | EAN 4012196717941

Item no. / Types

Colour

Product description

Product description

External corner as a fitting for changing the direction of the Signa Base device installation trunking.

Technical data

Technical data

Angle range, max.	93 mm
Angle range, min.	85 mm
Antibacterial treatment	no
Cable retaining clip	no
Colour	Light grey; RAL 7035
Cover mounting type	Cross-over
Duct connector	no
Halogen-free	yes
Height	140 mm
Length	119 mm

Material	Polycarbonate/Acrylnitrile-butadiene-styrene
Mounting perforation in base	no
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP40
Protection rating IK code	IK07.
Protective film	no
Symmetrical	no
Version for	Hood fitting
Width	137 mm

All types

All types

Types	Colour	Item no.	Quantity	SSU
BRK AE70130 cws	Cream; RAL 9001	6132743	piece	1 piece
BRK AE70130 rws	Pure white; RAL 9010	6132744	piece	1 piece
BRK AE70130 lgr	Light grey; RAL 7035	6132745	piece	1 piece

Downloads

Data sheet BRK AE70130 lgr / 6132745 , 0.20MB , pdf

Brochure Signa Base device installation trunking , 2.23MB , pdf

EU declaration of conformity BRK AE70130 lgr / 6132745 , 0.10MB , pdf

Label approval VDE symbol approval, SIGNA BASE device installation trunking , 0.25MB , pdf

Download

Mounting instructions Geräteeinbaukanal Signa Base , 15.61MB , pdf

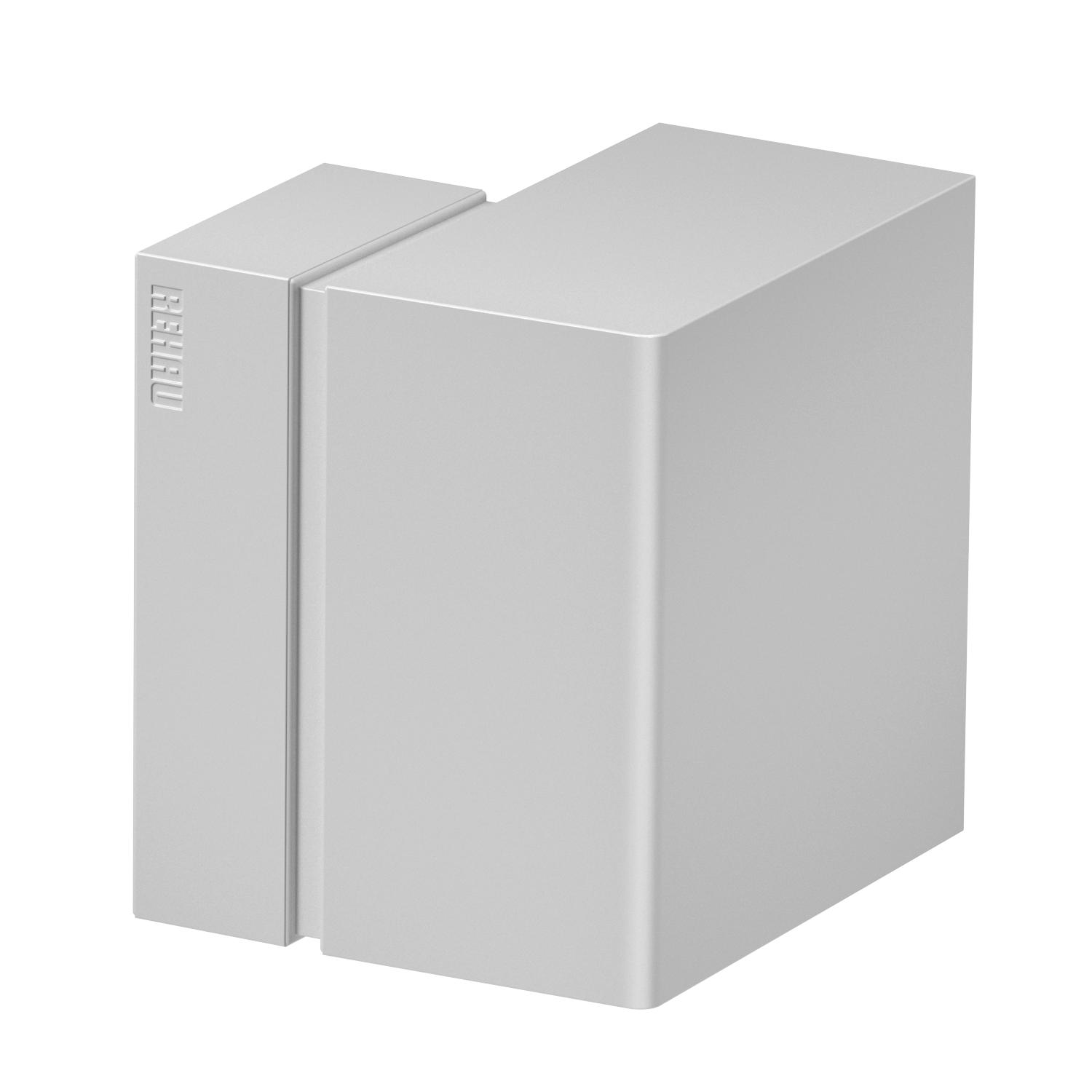

Product graphic BRK AE70130 lgr / 6132745, 44.87 kB, jpg

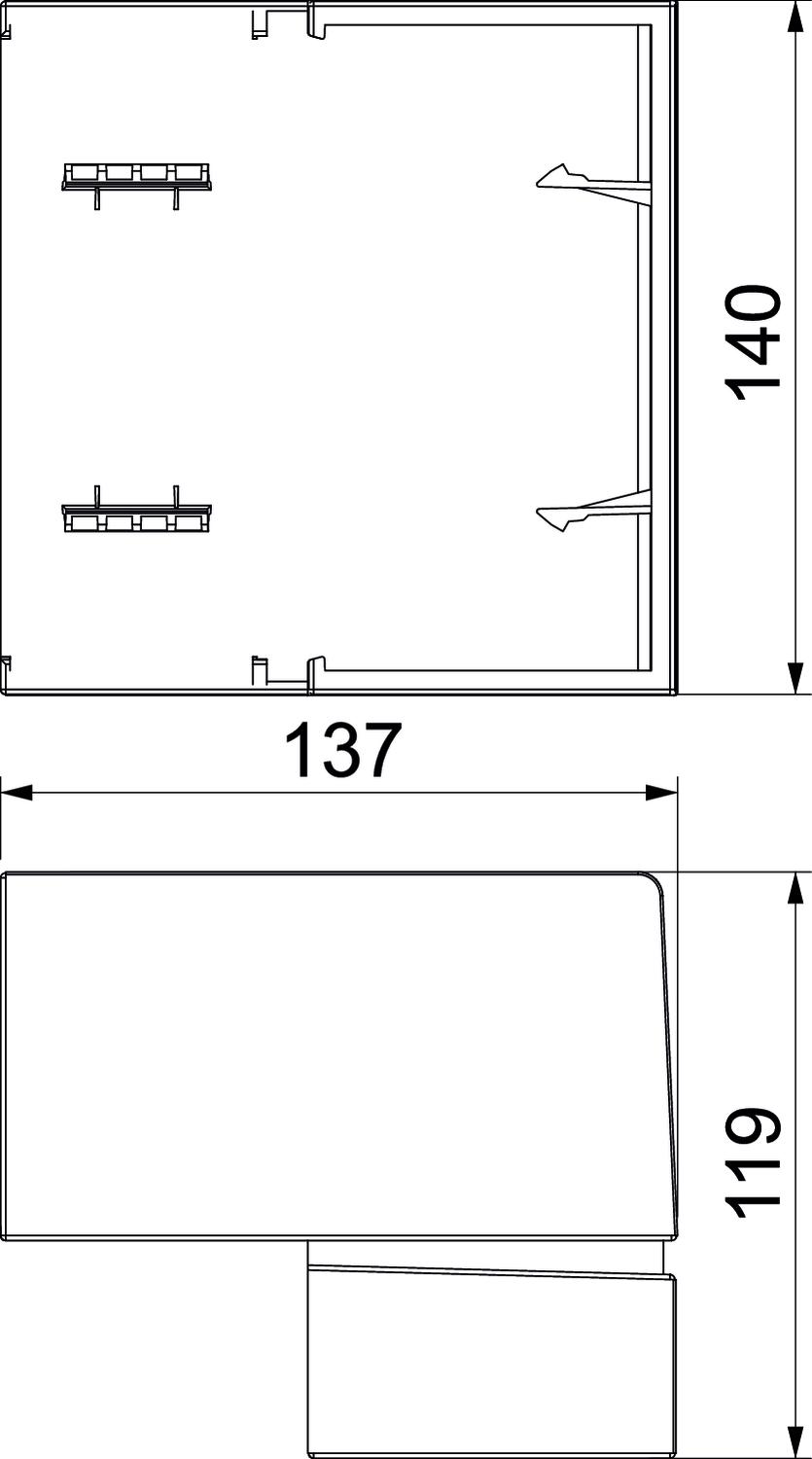

Scale drawing BRK AE70130 lgr / 6132745, 49.86 kB, jpg
