External corner Signa Base AE 70170 Pure white; RAL 9010
morepic-1 morepic-2

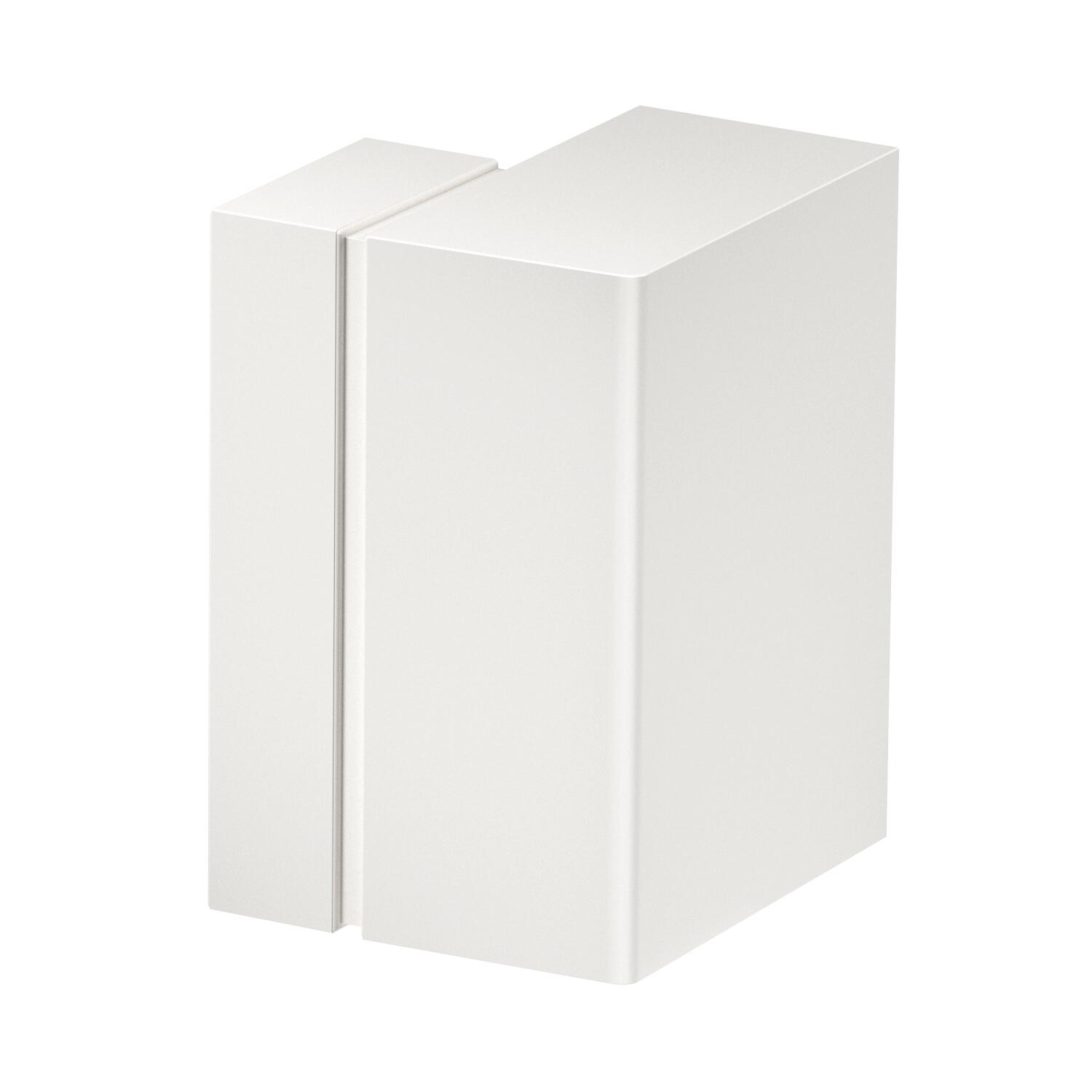

External corner Signa Base AE 70170

Item no. 6132748 | EAN 4012196717965

Product description
Product description
External corner as a fitting for changing the direction of the Signa Base device installation trunking .
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Angle range, max. 93 mm
Angle range, min. 85 mm
Antibacterial treatment no
Cable retaining clip no
Colour Pure white; RAL 9010
Cover mounting type Cross-over

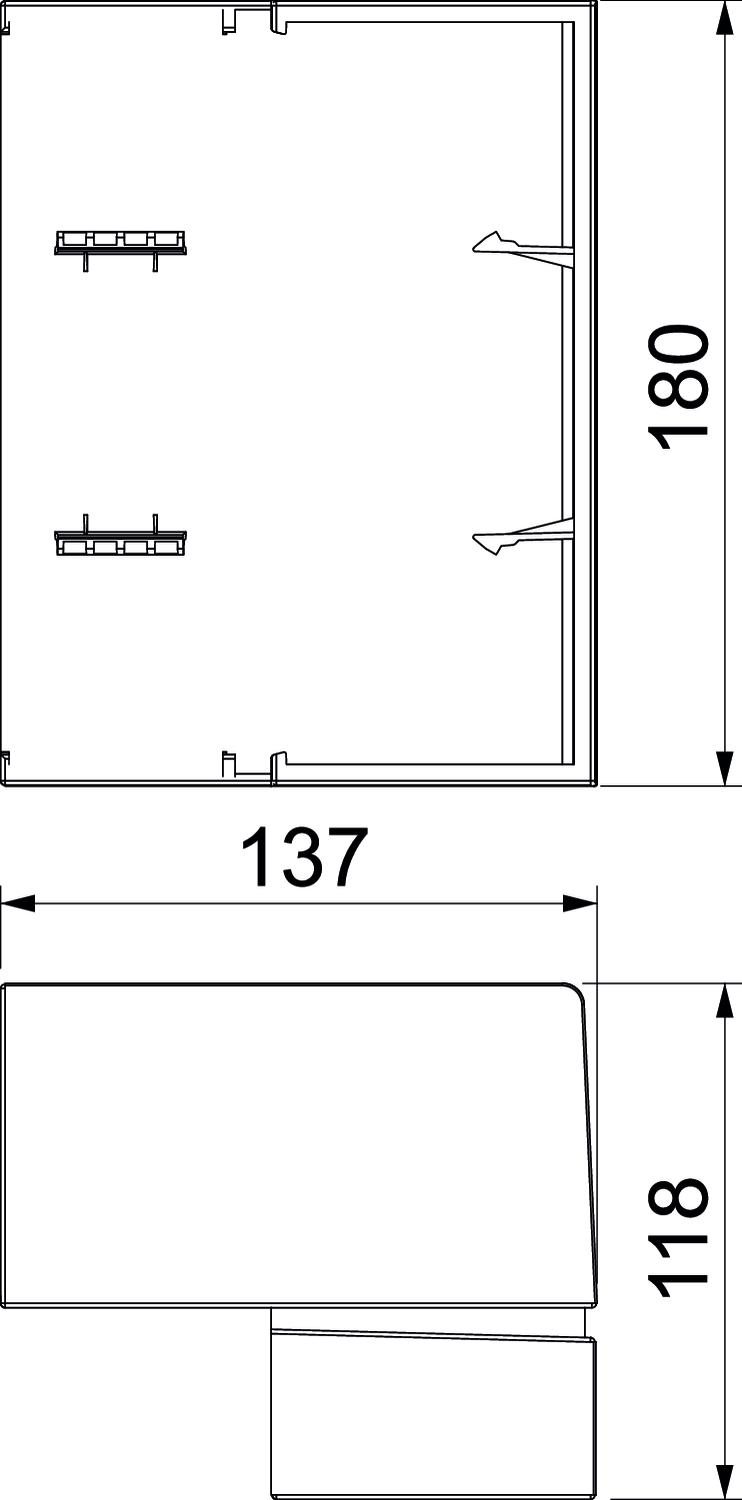

Dimension 118x137x180
Duct connector no
Halogen-free yes
Height 180 mm
Length 118 mm
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Mounting perforation in base no
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP40
Protection rating IK code IK07.
Protective film no
Symmetrical no
Version for Hood fitting
Width 137 mm
All types

All types

Types Colour Item no. Quantity SSU
BRK AE70170 cws Cream; RAL 9001 6132747
4 piece
BRK AE70170 rws Pure white; RAL 9010 6132748
4 piece
BRK AE70170 lgr Light grey; RAL 7035 6132749
4 piece
Downloads

Download

Download

EU declaration of conformity BRK AE70170 rws / 6132748 , 0.10MB , pdf
Download
REACH Declaration of conformity BRK AE70170 rws / 6132748 , 0.12MB , pdf
Download
RoHS Declaration of conformity BRK AE70170 rws / 6132748 , 0.12MB , pdf
Download

Download

Download

No invitation to tender text is available for this product.
