Product description

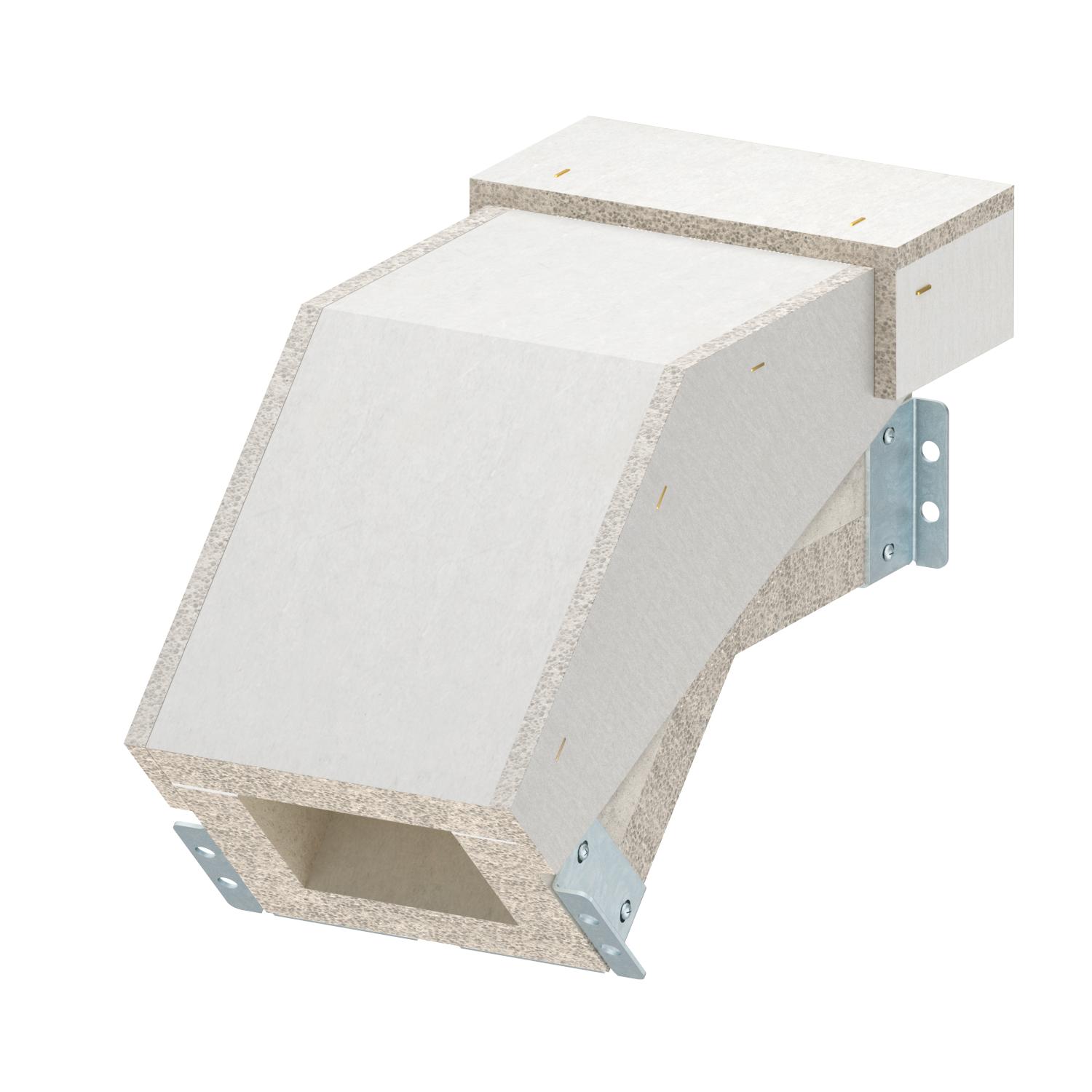

Falling vertical bend for PYROLINE® Con S EI60 fire protection duct, type PLCS D060810, consisting of fibreglass light concrete which is resistant to water and frost for the creation of vertical changes of direction (45°) in the duct. Mounted connectors ensure quick mounting in situ, whilst loosely placed covers ensure quick inspection and reassignment.
Including connection screws and sealing strips.
- Technical data
-
Technical data

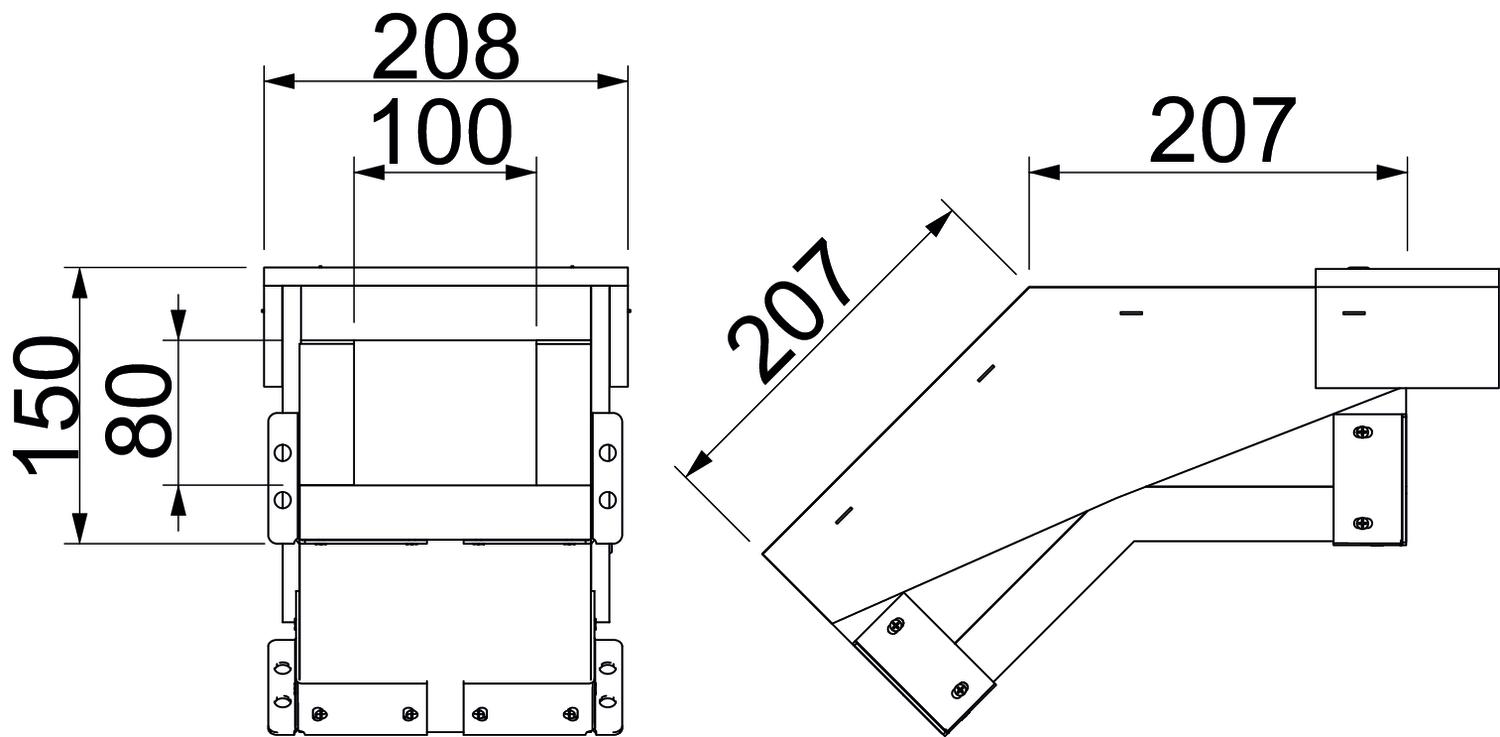

Angle of the bend 45 ° Classification EI − installation duct 60 Colour Grey Cover fastening Loose Dimension 100x80 Dimension b 100 mm Dimension B 208 mm Dimension H 150 mm Dimension h 80 mm Dimension L 207 mm Jacketing Without Material Fibreglass lightweight concrete Material of the insulation Glass-fibre lightweight concrete Number of flammable sides 4 With perforation no - All types
- Downloads
-
Data sheet PLCS VF060810 / 7217940 , 0.23MB , pdfBrochure Brochure The Experts , 2.10MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfDeclaration of conformity PLCS VF060810 / 7217940 , 0.11MB , pdfApproval certificate Fire protection ducts PYROLINE® Con PLC , 1.30MB , pdfMounting instructions Mounting instructions, PYROLINE® Con BSK fire protection duct , 15.07MB , pdfMounting instructions Mounting instructions, PYROLINE® PLC fire protection duct , 14.60MB , pdf
