Falling vertical bend EI60 for PLCS D061220 fire protection duct
Item no. 7217944 | EAN 4012196836840
- Product description
-

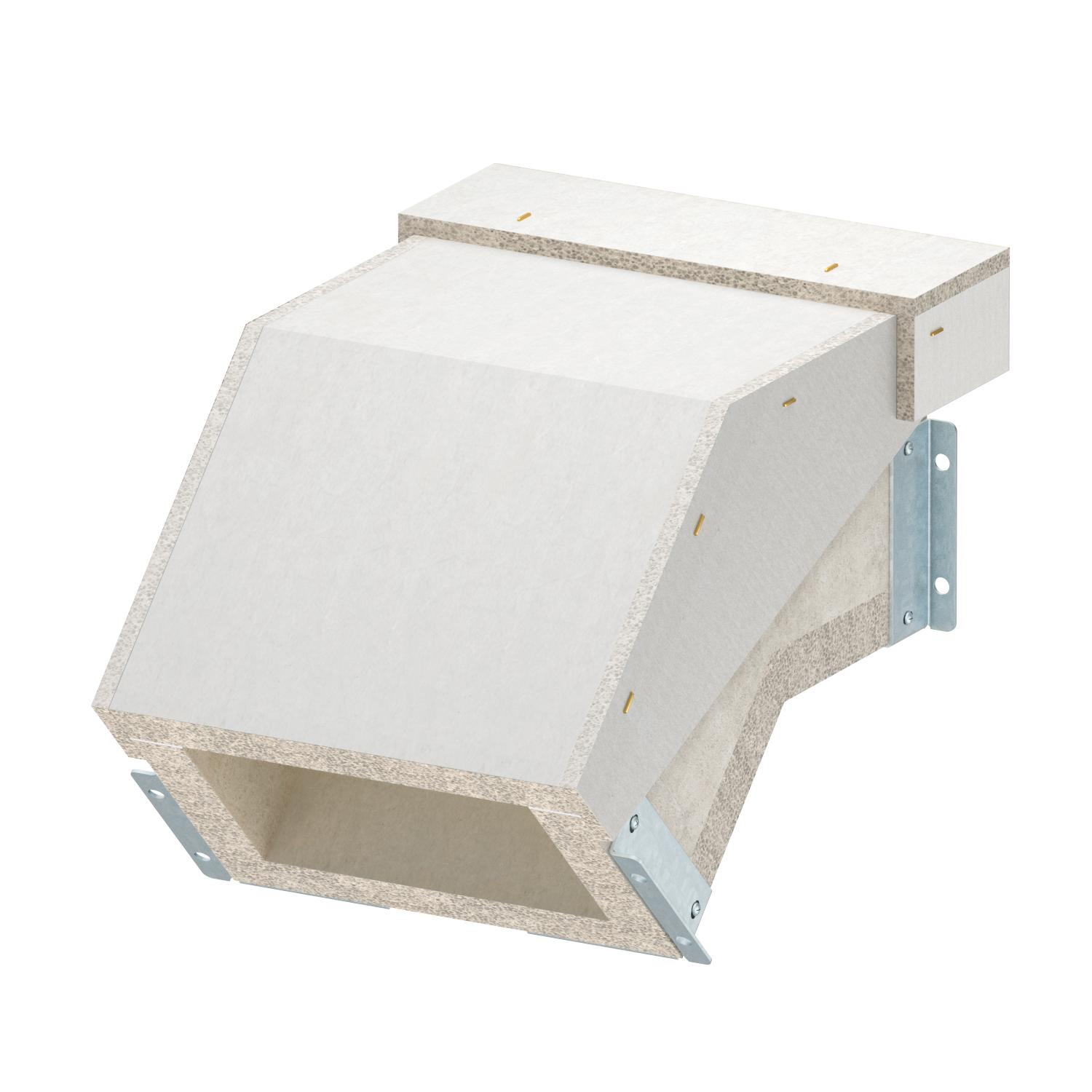

Product descriptionFalling vertical bend for PYROLINE® Con S EI60 fire protection duct, type PLCS D061220, consisting of fibreglass light concrete which is resistant to water and frost for the creation of vertical changes of direction (45°) in the duct. Mounted connectors ensure quick mounting in situ, whilst loosely placed covers ensure quick inspection and reassignment.
Including connection screws and sealing strips.
-
- Technical data
-
Technical data

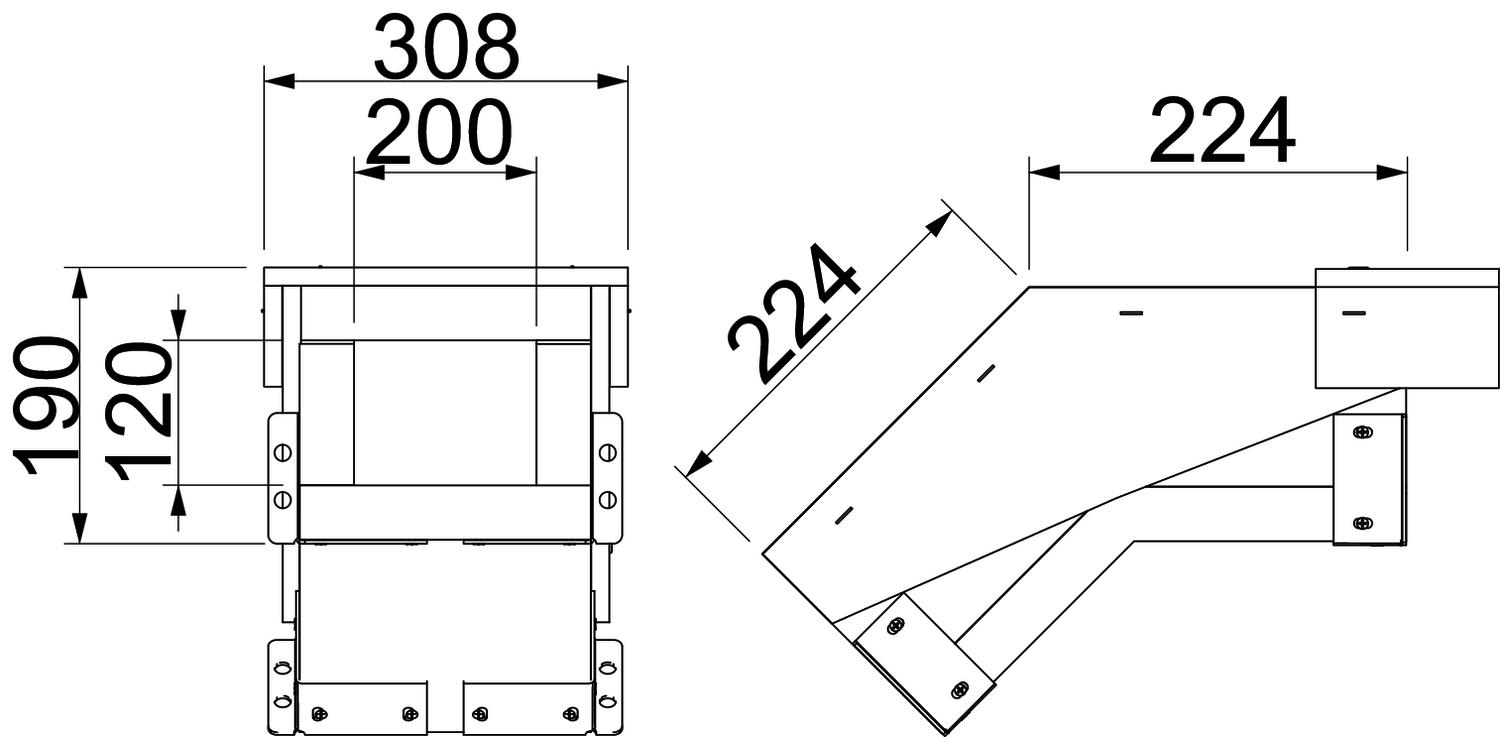

Angle of the bend 45 ° Classification EI − installation duct 60 Colour Grey Cover fastening Loose Dimension 200x120 Dimension B 308 mm Dimension b 200 mm Dimension H 190 mm Dimension h 120 mm Dimension L 224 mm Jacketing Without Material Fibreglass lightweight concrete Material of the insulation Glass-fibre lightweight concrete Number of flammable sides 4 With perforation no - All types
- Downloads
-
Data sheet PLCS VF061220 / 7217944 , 0.17MB , pdfBrochure Brochure The Experts , 2.10MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfEU declaration of conformity PLCS VF061220 / 7217944 , 0.11MB , pdfDeclaration of performance PLCS VF061220 / 7217944 , 0.31MB , pdfApproval certificate Fire protection ducts PYROLINE® Con PLC , 1.30MB , pdfMounting instructions Mounting instructions, PYROLINE® Con BSK fire protection duct , 15.07MB , pdfMounting instructions Mounting instructions, PYROLINE® PLC fire protection duct , 14.60MB , pdfNo invitation to tender text is available for this product.
