Fastening bracket BW US 7 FT
Item no. 6019532 | EAN 4012196653645
- Product description
-

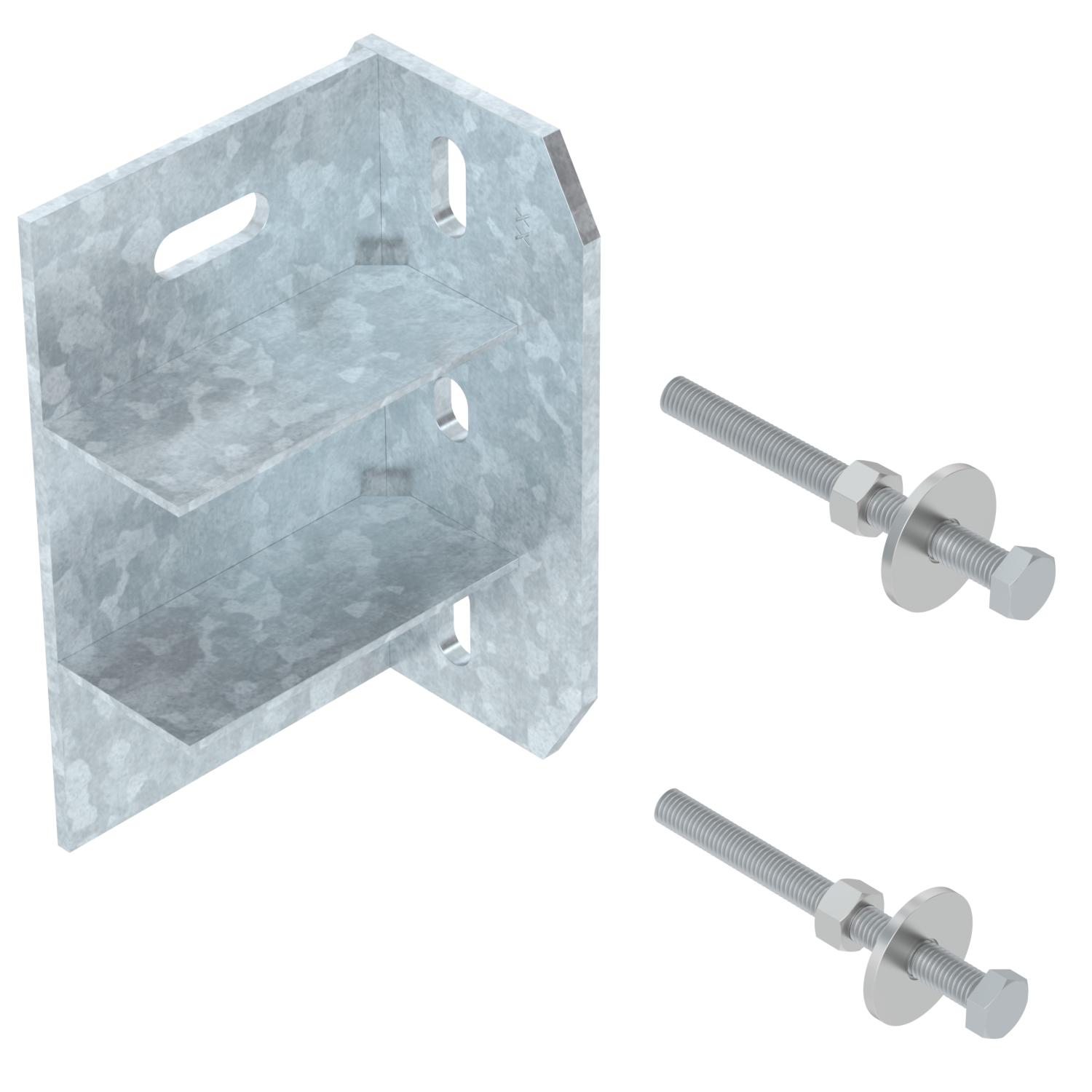

Product descriptionFastening bracket for the creation of individual support structures with U supports.
-
- Technical data
-
Technical data

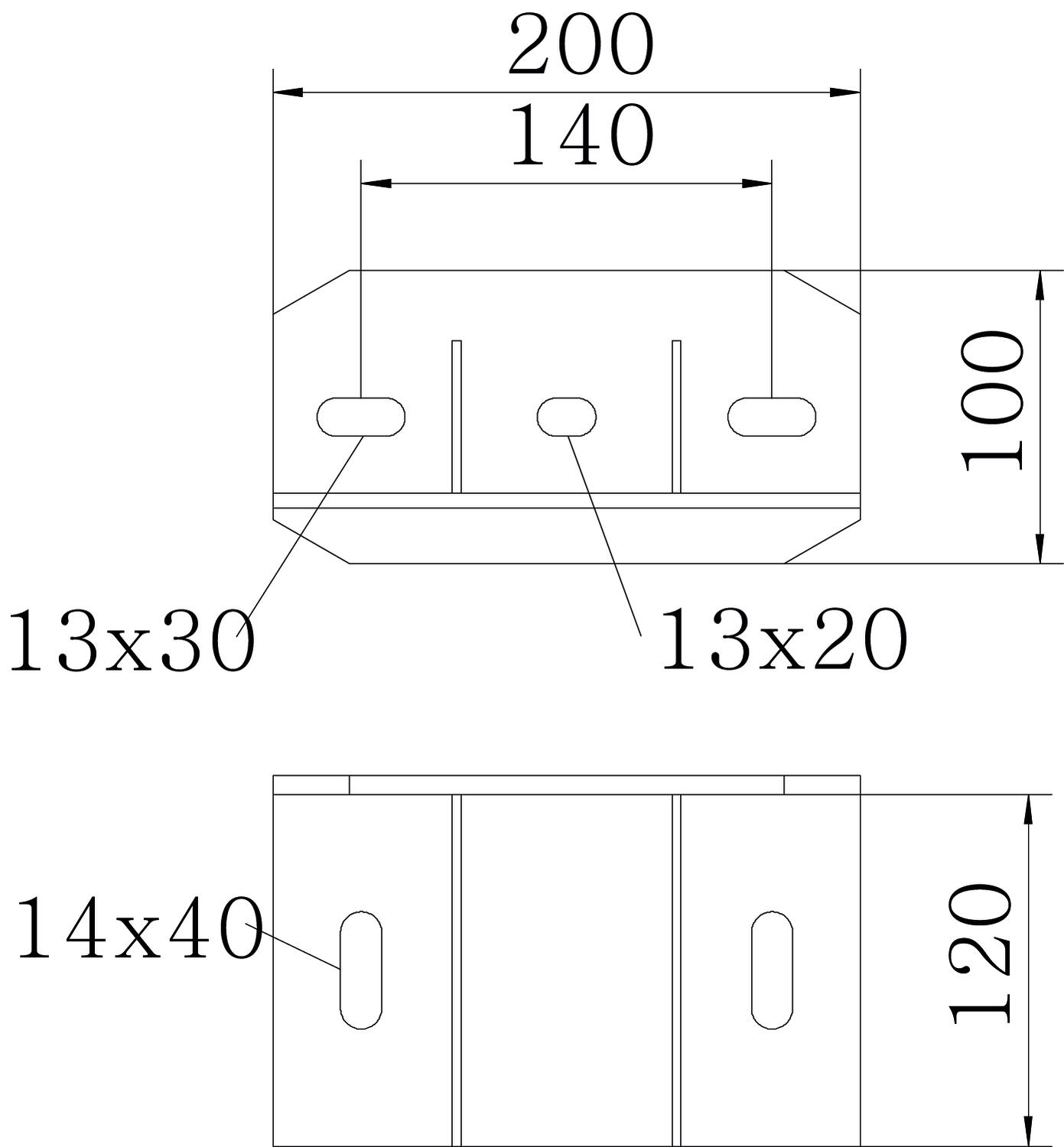

Adjustable yes Colour zinc Dimension 200x120 Height 127 mm Length 200 mm Maintain electrical functions no Material Steel Material thickness 3 mm Suitable for profile shapes U profile Surface Hot-dip galvanised Version for Fastening bracket Width 100 mm With screw accessories yes - All types
- Downloads
-
Data sheet BW US 7 FT / 6019532 , 0.18MB , pdfEU declaration of conformity BW US 7 FT / 6019532 , 0.11MB , pdfUK Declaration of Conformity BW US 7 FT / 6019532 , 0.09MB , pdfREACH Declaration of conformity BW US 7 FT / 6019532 , 0.12MB , pdfRoHS Declaration of conformity BW US 7 FT / 6019532 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
