Fastening bracket for US 3/US 5 support

Item no. 6019534 | EAN 4012196653652

Item no. / Types	6019534 / BW US 3/5 FT

Width	40 mm

Height	190 mm

Product description

Product description

Fastening bracket for the creation of individual support structures with U supports.

Technical data

Technical data

Adjustable	yes
Dimension	190x80
Maintain electrical functions	no
Material	Steel
Material thickness	4 mm

Suitable for profile shapes	U profile
Surface	Hot-dip galvanised
Version for	Fastening bracket
With screw accessories	yes

Dimensions

Height	190 mm
Length	80 mm

Width	40 mm

All types

All types

Types	Width	Height	Item no.	Quantity	SSU
BW US 3/5 FT	40 mm	190 mm	6019534	piece	5 piece

Downloads

Data sheet BW US 3/5 FT / 6019534 , 0.18MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Zwischendeckeninstallationen , 2.70MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity BW US 3/5 FT / 6019534 , 0.15MB , pdf

Sustainability report Sustainability report, cable support systems , 2.00MB , pdf

Download

Mounting instructions KTS mounting instructions Version 1.1 applicable for all OBO cable support systems , 2.00MB , pdf

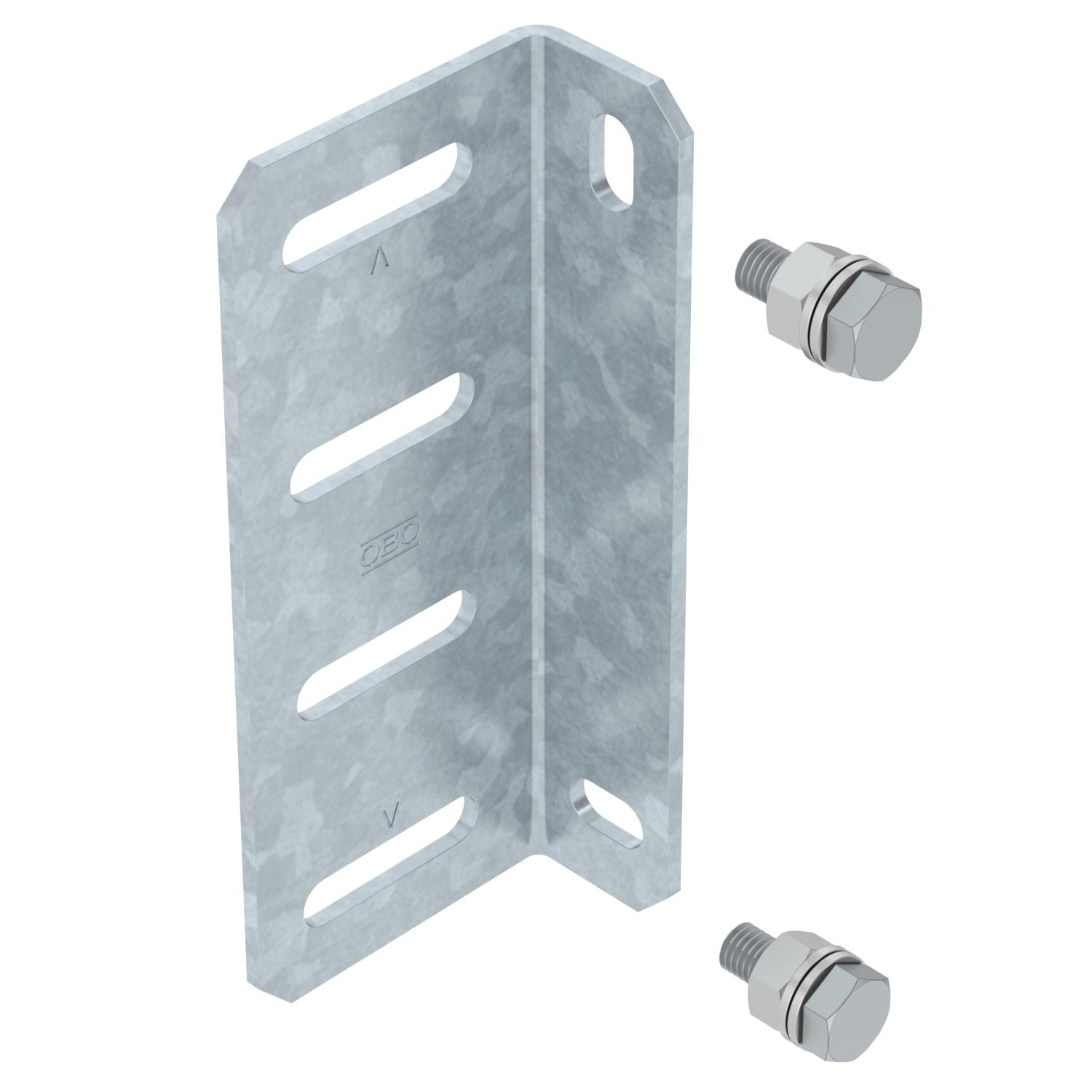

Product graphic BW US 3/5 FT / 6019534, 76.67 kB, jpg

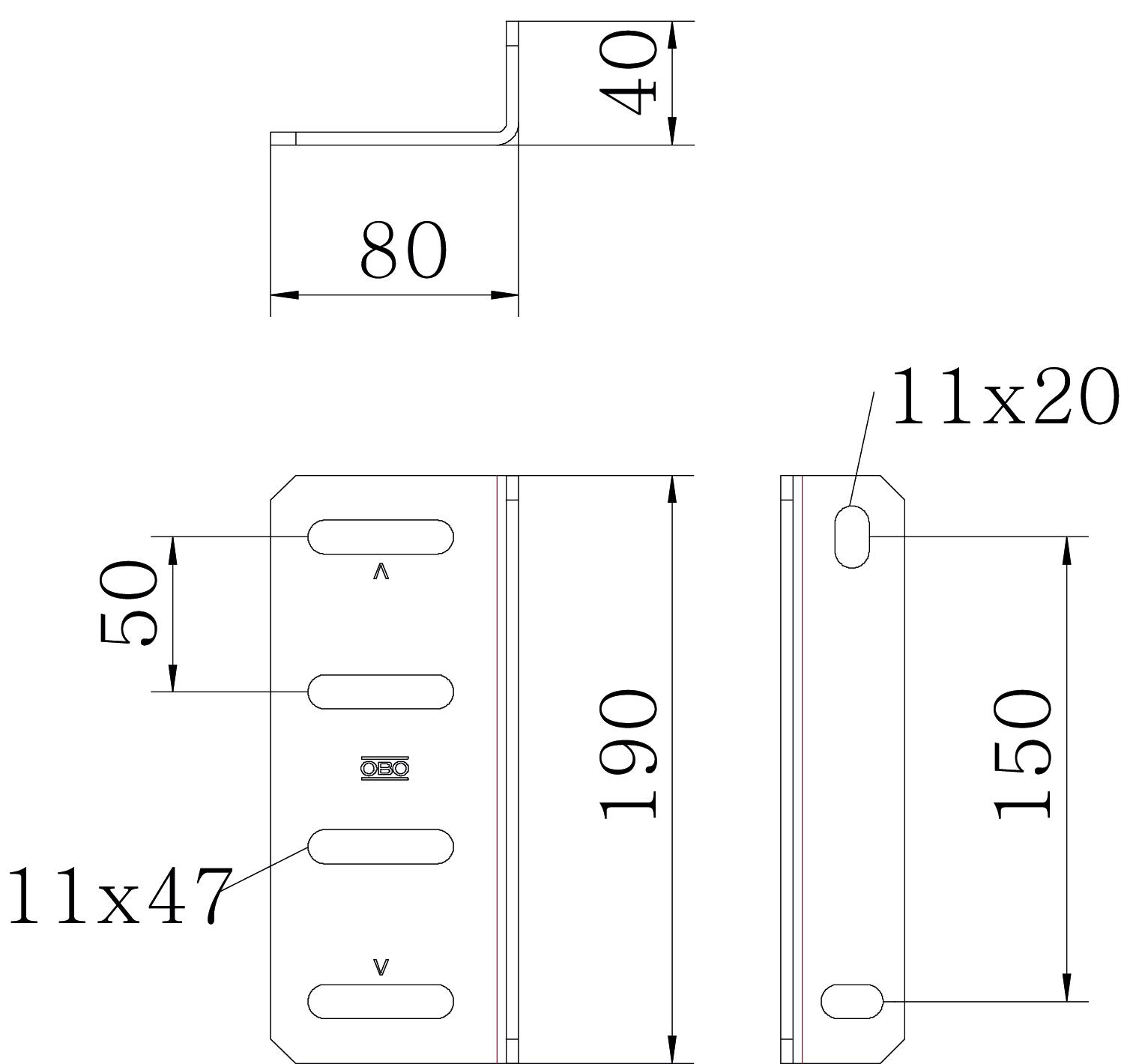

Scale drawing BW US 3/5 FT / 6019534, 68.85 kB, jpg
