Fastening clamp for 3x PVC system, trunking height 35 mm
morepic-1 morepic-2

Fastening clamp for 3x PVC system, trunking height 35 mm

Item no. 7428340 | EAN 4012195298748

Product description

Product description

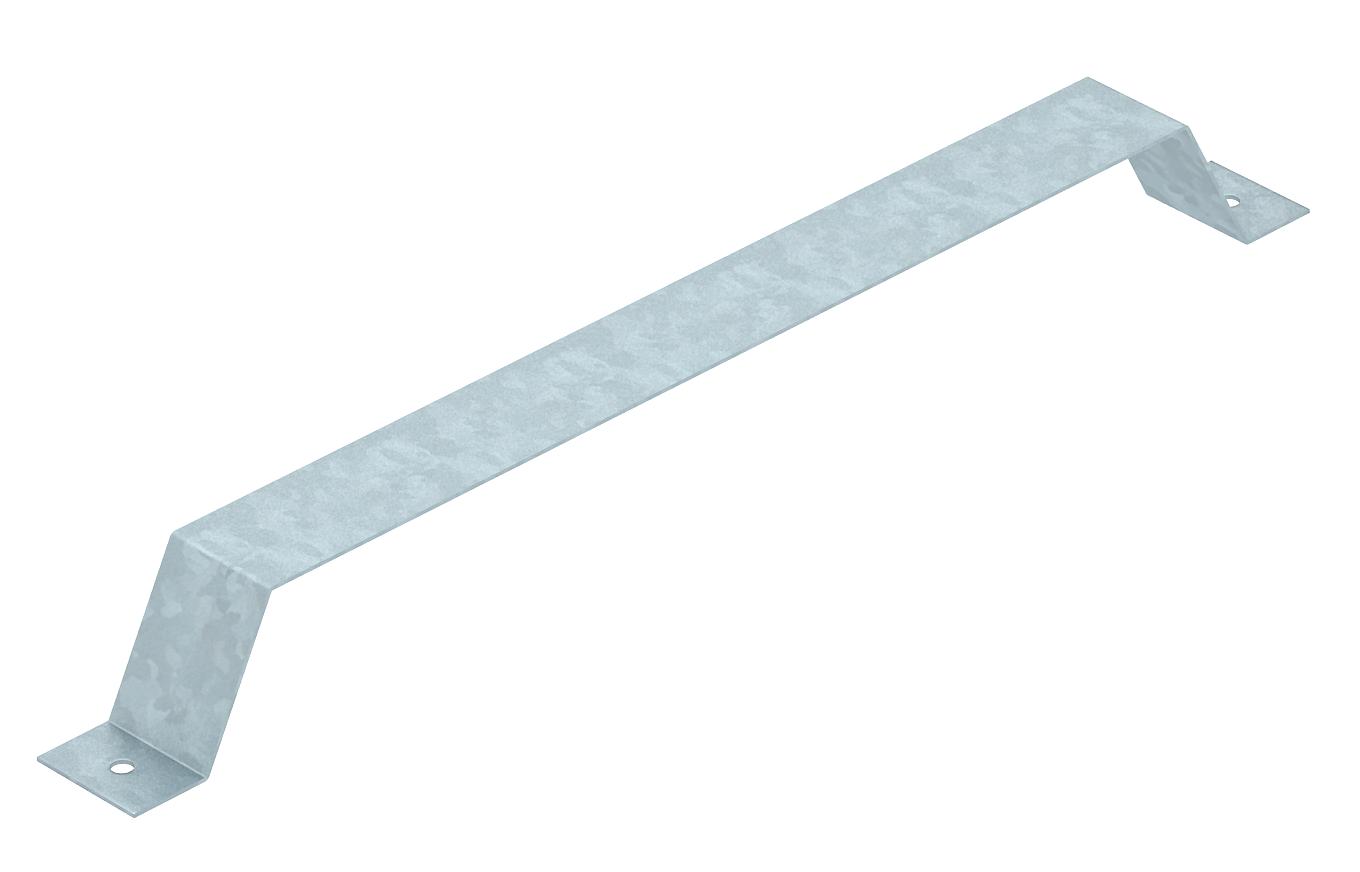

Fixing strap for three neighbouring 1-compartment PVC duct lengths of width 90 mm.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

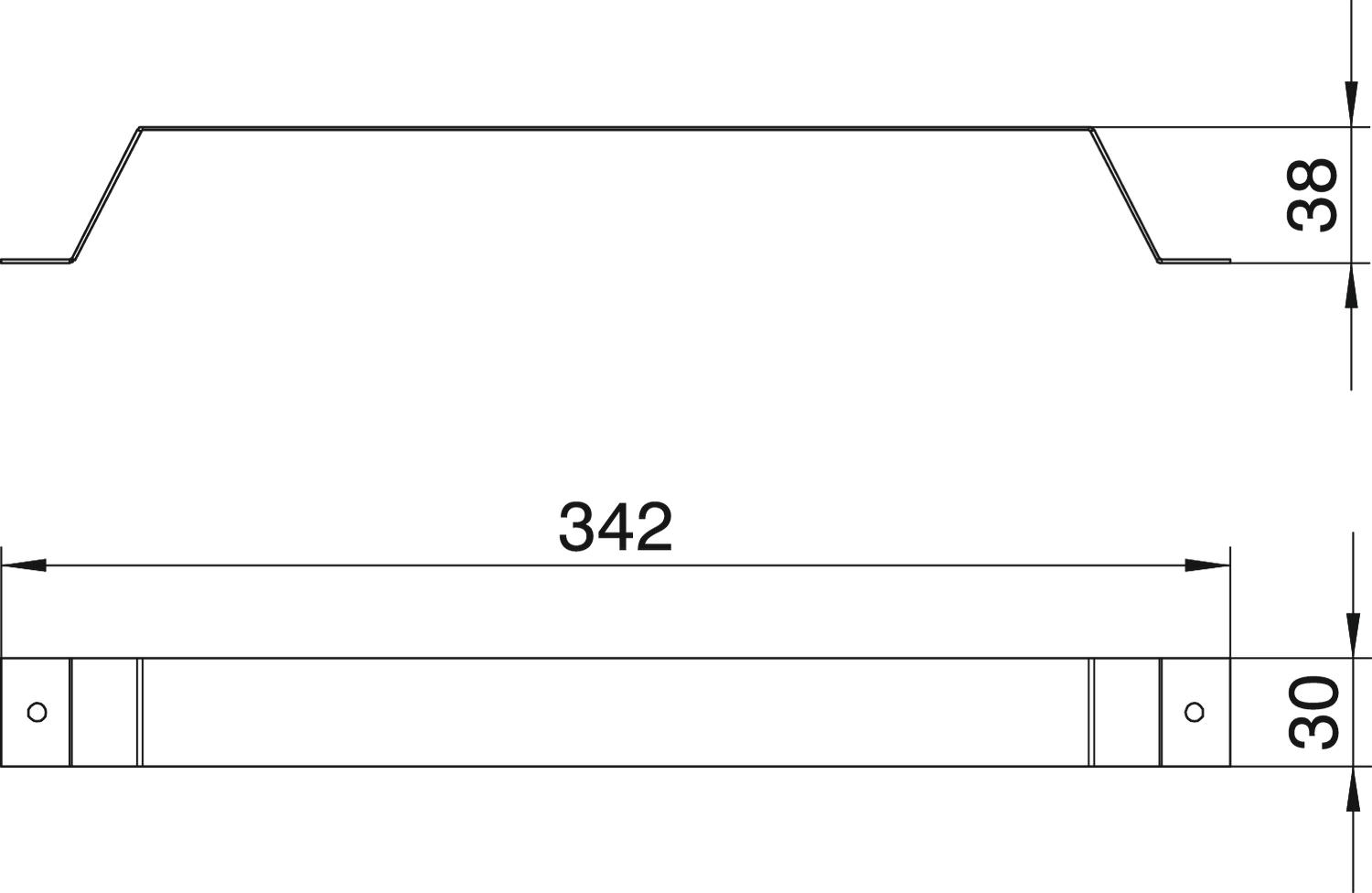

Duct height, min. 35 mm
Height 38 mm
Length 342 mm
Material Steel
Material thickness 1 mm
Surface Strip galvanized
Trunking width, min. 90 mm
Version for Clamp
Width 30 mm
All types

All types

Types Item no. Quantity SSU
DC9035 7428340
50 piece
Downloads

Download

Declaration of conformity DC9035 / 7428340 , 0.13MB , pdf
Download

Download

No invitation to tender text is available for this product.
