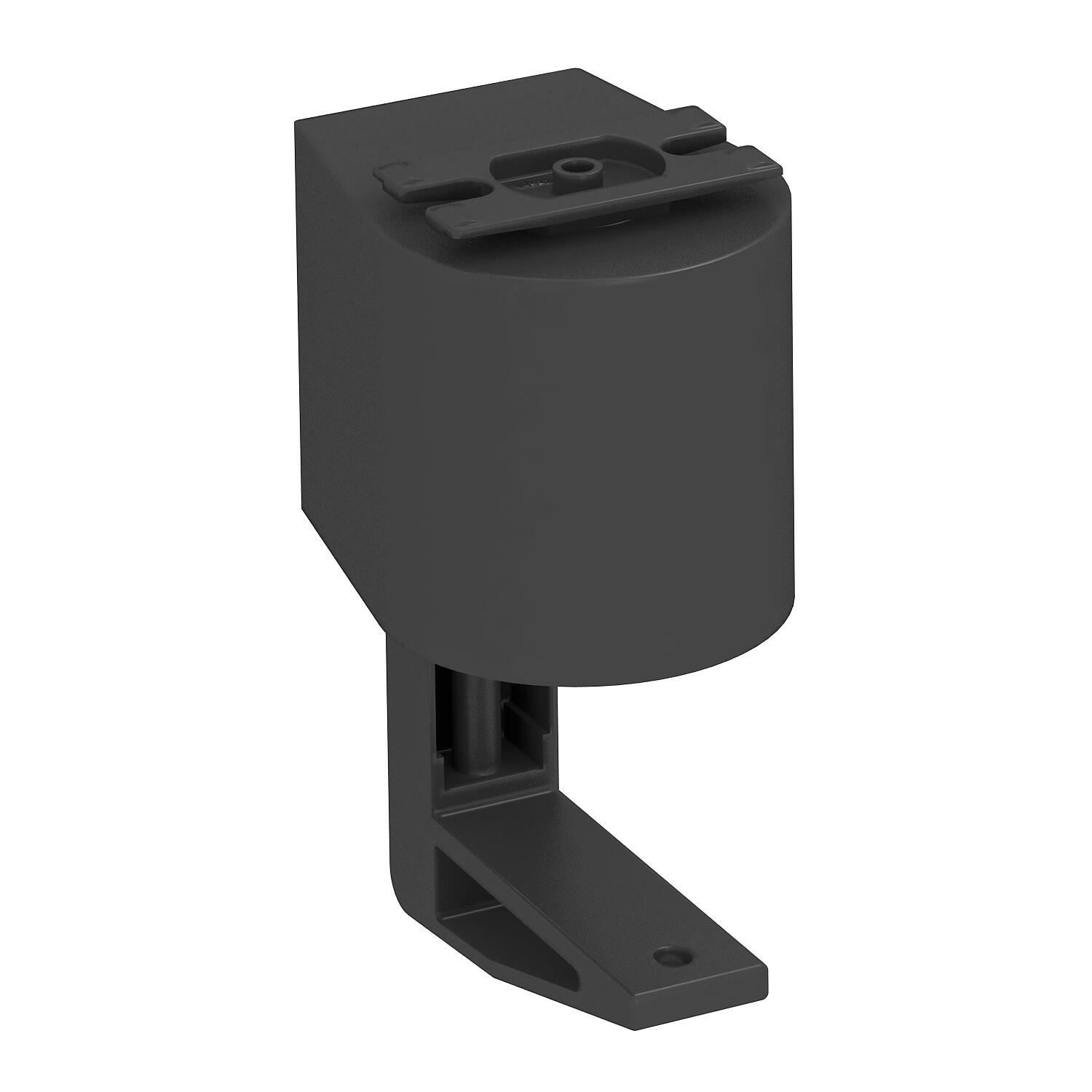

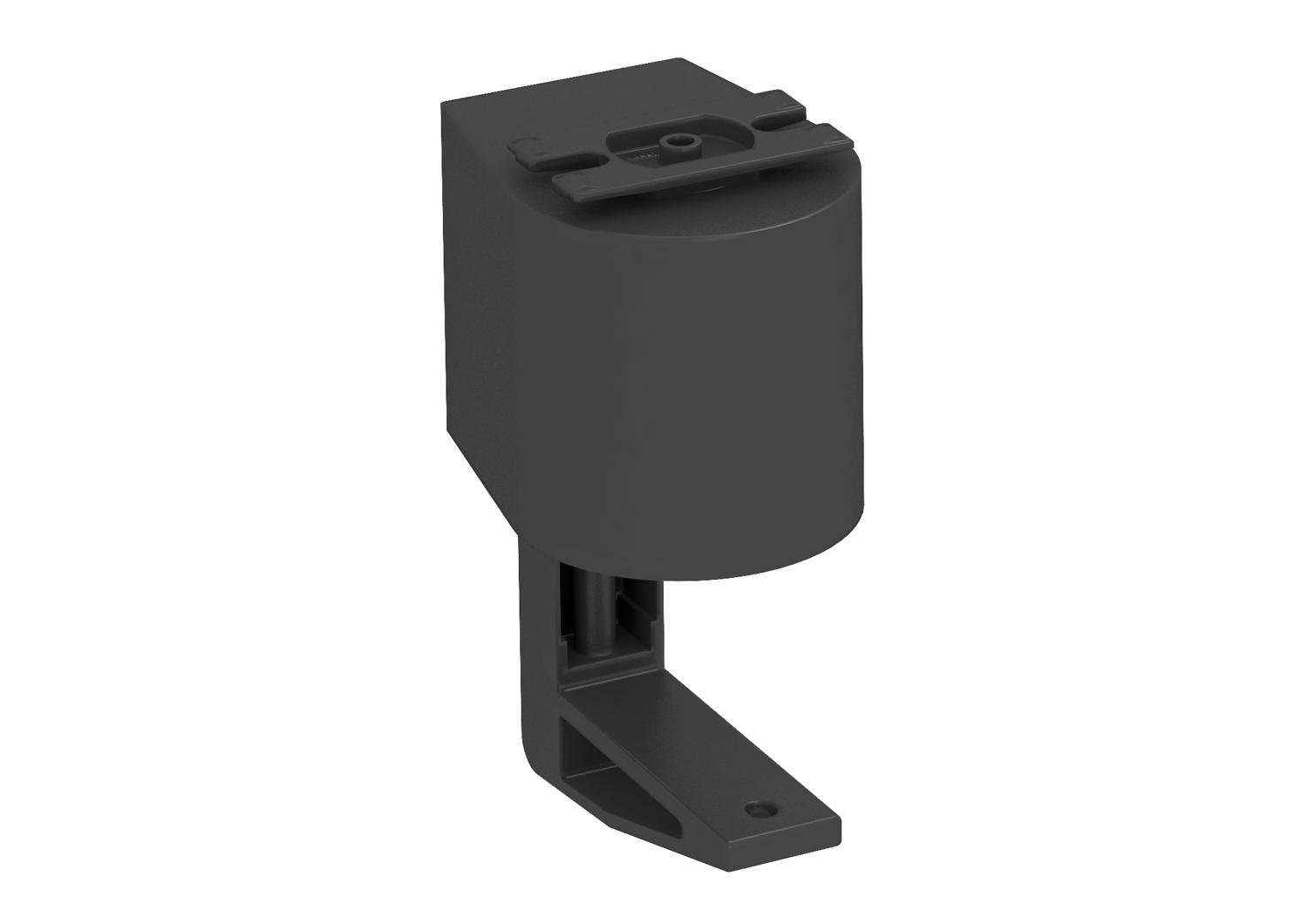

Fastening clamp for Deskbox DB
Item no. 6116976 | EAN 4012195714347
- Product description
-
Product description
Fastening clamp for mounting a Deskbox type DB-... on the tabletop.
Note: For housing widths of 200 mm or more, two fastening clamps are required to mount a Deskbox.
The ready-for-connection type DB Deskbox is particularly suitable for the direct supply of workstations with energy, communication and data technology connections.
- Technical data
-
Technical data
Clamping range, max. 40 mm Clamping range, min. 8 mm Colour Black Extendable no Foldable no Length of the supply cable 3 m Surge protection no Version for Clamping range 8 to 40 mm - All types
- Downloads
-
Data sheet DBZ-BZ40 / 6116976 , 0.15MB , pdfCatalogue Installation systems , 28.45MB , pdfMounting instructions Deskbox DB , 7.80MB , pdfNo invitation to tender text is available for this product.
