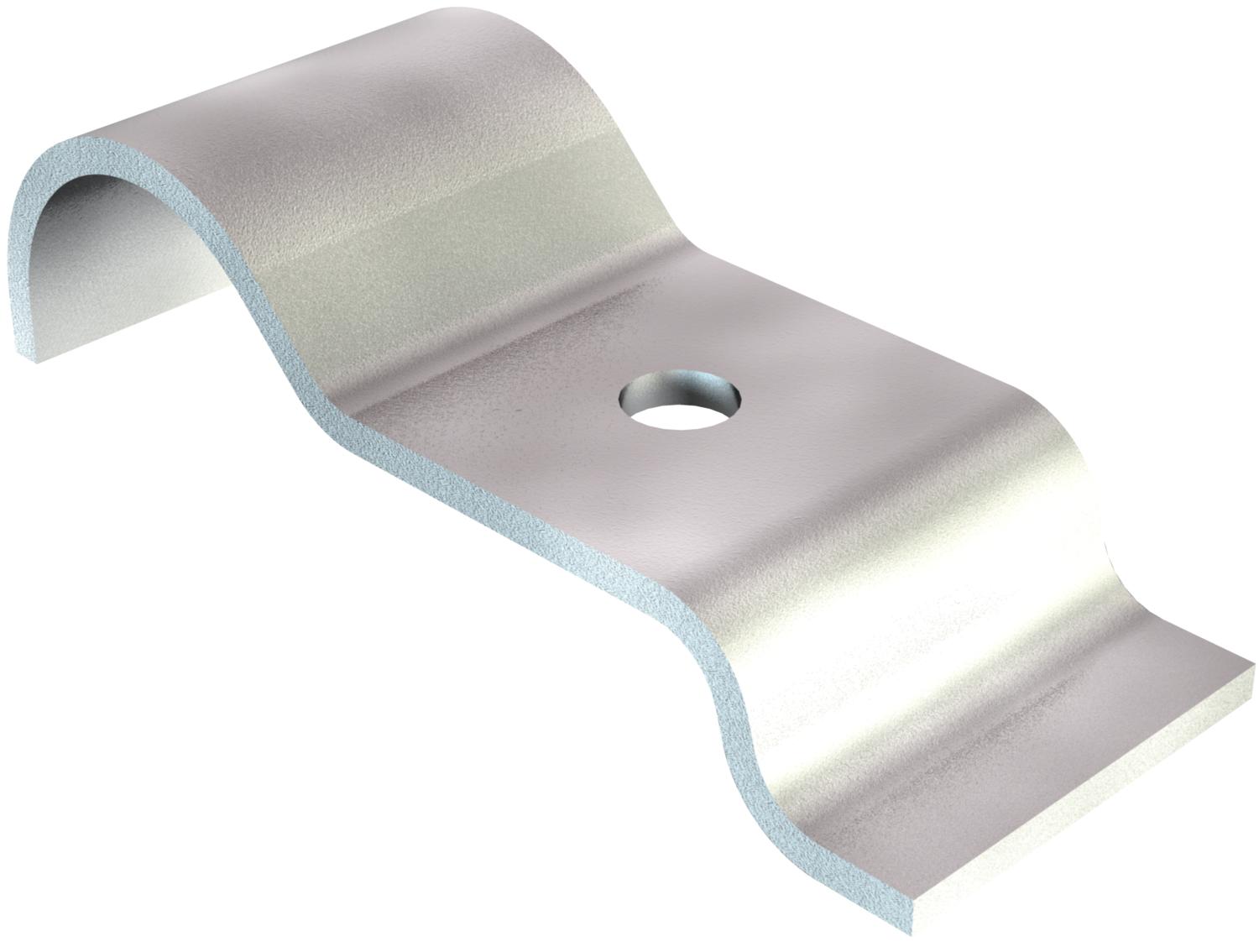

Fastening clip 1594, single-lobe, heavy-duty version

Item no. / Types	1310925 / 1594 22 G

For diameter	22

Product description

Product description

For earthing cable fastening to house connection boxes.
Levanisit coated.

Technical data

Colour	Stone grey; RAL 7030
CO₂ Footprint (GWP) Cradle-to-Gate	0,155 kg CO₂e / 1 Piece

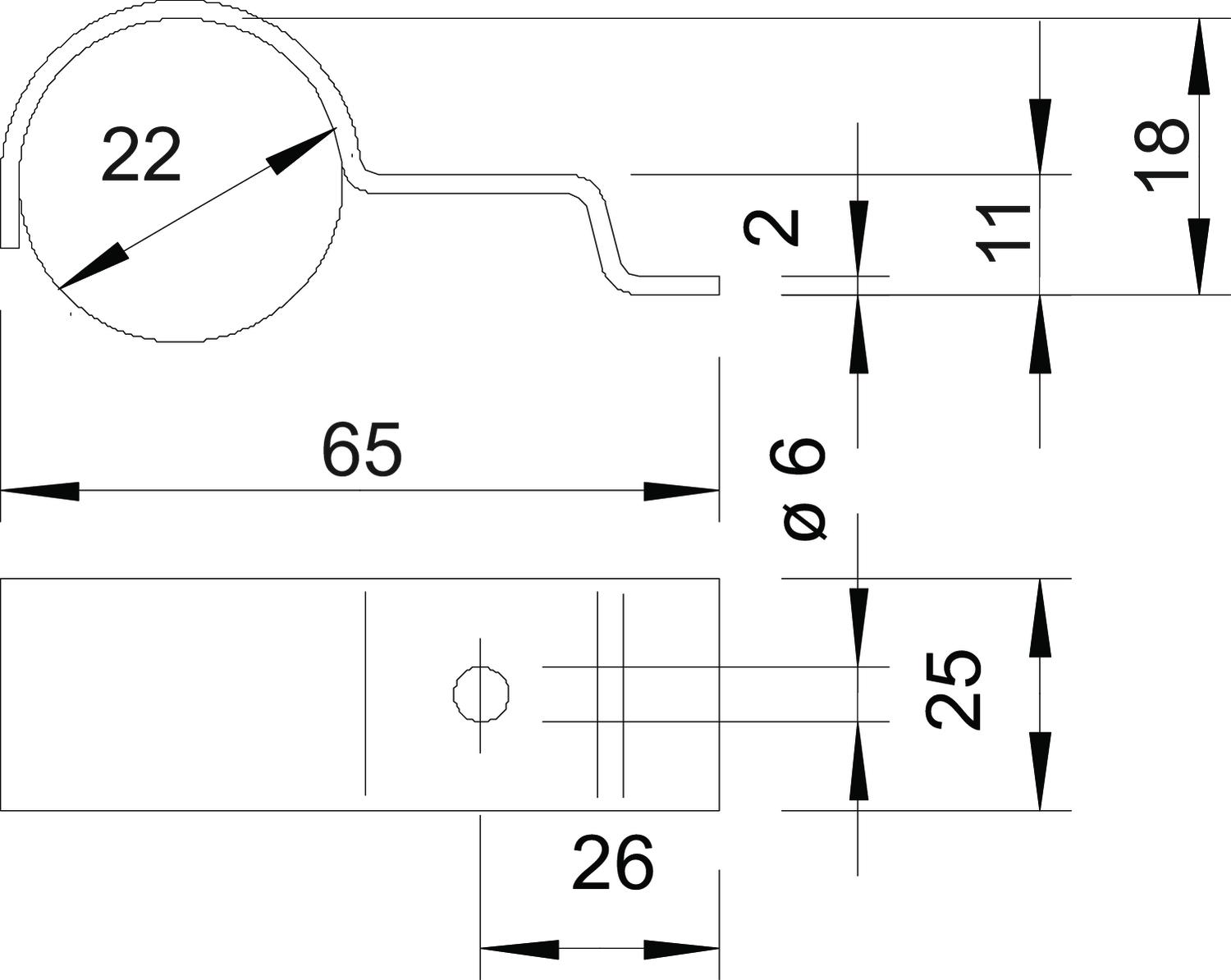

Dimension	22mm
Dimension D	22 mm
Dimension H	18 mm
Dimension H1	11 mm
Dimension L	65 mm
Distance to the wall	no
For diameter	22
Halogen-free	yes
Height	18 mm

Hole size	6 mm
Length	65 mm
Material	Steel
Material thickness	2 mm
Number of cables/pipes	1
Plastic-covered	no
Suitable in fire protection area	no
Surface	Electrogalvanized
UV-resistant	yes
Width	25 mm
