Fastening clip

Item no. 2222175 | EAN 4012195214571

Item no. / Types

For diameter

Product description

Product description

Fastening clip 17.5 mm

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	17,5mm
Dimension d	17,2 mm
Dimension e	17 mm
Dimension s	1,5 mm
Dimension x	3,2 mm
Fastening type	Screw hole
For diameter	17,5

Halogen-free	yes
Material	Polyamide
Nominal diameter	17,5 mm
Number of cables/pipes	1
Plastic-covered	no
Suitable in fire protection area	no
UV-resistant	no
Version for	Closed

All types

All types

Types	For diameter	Item no.	Quantity	SSU
255 3.2 LGR	3,2	2222035	piece	100 piece
255 5.2 LGR	5,2	2222051	piece	100 piece
255 6.5 LGR	6,5	2222078	piece	100 piece
255 8 LGR	8	2222086	piece	100 piece
255 9.5 LGR	9,5	2222094	piece	100 piece
255 11 LGR	11	2222116	piece	100 piece
255 12.5 LGR	12,5	2222124	piece	100 piece
255 14 LGR	14	2222140	piece	100 piece
255 16 LGR	16	2222167	piece	100 piece
255 17.5 LGR	17,5	2222175	piece	100 piece

Downloads

Data sheet 255 17.5 LGR / 2222175 , 0.18MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

Declaration of conformity 255 17.5 LGR / 2222175 , 0.13MB , pdf

REACH Declaration of conformity 255 17.5 LGR / 2222175 , 0.12MB , pdf

Download

RoHS Declaration of conformity 255 17.5 LGR / 2222175 , 0.12MB , pdf

Download

Product graphic 255 17.5 LGR / 2222175, 37.09 kB, jpg

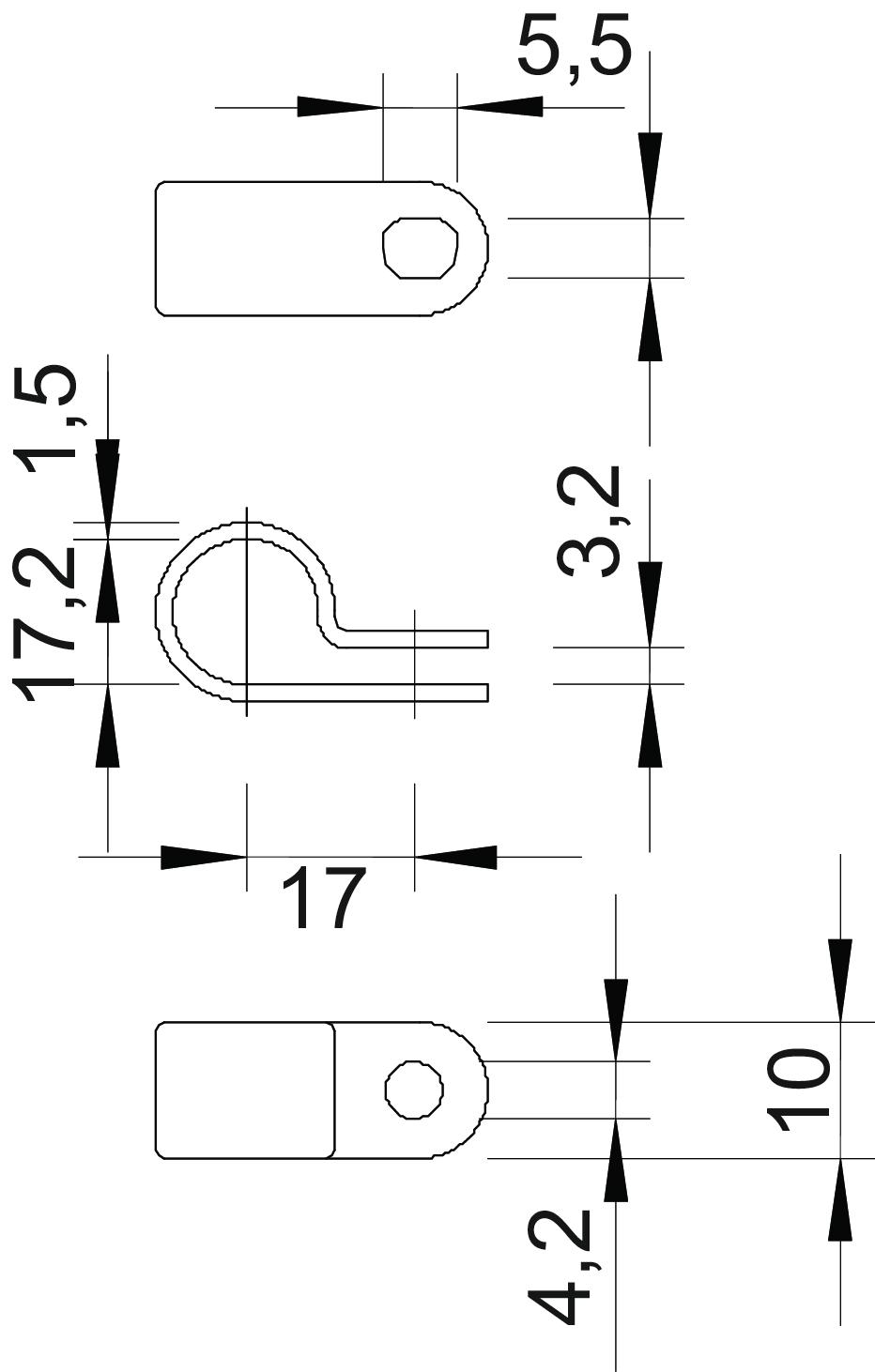

Scale drawing 255 17.5 LGR / 2222175, 56.06 kB, jpg

255 17.5 LGR / 2222175
