Fastening clip 604, light duty

Item no. 1003054 | EAN 4012195000914

Item no. / Types

For diameter

Product description

Product description

Single-lobe fastening clip for cables and pipes.
* Sizes 3 and 4 are not suitable for nail device
* Sizes 3 to 21 are not suitable for bolt-firing tool

Technical data

Technical data

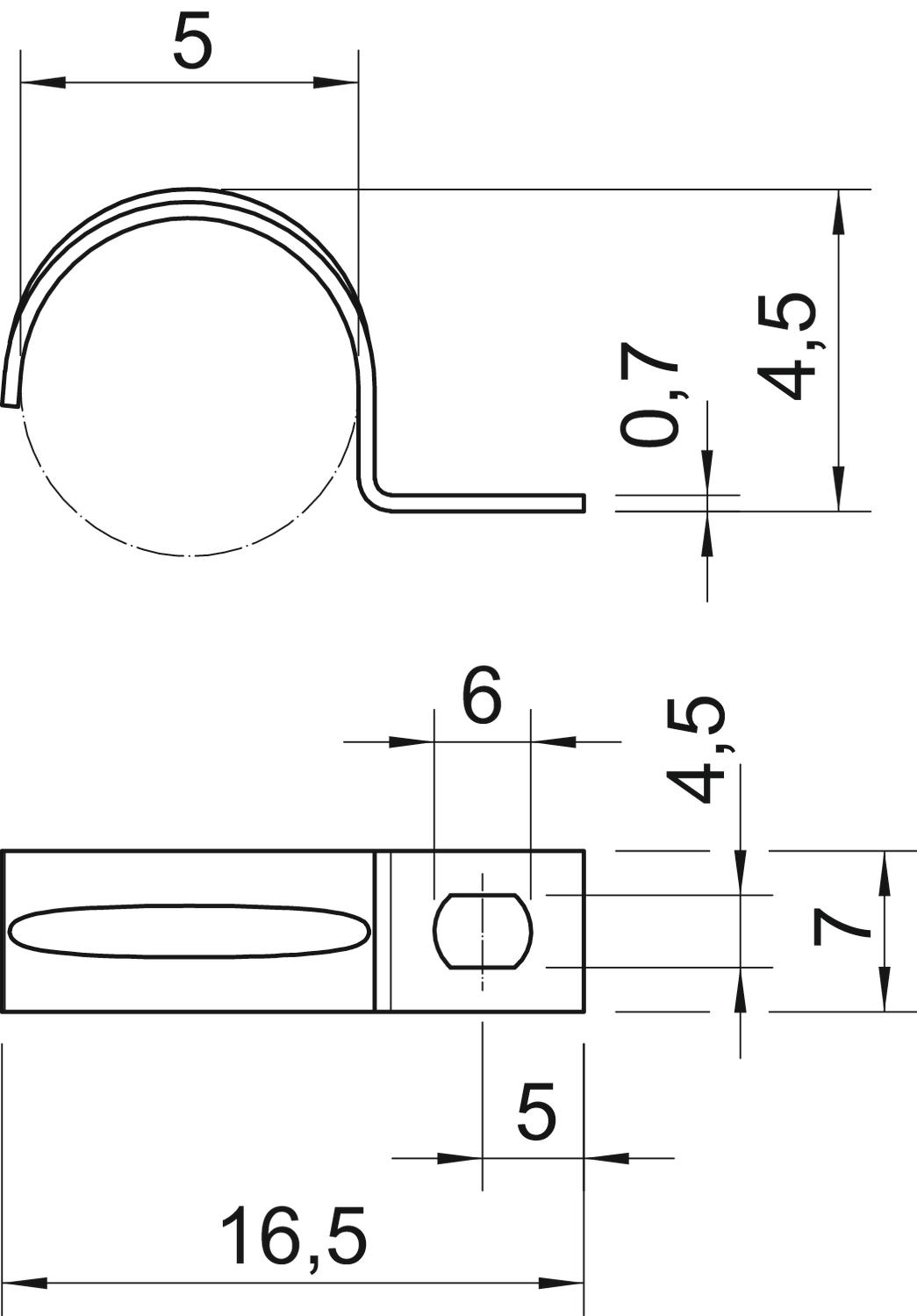

Dimension	5mm
Dimension A	5 mm
Dimension b	7 mm
Dimension d	4,5 mm
Dimension D	5 mm
Dimension e	6 mm
Dimension H	4,5 mm
Dimension L	16,5 mm
Dimension t	0,7 mm
Distance to the wall	no
Fastening type	Screw hole
For diameter	5
Halogen-free	yes

Height	4,5 mm
Hole size	4,5 x 6 mm
Length	16,5 mm
Material	Steel
Material thickness	0,7 mm
Nominal diameter	5 mm
Number of cables/pipes	1
Plastic-covered	no
Suitable in fire protection area	no
Surface	Electrogalvanized
UV-resistant	yes
Version for	Single-lobe
Width	7 mm

All types

All types

Types	For diameter	Item no.	Quantity	SSU
604 3 G	3	1003038	piece	1000 piece
604 4 G	4	1003046	piece	1000 piece
604 5 G	5	1003054	piece	100 piece
604 6 G	6	1003062	piece	100 piece
604 7 G	7	1003070	piece	100 piece
604 8 G	8	1003089	piece	100 piece
604 9 G	9	1003097	piece	100 piece
604 10 G	10	1003100	piece	100 piece
604 11 G	11	1003119	piece	100 piece
604 12 G	12	1003127	piece	100 piece
604 13 G	13	1003135	piece	100 piece
604 16 G	16	1003178	piece	100 piece
604 19 G	19	1003194	piece	100 piece
604 20 G	20	1003208	piece	100 piece
604 21 G	21	1003216	piece	100 piece
604 23 G	23	1003232	piece	100 piece
604 25 G	25	1003259	piece	100 piece
604 28 G	28	1003283	piece	100 piece
604 32 G	32	1003321	piece	100 piece
604 35 G	35	1003356	piece	100 piece
604 37 G	37	1003372	piece	100 piece
604 40 G	40	1003402	piece	100 piece
604 47 G	47	1003461	piece	50 piece
