Fastening clip 605, medium duty, aluminium
Item no. 1017861 | EAN 4012195449836
- Product description
-
Product descriptionFastening clip, double-lobe, 25 mm
-
- Technical data
-
Technical data

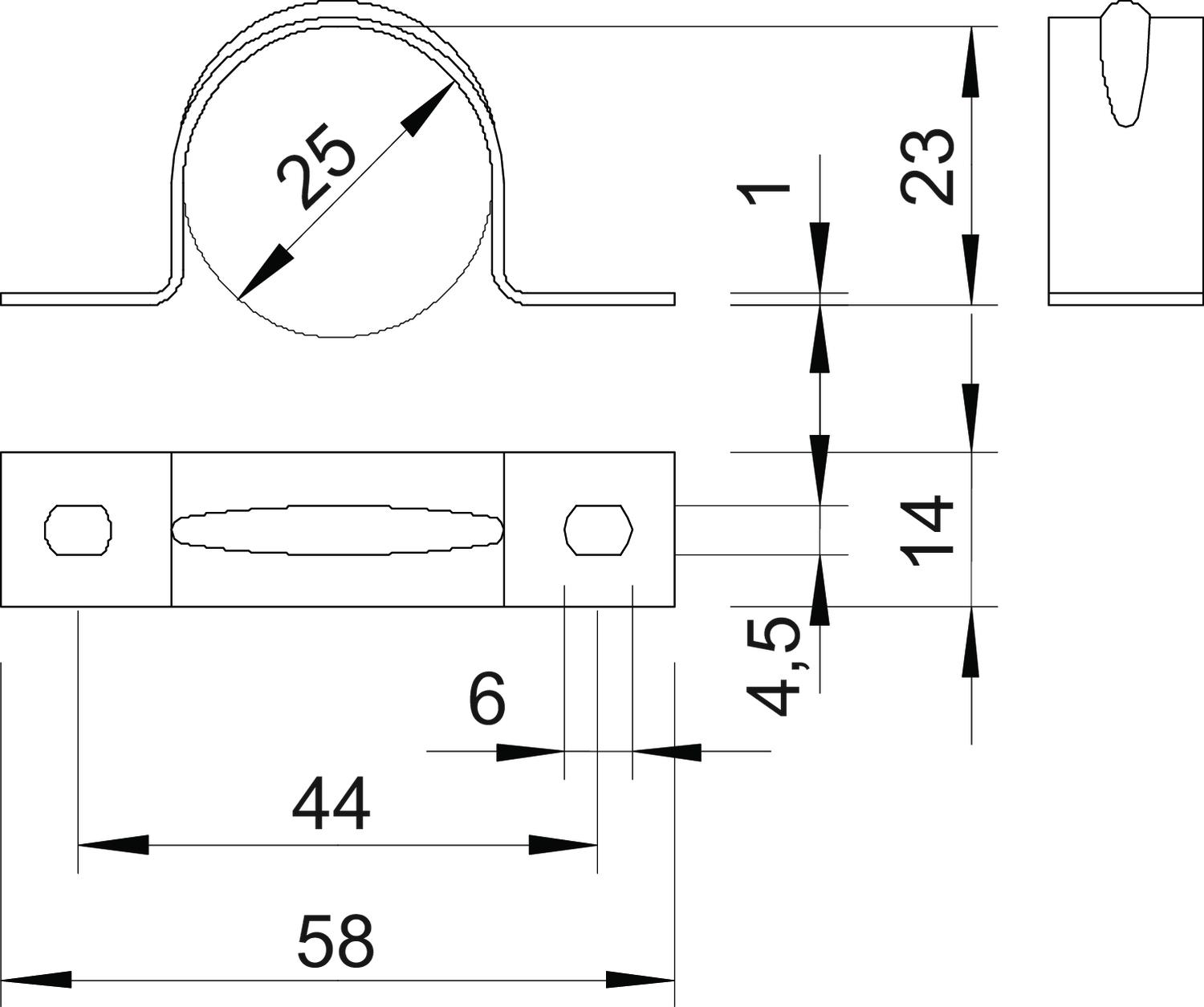

Clamping range D, max. 25 mm Clamping range D, min. 25 mm CO2 Footprint (GWP) Cradle-to-Gate 0,059 kg CO2e / 1 Piece Dimension 25mm Dimension A 58 mm Dimension B 44 mm Dimension b 14 mm Dimension D 25 mm Dimension d 4,5 mm Dimension e 6 mm Dimension H 23 mm Dimension t 1 mm Distance to the wall no Fastening type Screw hole For diameter 25 Halogen-free yes Height 23 mm Hole size 4,5 x 6 mm Length 58 mm Material Aluminium Material thickness 1 mm Nominal diameter 25 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no UV-resistant yes Version for Two-lobe Width 14 mm - All types
