Fastening clip 605, medium duty, G
Item no. 1018124 | EAN 4012195016571
- Product description
-
Product descriptionTwo lobe fastening clips for cables and pipes.
* Sizes 7 to 12 not suitable for bolt-firing tool.
-
- Technical data
-
Technical data

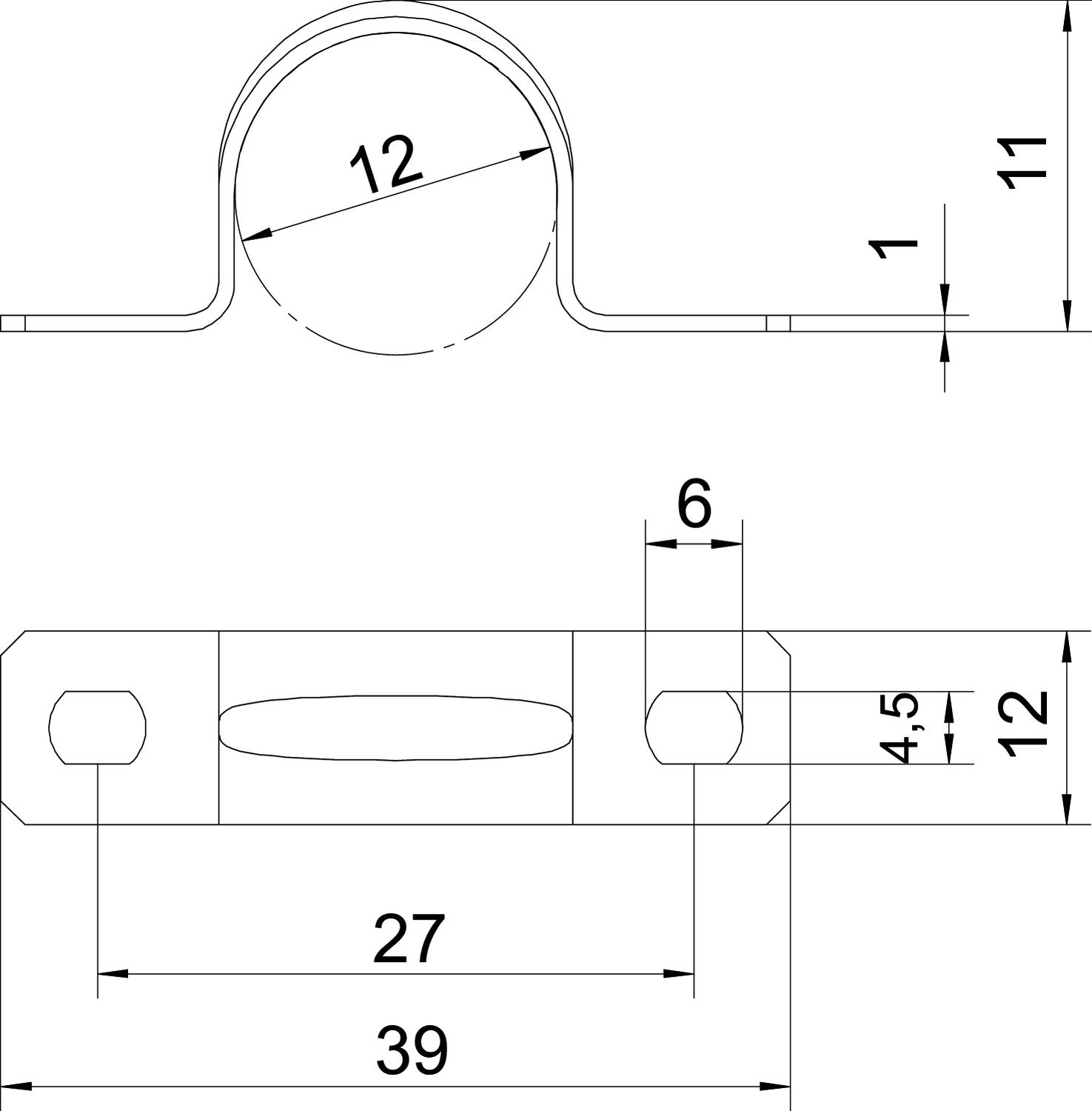

CO₂ Footprint (GWP) Cradle-to-Gate 0,01 kg CO₂e / 1 Piece Dimension 12mm Dimension A 39 mm Dimension b 12 mm Dimension B 27 mm Dimension d 4,5 mm Dimension D 12 mm Dimension e 6 mm Dimension H 11 mm Dimension t 1 mm Distance to the wall no Fastening type Screw hole For diameter 12 Halogen-free yes Height 11 mm Hole size 4,5 x 6 mm Length 39 mm Material Steel Material thickness 1 mm Nominal diameter 12 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no Surface Electrogalvanized UV-resistant yes Version for Two-lobe Width 12 mm - All types
-
All types
- Downloads
-
Data sheet 605 12 G / 1018124 , 0.18MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 605 12 G / 1018124 , 0.06MB , pdfREACH Declaration of conformity 605 12 G / 1018124 , 0.12MB , pdfRoHS Declaration of conformity 605 12 G / 1018124 , 0.12MB , pdf
