Fastening clip 605, medium duty, G
Item no. 1018604 | EAN 4012195017899
- Product description
-
Product descriptionTwo lobe fastening clips for cables and pipes.
* Sizes 7 to 12 not suitable for bolt-firing tool.
-
- Technical data
-
Technical data

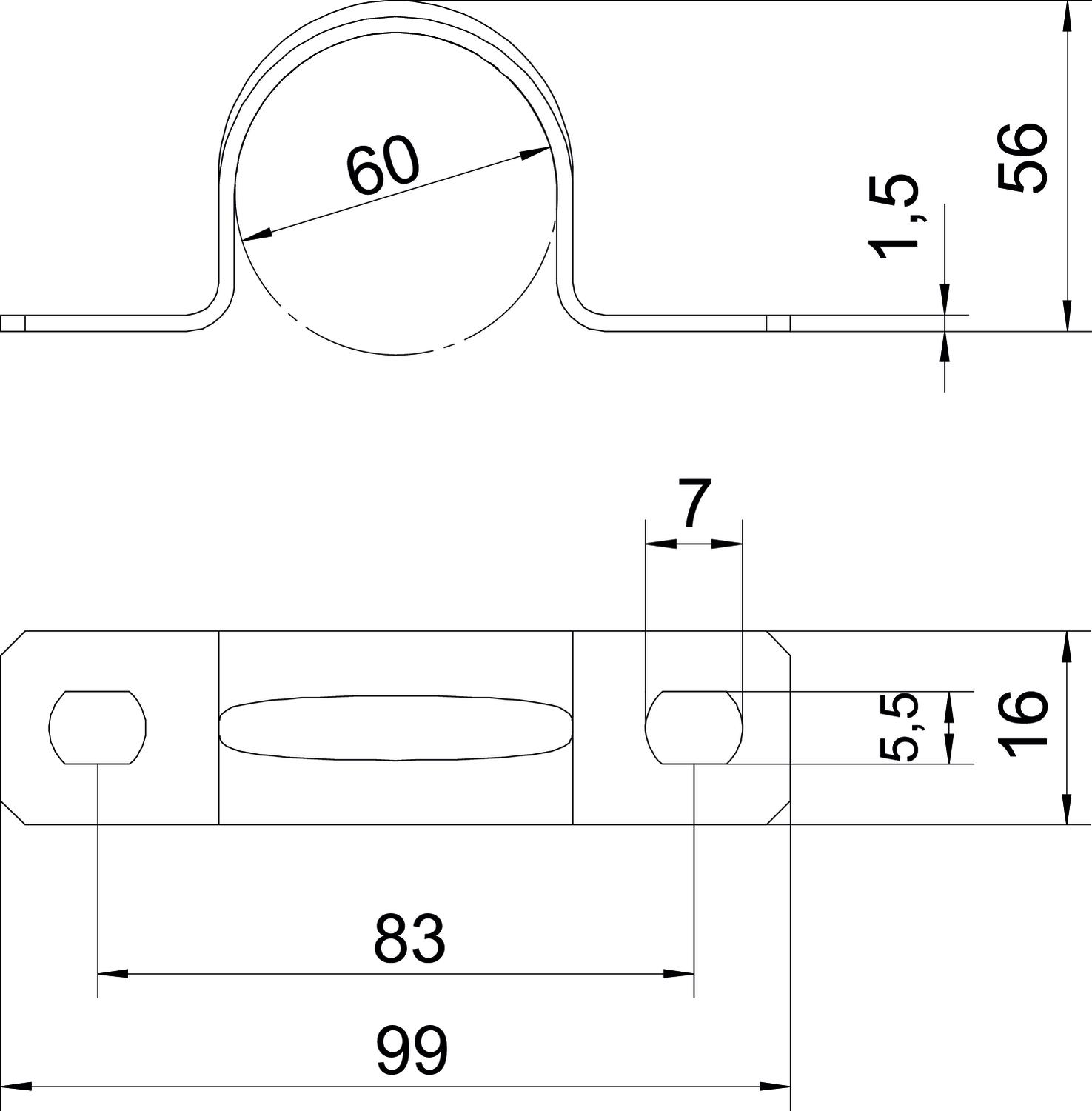

CO₂ Footprint (GWP) Cradle-to-Gate 0,07 kg CO₂e / 1 Piece Dimension 60mm Dimension A 99 mm Dimension B 83 mm Dimension b 16 mm Dimension d 5,5 mm Dimension D 60 mm Dimension e 7 mm Dimension H 56 mm Dimension t 1,5 mm Distance to the wall no Fastening type Screw hole For diameter 60 Halogen-free yes Height 56 mm Hole size 5,5 x 7 mm Length 99 mm Material Steel Material thickness 1,5 mm Nominal diameter 60 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no Surface Electrogalvanized UV-resistant yes Version for Two-lobe Width 16 mm - All types
-
All types
- Downloads
-
Data sheet 605 60 G / 1018604 , 0.19MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 605 60 G / 1018604 , 0.06MB , pdfREACH Declaration of conformity 605 60 G / 1018604 , 0.12MB , pdfRoHS Declaration of conformity 605 60 G / 1018604 , 0.13MB , pdf
