Fastening clip 605, medium duty, G
Item no. 1018086 | EAN 4012195016335
- Product description
-
Product descriptionTwo lobe fastening clips for cables and pipes.
* Sizes 7 to 12 not suitable for bolt-firing tool.
-
- Technical data
-
Technical data

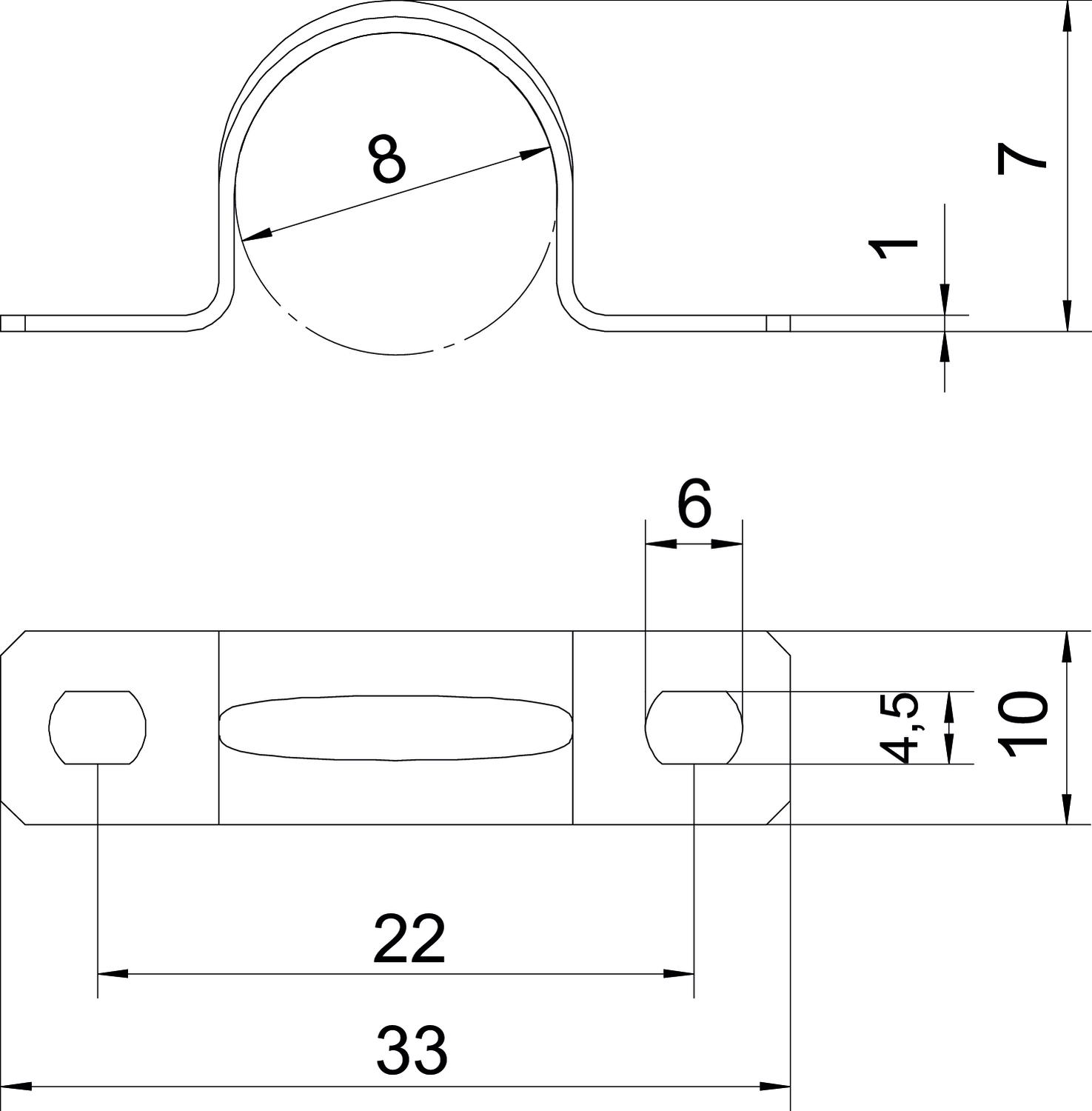

CO₂ Footprint (GWP) Cradle-to-Gate 0,005 kg CO₂e / 1 Piece Dimension 8mm Dimension A 33 mm Dimension b 10 mm Dimension B 22 mm Dimension d 4,5 mm Dimension D 8 mm Dimension e 6 mm Dimension H 7 mm Dimension t 1 mm Distance to the wall no Fastening type Screw hole For diameter 8 Halogen-free yes Height 7 mm Hole size 4,5 x 6 mm Length 33 mm Material Steel Material thickness 1 mm Nominal diameter 8 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no Surface Electrogalvanized UV-resistant yes Version for Two-lobe Width 10 mm - All types
-
All types
- Downloads
-
Data sheet 605 8 G / 1018086 , 0.18MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 605 8 G / 1018086 , 0.06MB , pdfREACH Declaration of conformity 605 8 G / 1018086 , 0.12MB , pdfRoHS Declaration of conformity 605 8 G / 1018086 , 0.12MB , pdf
