CO₂ Footprint (GWP) Cradle-to-Gate	0,0666 kg CO₂e / 1 Piece
Dimension	23mm
Dimension A	67 mm
Dimension b	20 mm
Dimension B	48 mm
Dimension D	22,5 mm
Dimension d	6,5 mm
Dimension e	10 mm
Dimension H	20 mm
Dimension t	2 mm
Distance to the wall	no
Fastening type	Screw hole
For diameter	22,5
Halogen-free	yes

Height	20 mm
Hole size	6,5 x 10 mm
Length	67 mm
Material	Steel
Material thickness	2 mm
Nominal diameter	22,5 mm
Number of cables/pipes	1
Plastic-covered	no
Suitable in fire protection area	no
Surface	Hot-dip galvanised
UV-resistant	yes
Version for	Two-lobe
Width	20 mm

Types	For diameter	Item no.	Quantity	SSU
823 16 FT	16	1015095	piece	50 piece
823 18.3 FT	18,6	1015117	piece	50 piece
823 20 FT	20	1015133	piece	50 piece
823 22.5 FT	22,5	1015168	piece	50 piece
823 28.3 FT	28,3	1015214	piece	25 piece
823 37 FT	37	1015303	piece	100 piece
823 47 FT	47	1015362	piece	100 piece
823 54 FT	54	1015427	piece	100 piece
823 59.3 FT	59,3	1015486	piece	100 piece
823 25 FT	25	1015494	piece	25 piece
823 32 FT	32	1015496	piece	100 piece
823 40 FT	40	1015498	piece	100 piece
823 50 FT	50	1015500	piece	100 piece
823 63 FT	63	1015508	piece	100 piece

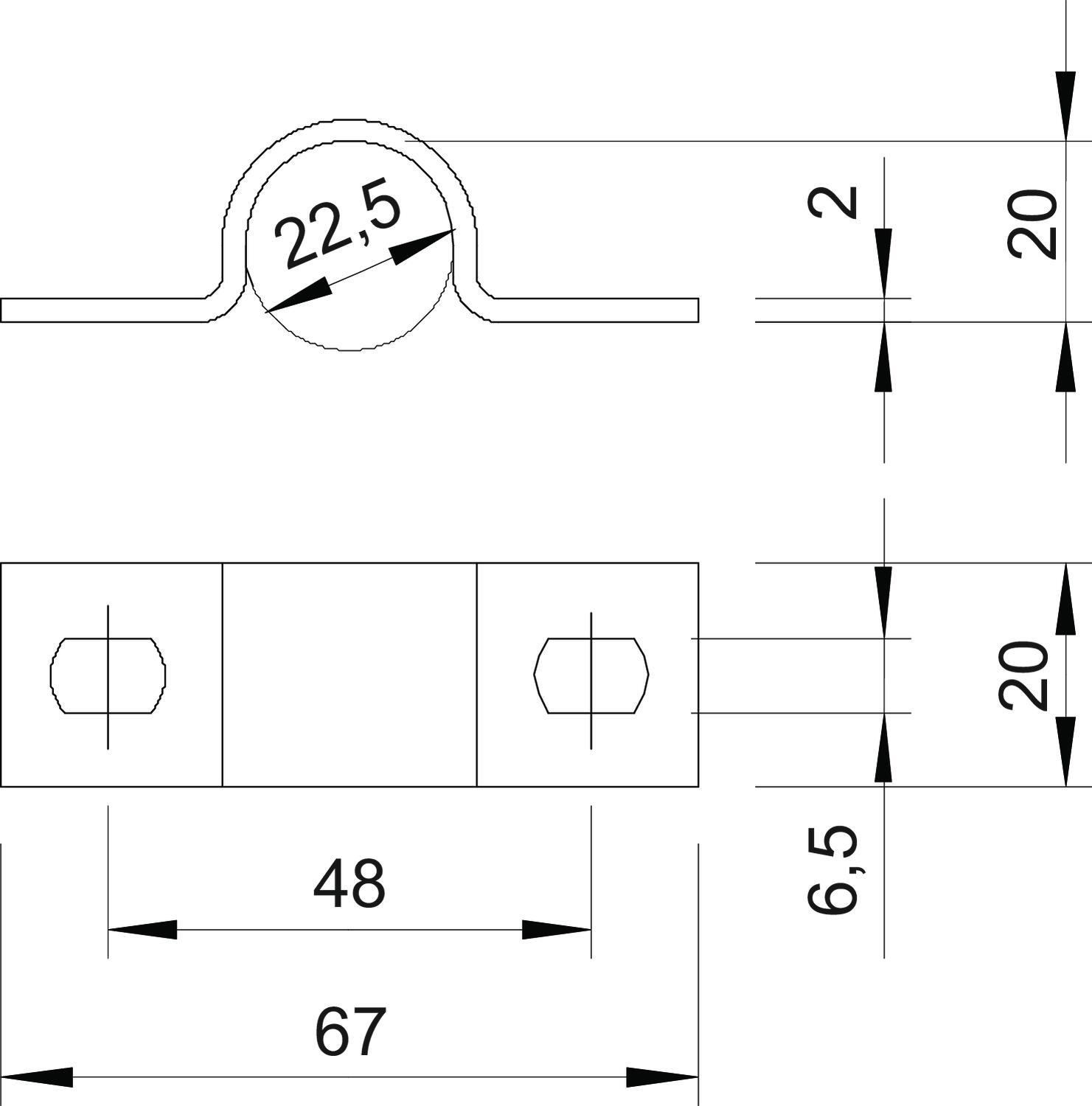

Fastening clip 823, heavy duty

All types
