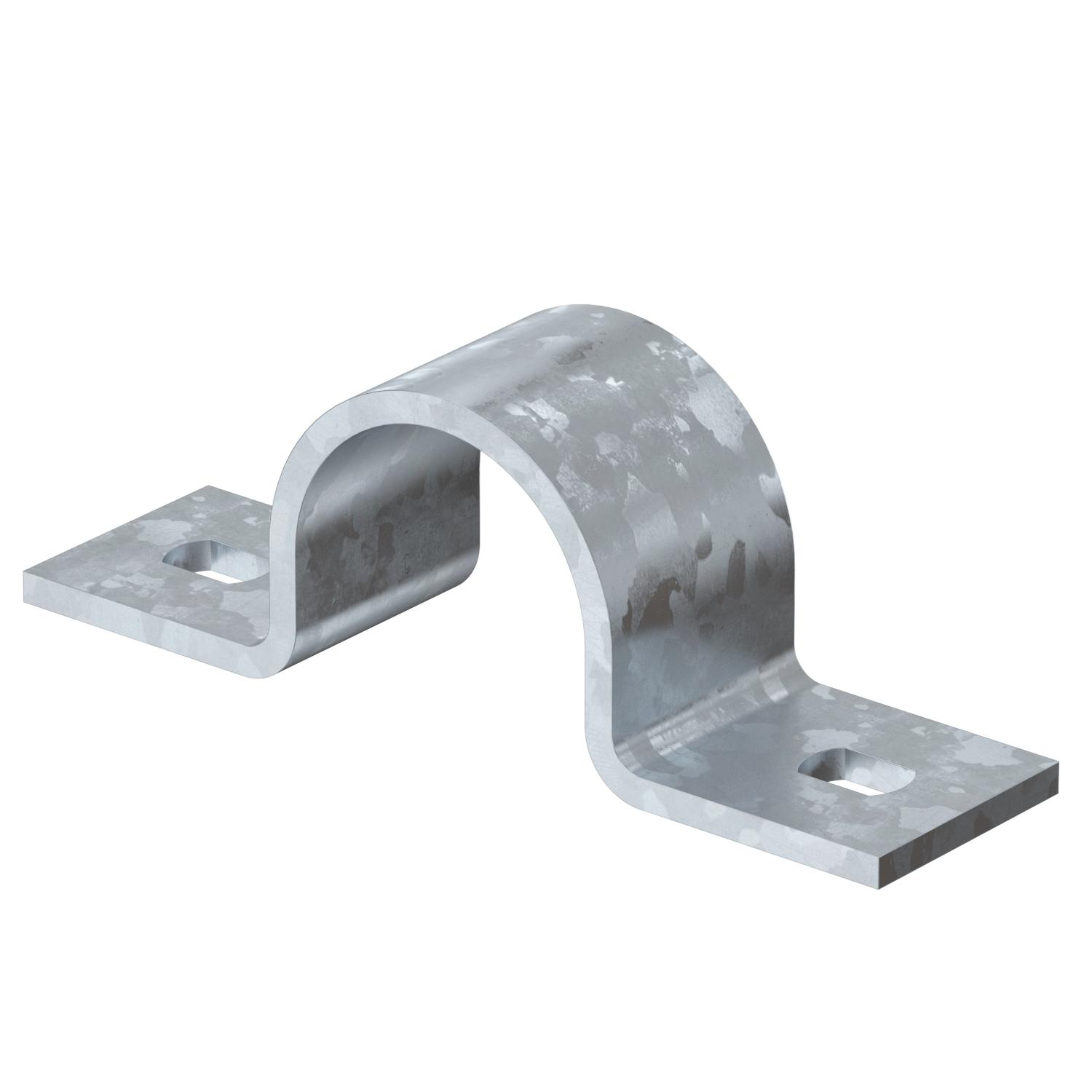

Fastening clip 823, heavy duty
Item no. 1015496 | EAN 4012195567738
- Product description
-
Product descriptionFastening clip, double-lobe, 32 mm
-
- Technical data
-
Technical data

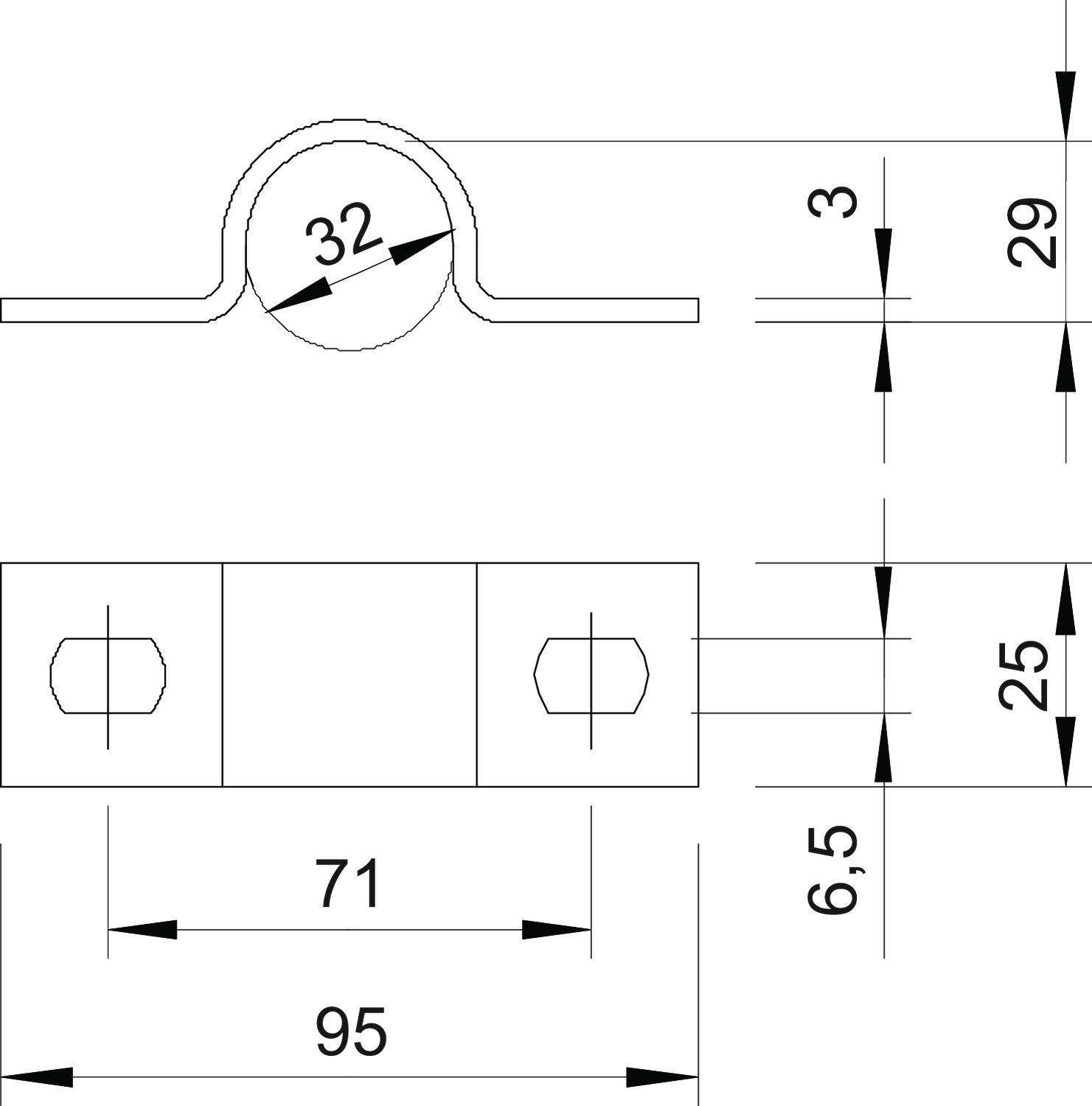

CO₂ Footprint (GWP) Cradle-to-Gate 0,1573 kg CO₂e / 1 Piece Dimension 32mm Dimension A 95 mm Dimension B 71 mm Dimension b 25 mm Dimension D 32 mm Dimension d 6,5 mm Dimension e 10 mm Dimension H 29 mm Dimension t 3 mm Distance to the wall no Fastening type Screw hole For diameter 32 Halogen-free yes Height 29 mm Hole size 6,5 x 10 mm Length 95 mm Material Steel Material thickness 3 mm Nominal diameter 32 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no Surface Hot-dip galvanised UV-resistant yes Version for Two-lobe Width 25 mm - All types
-
All types
- Downloads
-
Data sheet 823 32 FT / 1015496 , 0.20MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 823 32 FT / 1015496 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity 823 32 FT / 1015496 , 0.09MB , pdfREACH Declaration of conformity 823 32 FT / 1015496 , 0.12MB , pdfRoHS Declaration of conformity 823 32 FT / 1015496 , 0.12MB , pdf
