Fastening clip 823, heavy duty
Item no. 1015486 | EAN 4012195015611
- Product description
-
Product descriptionFastening clip, double-lobe, 59.3 mm
-
- Technical data
-
Technical data

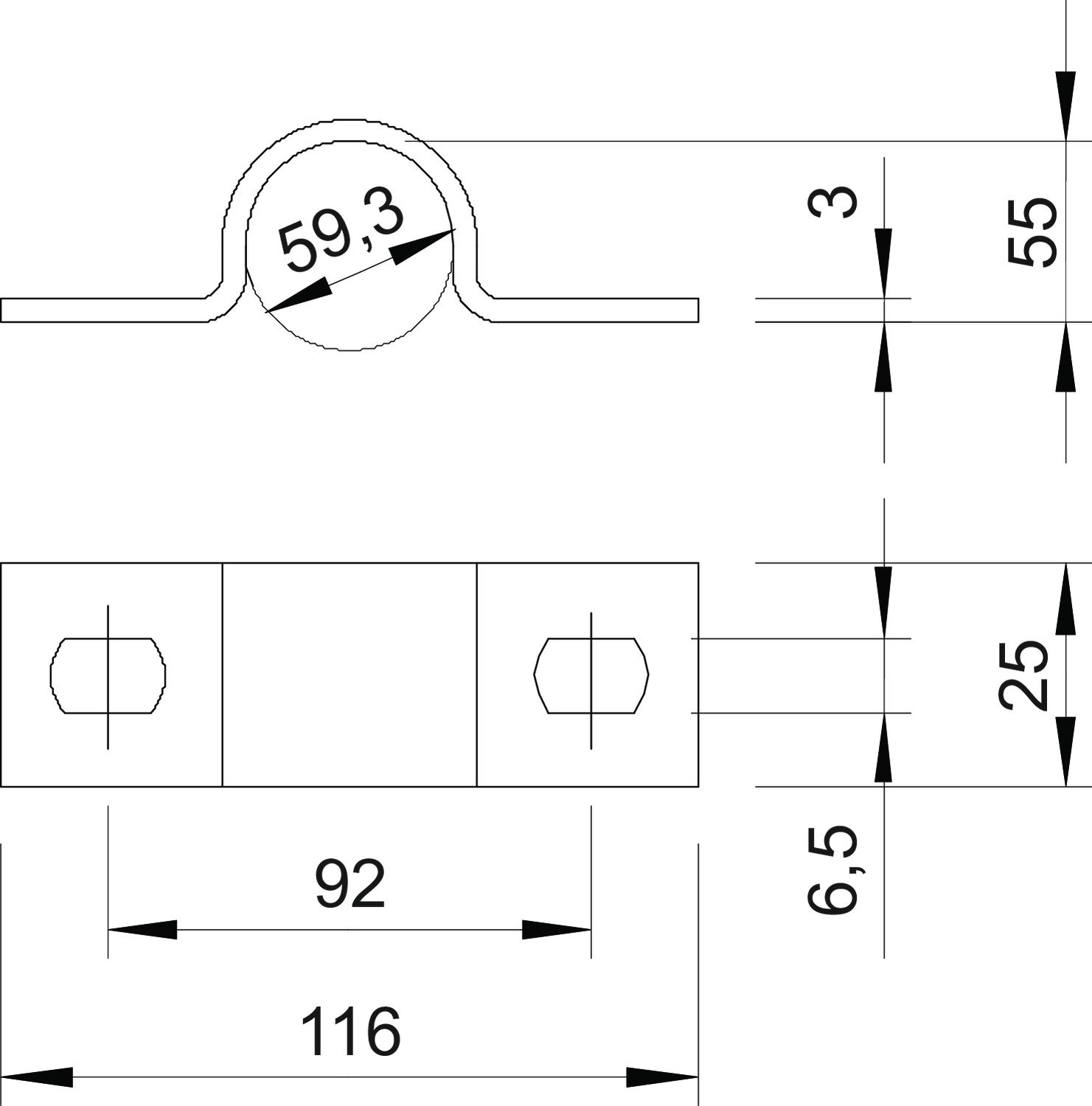

CO₂ Footprint (GWP) Cradle-to-Gate 0,2482 kg CO₂e / 1 Piece Dimension 59,3mm Dimension A 116 mm Dimension B 92 mm Dimension b 25 mm Dimension d 6,5 mm Dimension D 59,3 mm Dimension e 10 mm Dimension H 55 mm Dimension t 3 mm Distance to the wall no Fastening type Screw hole For diameter 59,3 Halogen-free yes Height 55 mm Hole size 6,5 x 10 mm Length 116 mm Material Steel Material thickness 3 mm Nominal diameter 59,3 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no Surface Hot-dip galvanised UV-resistant yes Version for Two-lobe Width 25 mm - All types
-
All types
- Downloads
-
Data sheet 823 59.3 FT / 1015486 , 0.21MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 823 59.3 FT / 1015486 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity 823 59.3 FT / 1015486 , 0.09MB , pdfREACH Declaration of conformity 823 59.3 FT / 1015486 , 0.12MB , pdfRoHS Declaration of conformity 823 59.3 FT / 1015486 , 0.12MB , pdf
