Fastening panels
Item no. 6288005 | EAN 4012195676195
- Product description
-
Product description

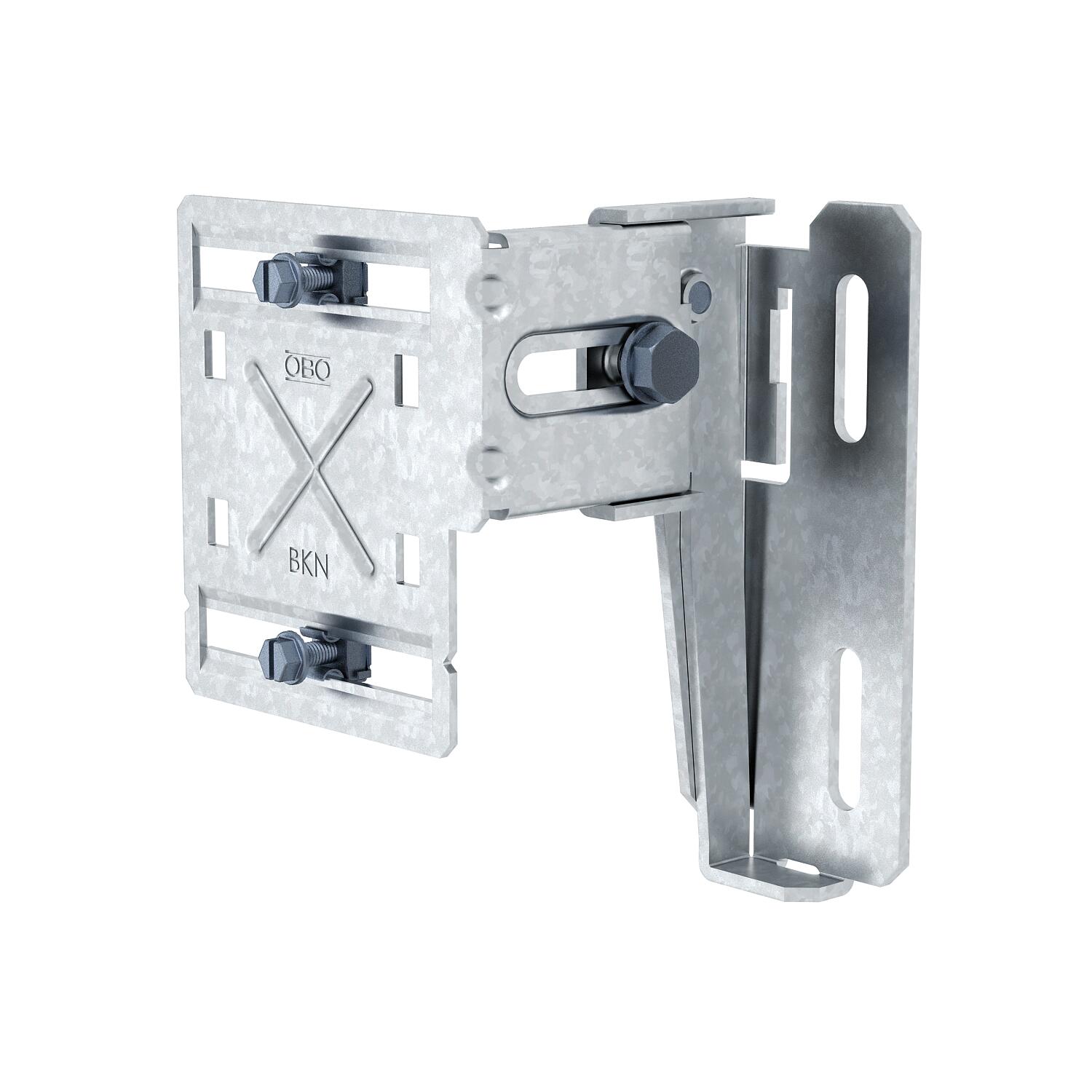

Fastening panel for mounting device installation trunking on skirting board constructions and as a support for the convection grid. The fastening panel can be used for all Rapid 80 device installation trunking systems of type GK and GA. When mounting plastic GK device installation trunking, the matching wall panel adapter is also required. The connection profile is required for mounting double trunking of type GS-D70170 and GS-D90170, as well as for GS trunking with a nominal width of 210 mm.
The mesh slats are simply attached to the slat holder.
-
- Technical data
-
Technical data

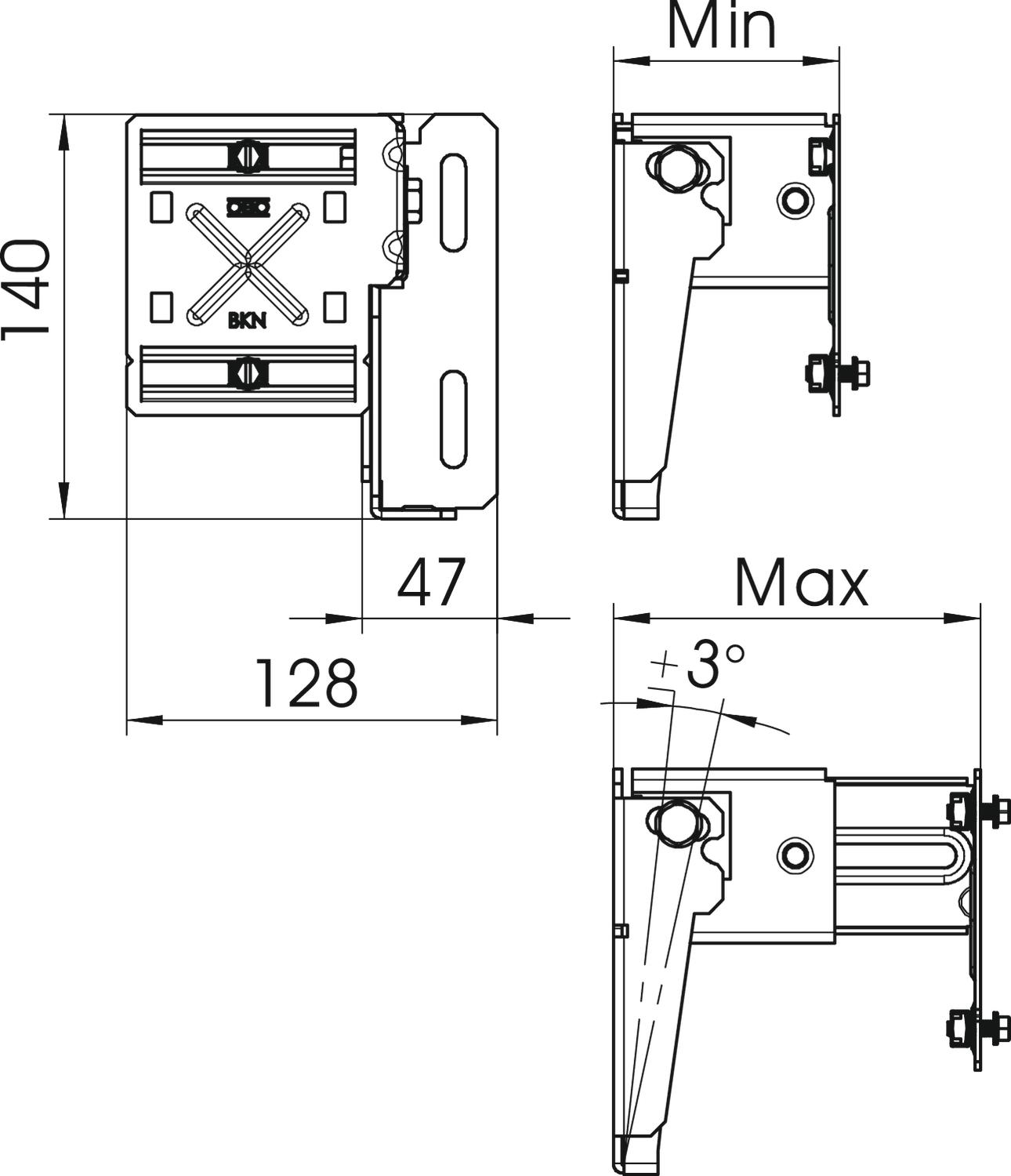

Dimension 140x128x205 Fastening type Screw-on Height 140 mm Length 205 mm Material Steel Spacing from wall, max. 205 mm Spacing from wall, min. 120 mm Surface Strip galvanized Trunking mounting Screw Version for 120–205 mm Version for Wall mounting Width 128 mm - All types
- Downloads
-
Data sheet BKN120 205 / 6288005 , 0.22MB , pdfDeclaration of conformity BKN120 205 / 6288005 , 0.13MB , pdfUK Declaration of Conformity BKN120 205 / 6288005 , 0.14MB , pdfREACH Declaration of conformity BKN120 205 / 6288005 , 0.12MB , pdfRoHS Declaration of conformity BKN120 205 / 6288005 , 0.28MB , pdfNo invitation to tender text is available for this product.
