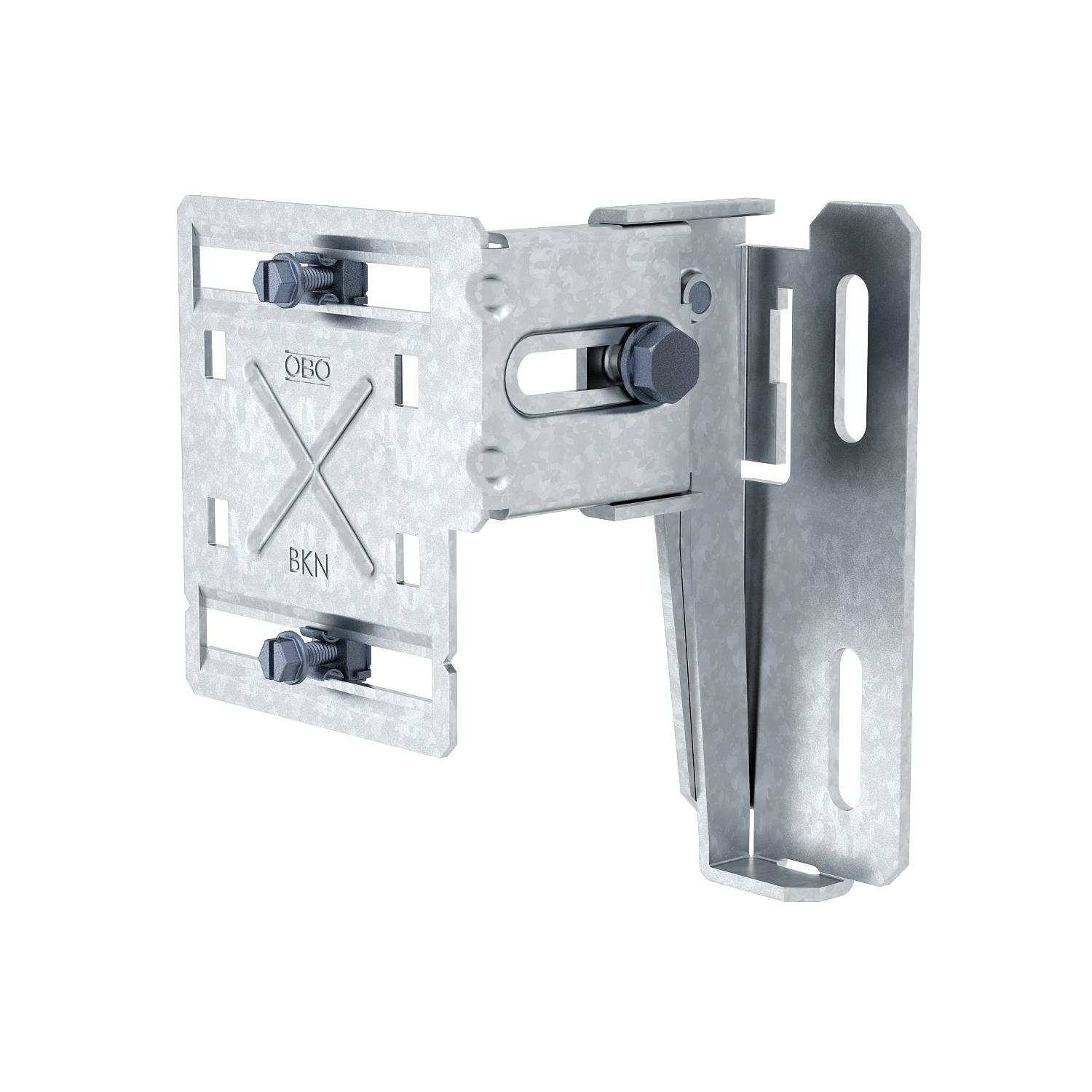

Fastening panels
Item no. 6288007 | EAN 4012195676201
- Product description
-
Product description
Fastening panel for mounting device installation trunking on skirting board constructions and as a support for the convection grid. The fastening panel can be used for all Rapid 80 device installation trunking systems of type GK and GA. When mounting plastic GK device installation trunking, the matching wall panel adapter is also required. The connection profile is required for mounting double trunking of type GS-D70170 and GS-D90170, as well as for GS trunking with a nominal width of 210 mm.
The mesh slats are simply attached to the slat holder.
-
- Technical data
-
Technical data

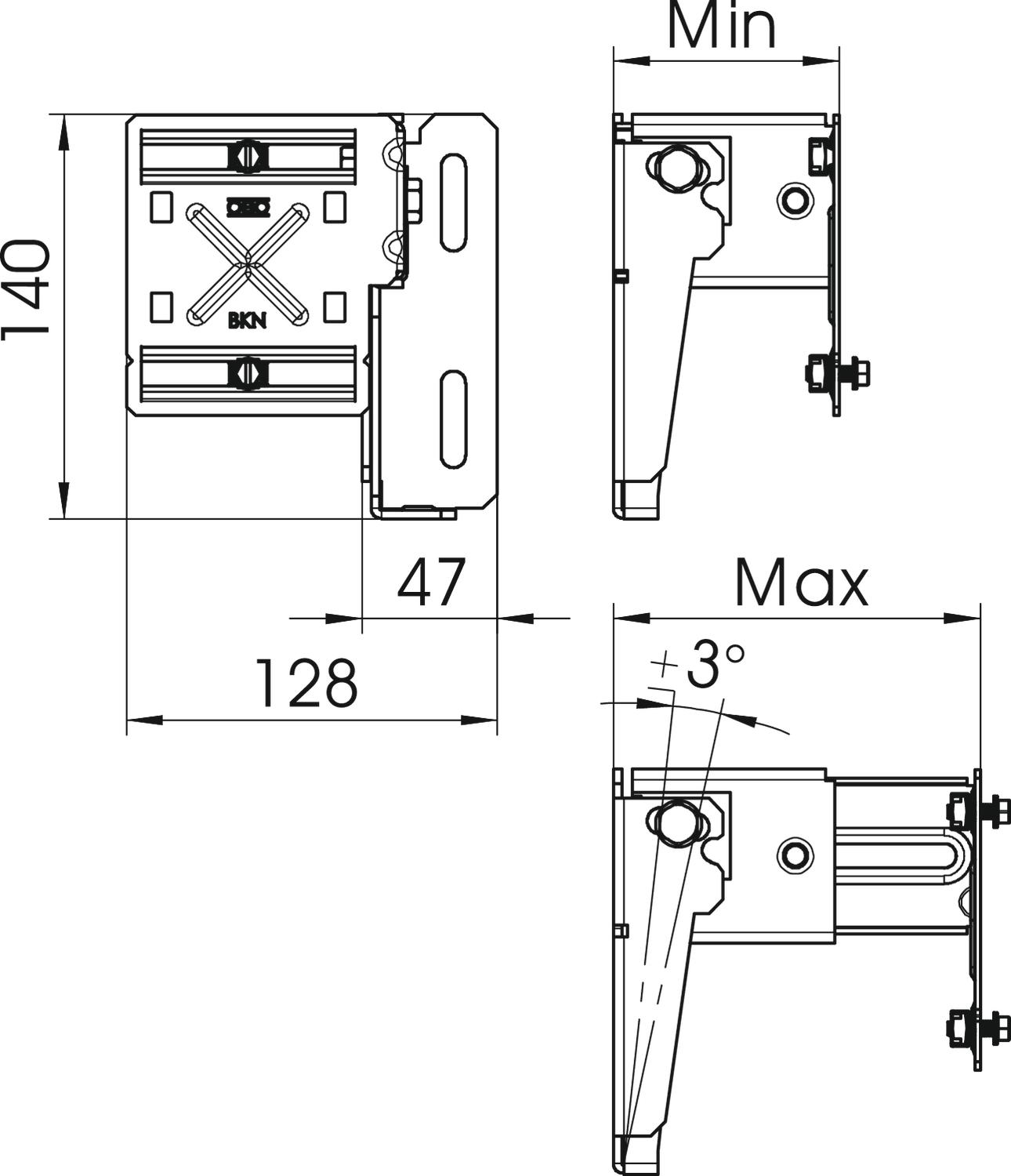

Dimension 140x128x351 Fastening type Screw-on Material Steel Spacing from wall, max. 351 mm Spacing from wall, min. 198 mm Surface Strip galvanized Trunking mounting Screw Version for Wall mounting Version for 198–351 mm Dimensions
Height 140 mm Length 351 mm Width 128 mm - All types
- Downloads
-
Data sheet BKN200 350 / 6288007 , 0.29MB , pdfDeclaration of conformity BKN200 350 / 6288007 , 0.13MB , pdfUK Declaration of Conformity BKN200 350 / 6288007 , 0.14MB , pdfREACH Declaration of conformity BKN200 350 / 6288007 , 0.12MB , pdfRoHS Declaration of conformity BKN200 350 / 6288007 , 0.28MB , pdfNo invitation to tender text is available for this product.
