Fastening panels

Item no. 6288001 | EAN 4012195676140

Product description

Product description

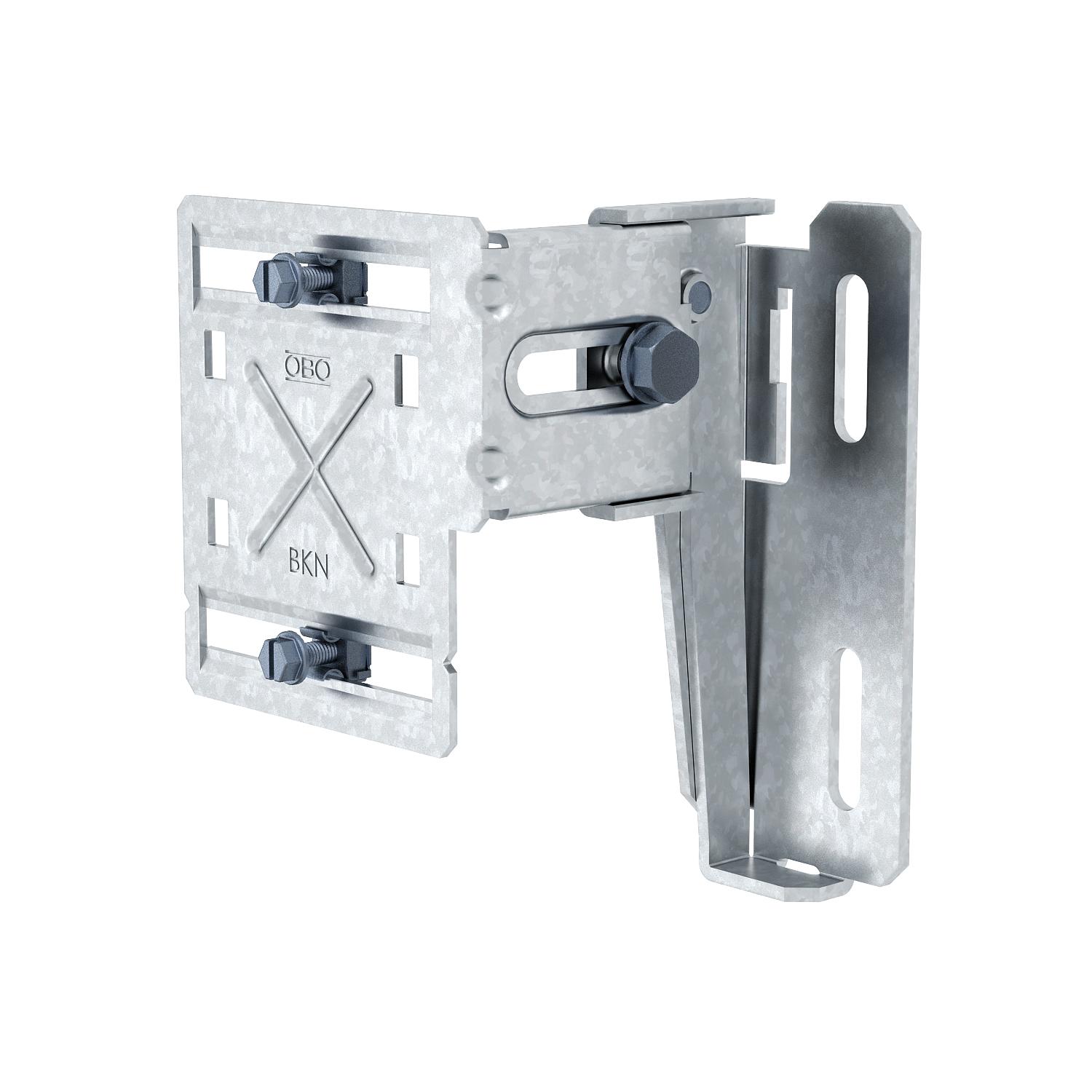

Fastening panel for mounting device installation trunking on skirting board constructions and as a support for the convection grid. The fastening panel can be used for all Rapid 80 device installation trunking systems of type GK and GA. When mounting plastic GK device installation trunking, the matching wall panel adapter is also required. The connection profile is required for mounting double trunking of type GS-D70170 and GS-D90170, as well as for GS trunking with a nominal width of 210 mm.


The mesh slats are simply attached to the slat holder.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

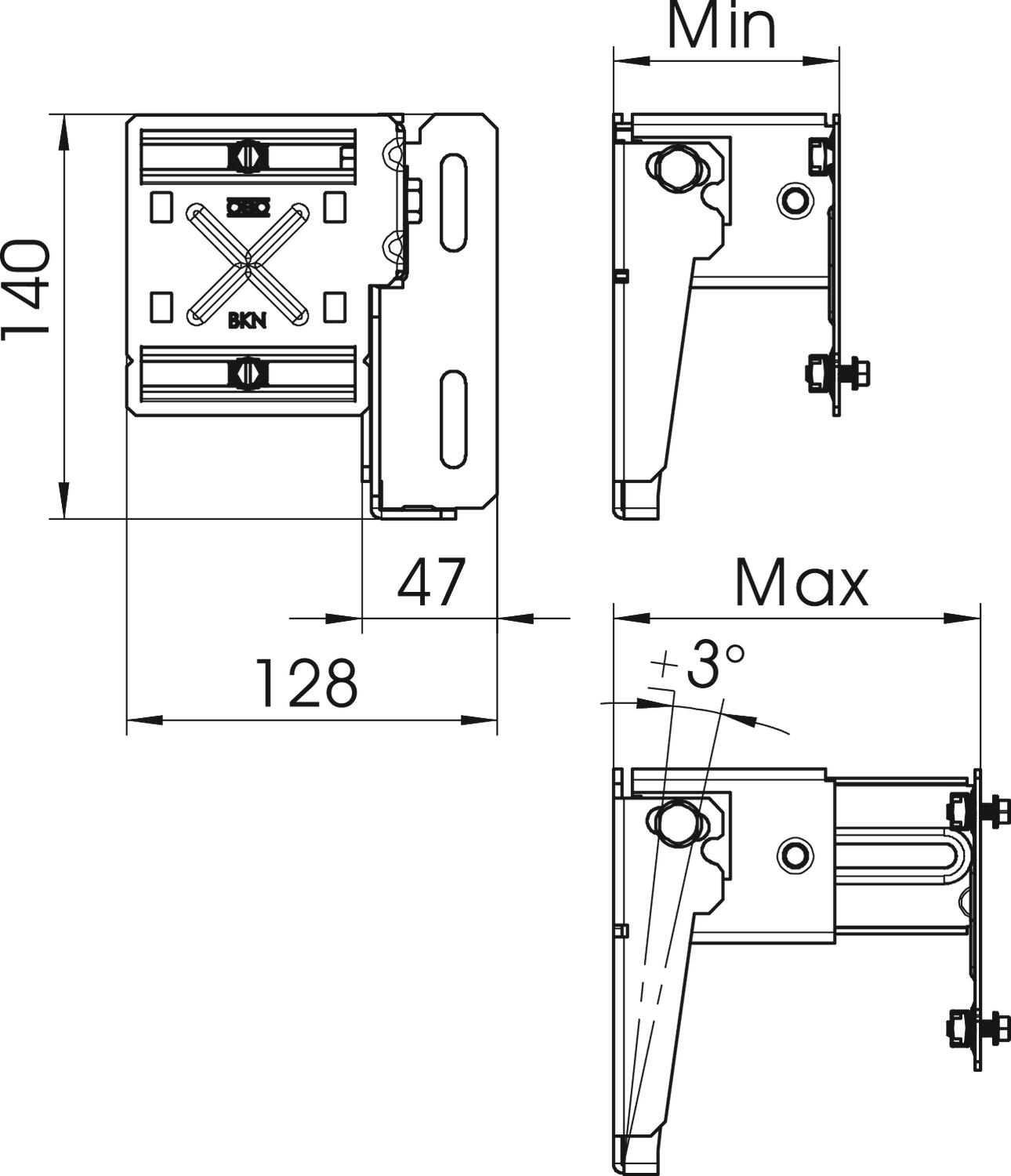

Dimension 140x128x83
Fastening type Screw-on
Height 140 mm
Length 83 mm
Material Steel
Spacing from wall, max. 83 mm
Spacing from wall, min. 53 mm
Surface Strip galvanized
Trunking mounting Screw
Version for Wall mounting
Version for 53–83 mm
Width 128 mm
All types

All types

Types Version for Item no. Quantity SSU
BKN50 80 53–83 mm 6288001
1 piece
BKN75 125 78–127 mm 6288003
1 piece
BKN120 205 120–205 mm 6288005
1 piece
BKN200 350 198–351 mm 6288007
1 piece
Downloads

Download

Declaration of conformity BKN50 80 / 6288001 , 0.13MB , pdf
Download
REACH Declaration of conformity BKN50 80 / 6288001 , 0.12MB , pdf
RoHS Declaration of conformity BKN50 80 / 6288001 , 0.28MB , pdf

No invitation to tender text is available for this product.
