Fastening panels
Item no. 6288003 | EAN 4012195676188
- Product description
-
Product description

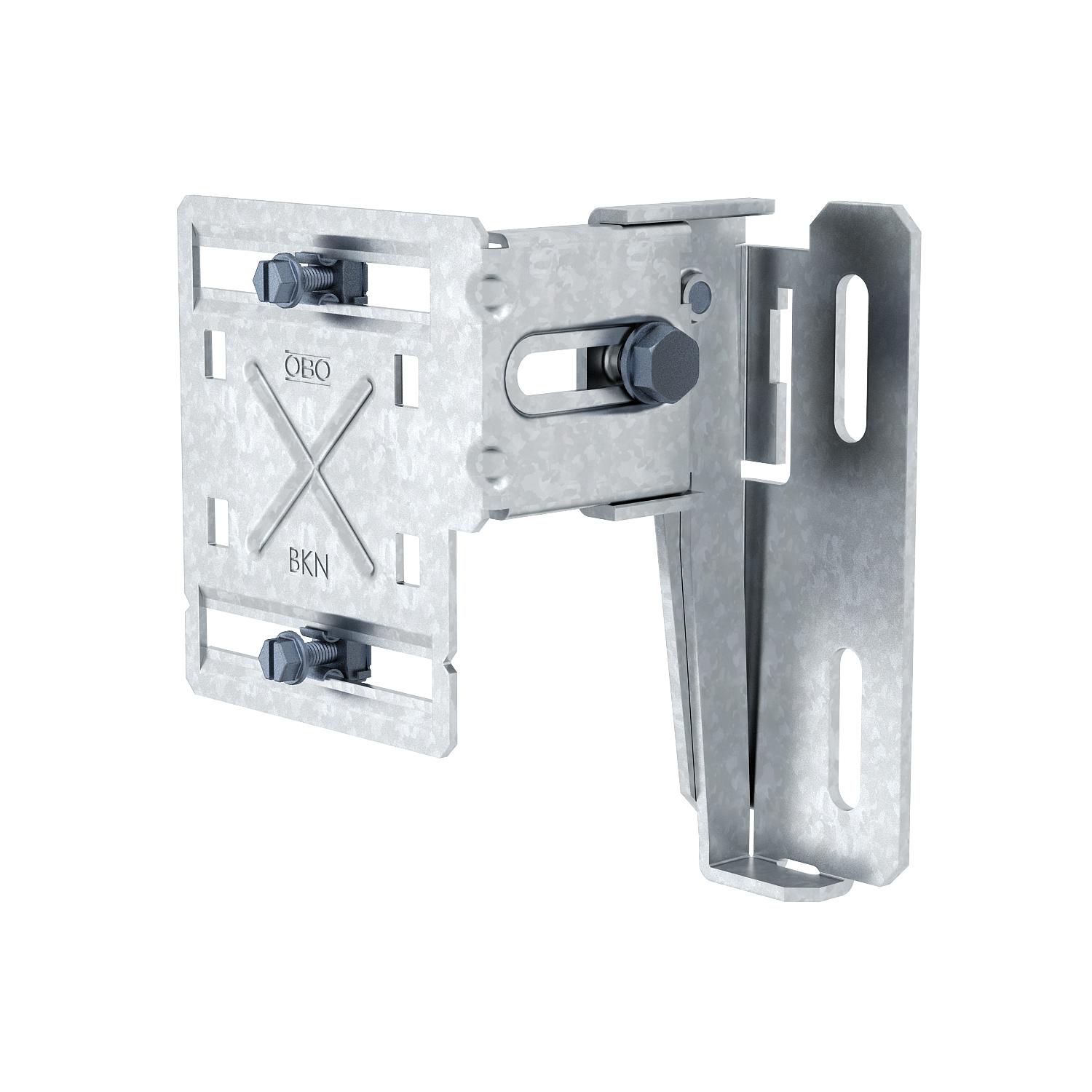

Fastening panel for mounting device installation trunking on skirting board constructions and as a support for the convection grid. The fastening panel can be used for all Rapid 80 device installation trunking systems of type GK and GA. When mounting plastic GK device installation trunking, the matching wall panel adapter is also required. The connection profile is required for mounting double trunking of type GS-D70170 and GS-D90170, as well as for GS trunking with a nominal width of 210 mm.
The mesh slats are simply attached to the slat holder.
-
- Technical data
-
Technical data

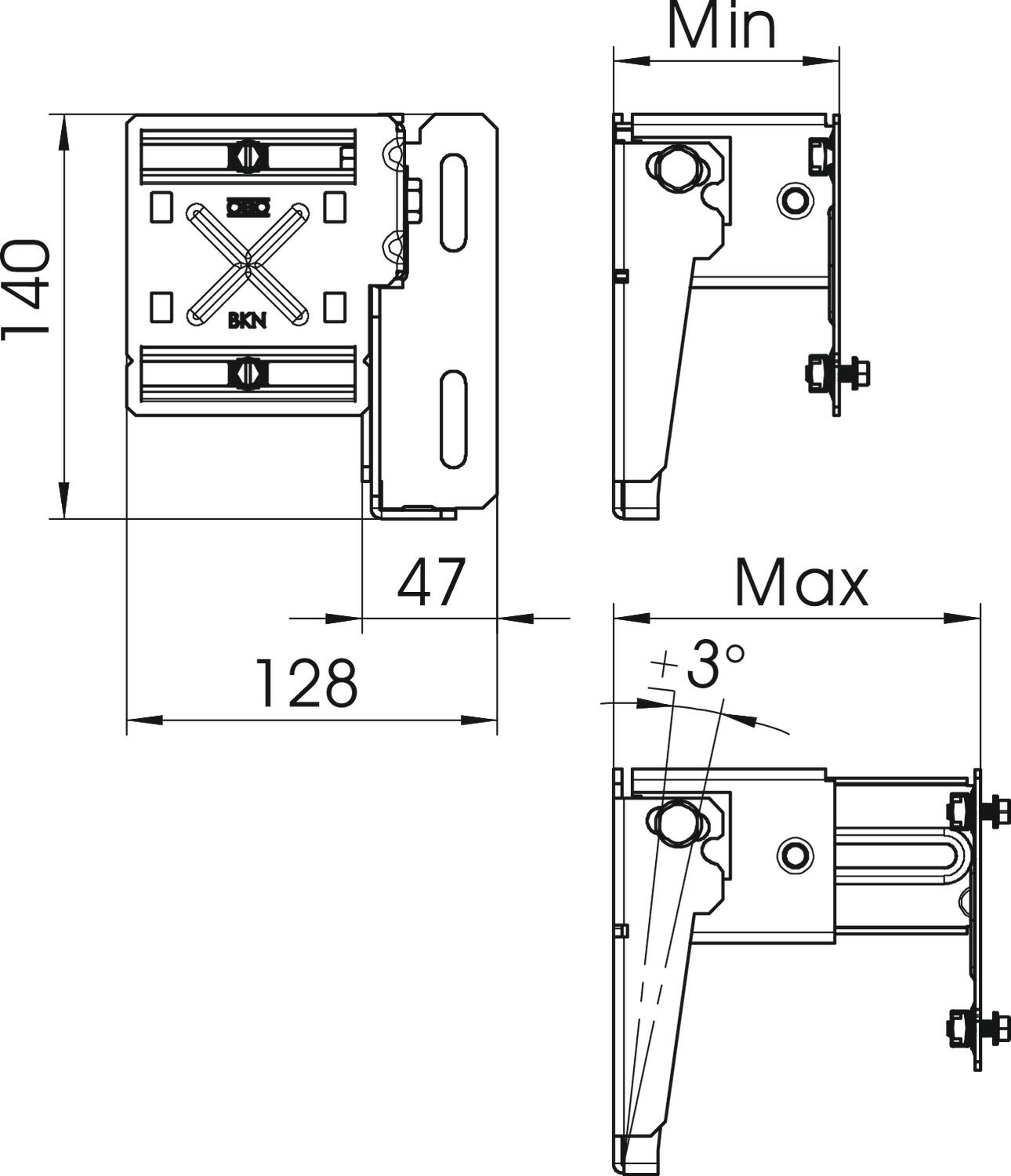

Dimension 140x128x127 Fastening type Screw-on Material Steel Spacing from wall, max. 127 mm Spacing from wall, min. 78 mm Surface Strip galvanized Trunking mounting Screw Version for Wall mounting Version for 78–127 mm Dimensions
Height 140 mm Length 127 mm Width 128 mm - All types
- Downloads
-
Data sheet BKN75 125 / 6288003 , 0.24MB , pdfDeclaration of conformity BKN75 125 / 6288003 , 0.13MB , pdfUK Declaration of Conformity BKN75 125 / 6288003 , 0.14MB , pdfREACH Declaration of conformity BKN75 125 / 6288003 , 0.12MB , pdfRoHS Declaration of conformity BKN75 125 / 6288003 , 0.28MB , pdfNo invitation to tender text is available for this product.
