Fastening pin for mounting plates

Item no. 2007831 | EAN 4012195615910

Product description

Product description

Metal fastening pin for fastening the T series onto mounting plates or other thin-walled supporting structures. Mounted by simply pressing the bolt into the fastening holes in the T series. Easy removal with a screw thread.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

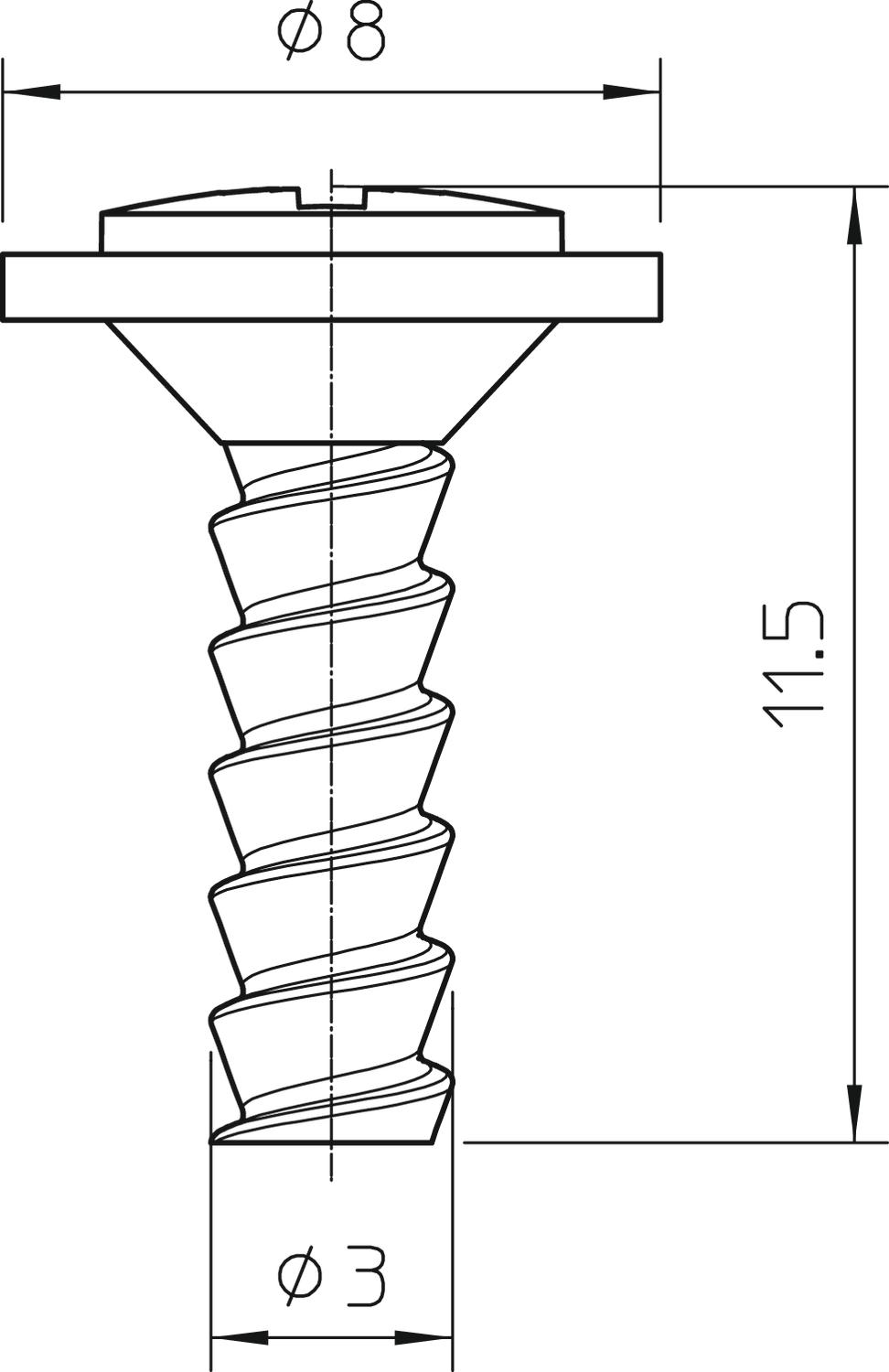

Dimension Ø3,5x10
Dimension D 3,5 mm
Dimension L 11,5 mm
Length 11,5 mm
Material Steel
Screw system Phillips PH with screw slot
Surface Electrogalvanized
Thread M3
Thread metric 3
All types

All types

Types Width Height Item no. Quantity SSU
T-S MST 2007831
1000 piece
