Fastening plate 40 | 16 | 42
morepic-1 morepic-2 video-1

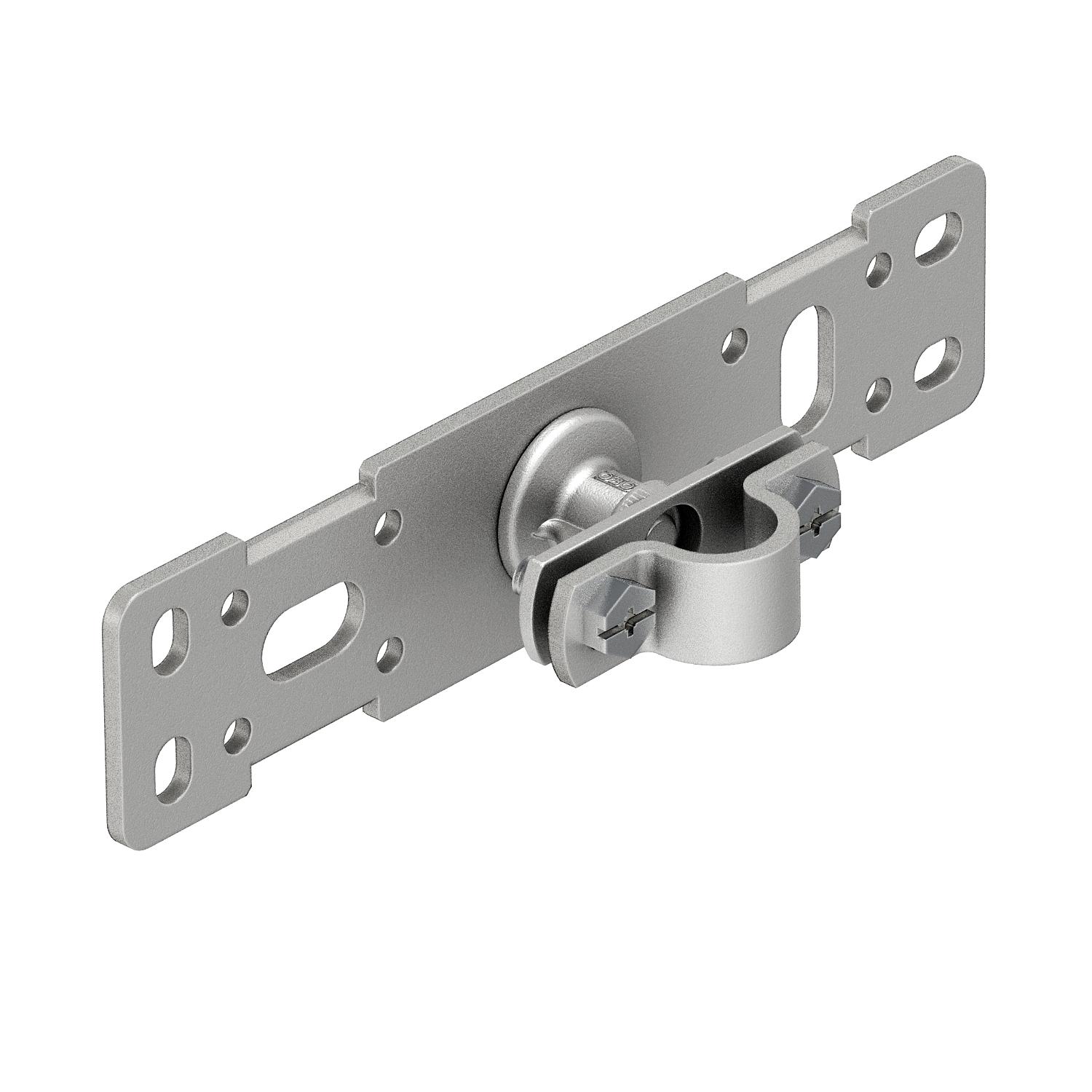

Fastening plate

Item no. 5408984 | EAN 4012195613367

5408984 / 101 BP-16
40 mm
16 mm
42 mm
Product description

Product description

• To mount insulating rods on constructions or walls

• Plate made of VA stainless steel

• Holder and crosspiece for 16 and 20 mm rods and Rd 8−10 mm
Technical data

Technical data

Connection Round conductor

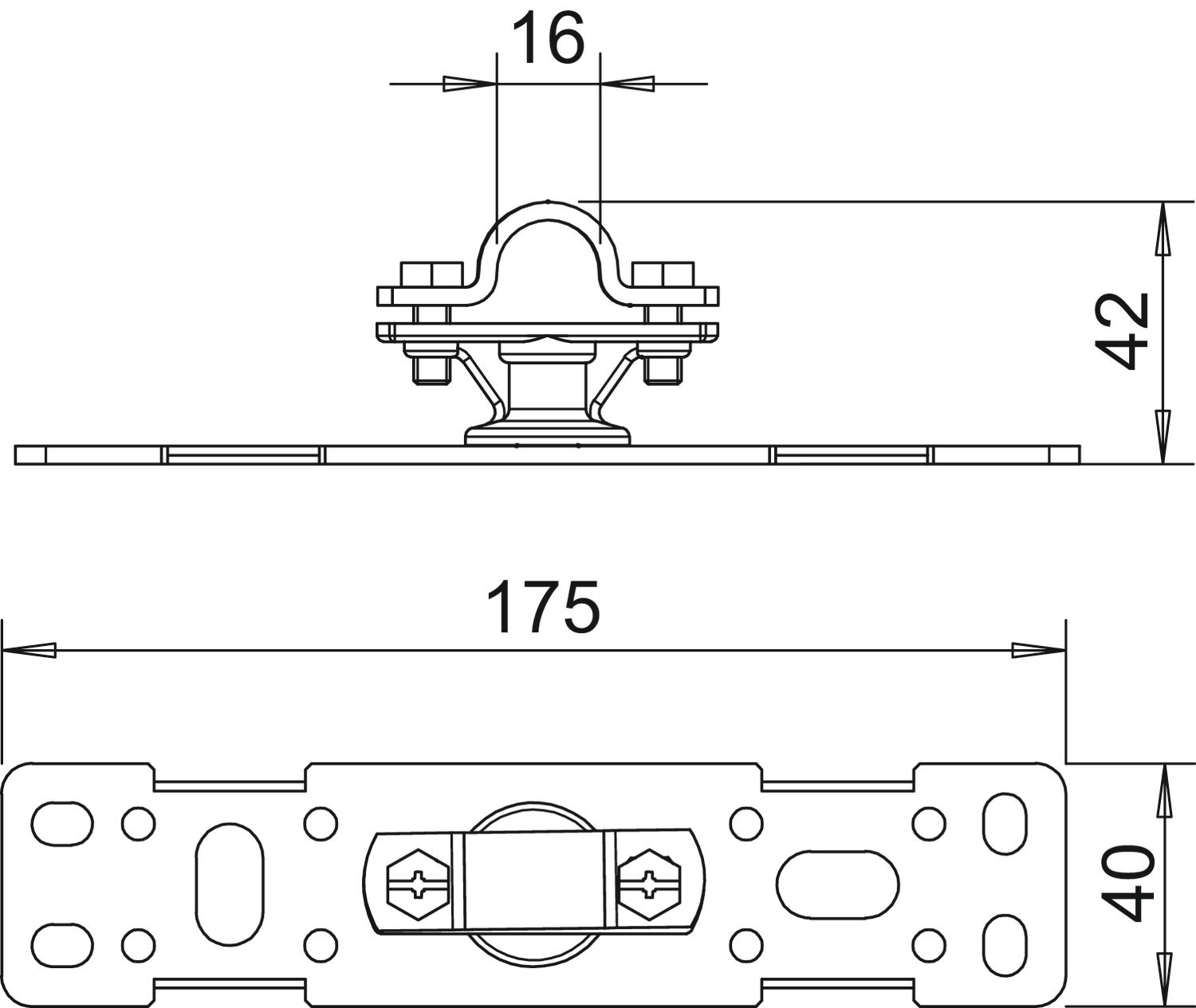

Dimension 175x40x42
Dimension B 40 mm
Dimension d min. 16 mm
Dimension H 42 mm
Dimension L 175 mm
Length 175 mm
All types

All types

Types Dimension B Dimension d min. Dimension H Item no. Quantity SSU
101 BP-16 40 mm 16 mm 42 mm 5408984
10 piece
