- Product description
-

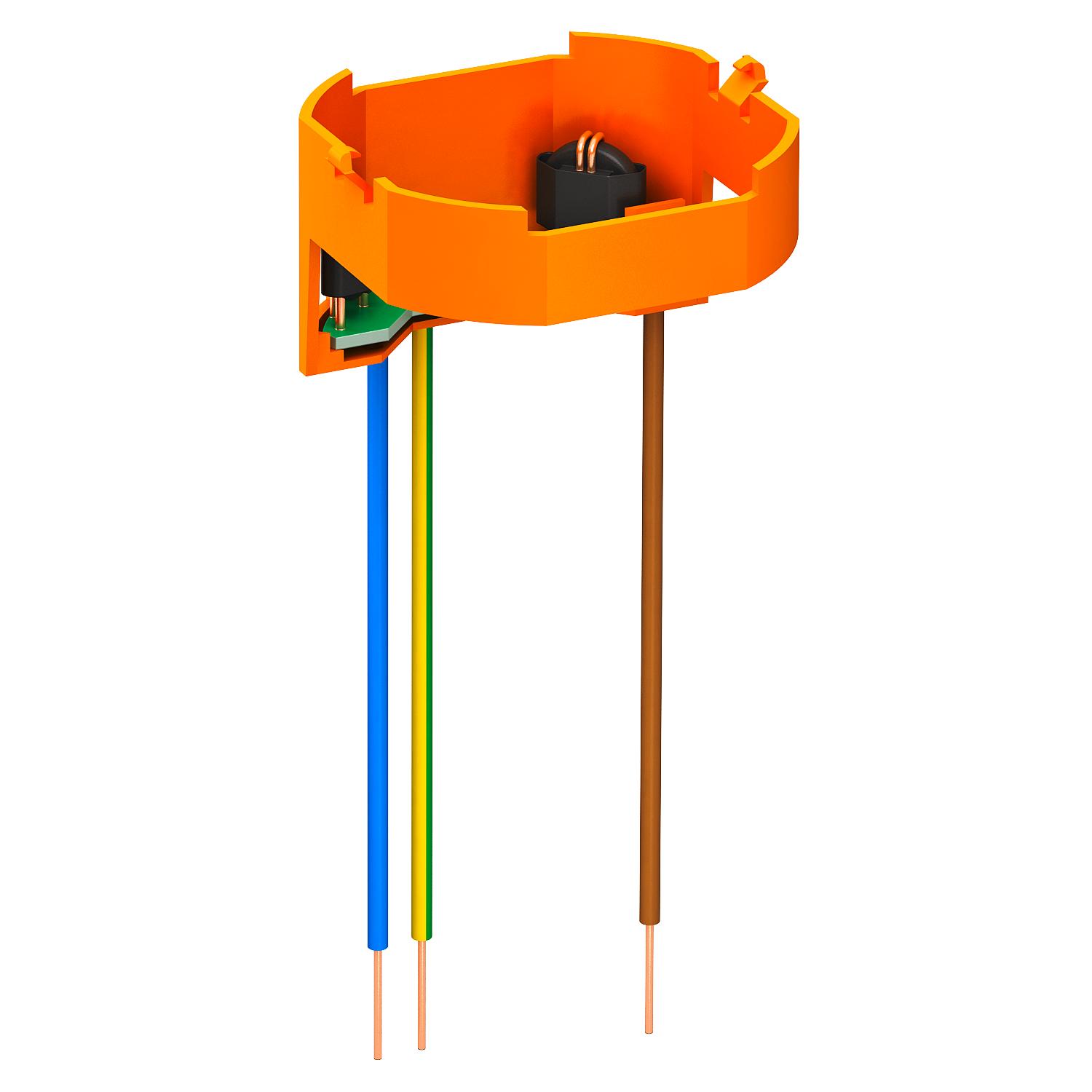

Product descriptionSurge protection / fine power protection, type 3, to EN 61643-11 for protective contact sockets.
• Thermal cut-off unit with acoustic defect signalling
• Y protection circuit for increased safety
• Mounting through snapping onto the support ring of the socket
• Halogen-free plastic (UL 94 V-0)
• Labelling of the socket with supplied sign
Application: For retrofitting on standard Schuko sockets.

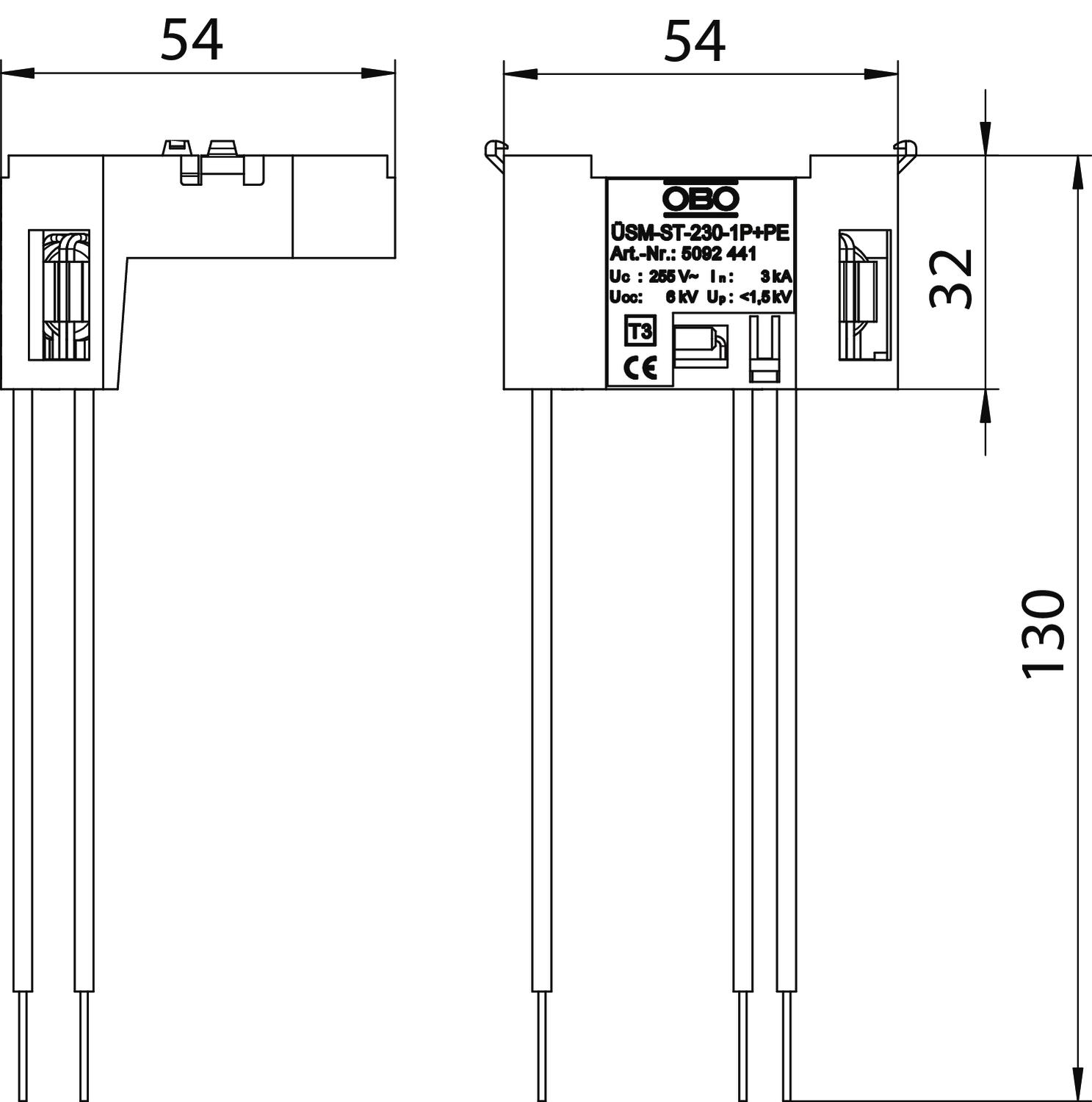

- Technical data
-
Connectivity options
Arrester surge current (8/20 µs) [total] 5 kA Cable type for surge protection devices Power cable AV Combined voltage protection level [L-PE] 1500 kV Connecting cable length 0,1 m Dimension 230V Installation type Wall socket Lightning protection zone LPZ 2→3 Max. mains-side overcurrent protection 16 Maximum back-up fuse 16 A Maximum continuous voltage AC 255 V Maximum discharge current (8/20 μs) 5 kA Network form Other Nominal discharge current (8/20 µs) 3 kA Nominal voltage AC (50/60 Hz) 230 V OBO_Nominal load current (input/output terminal) 16 A Operating temperature, max. 40 °C Operating temperature, min. -5 °C Pole number 2 Protection level wire-earth 1500 V Protection level [L-N] ≤1500 Protection rating IP20 Remote signalling no Response time <25 ns Signalling on device Acoustic SPD to EN 61643-11 Type 3 SPD to IEC 61643-1 Class III Test class, type 3 yes Version for Acoustic function display - All types
