Fine protection for 9-pole RS485 interface 9 | SUB-D-9; V11 RS485 | | 8 | D-Sub 9-pin

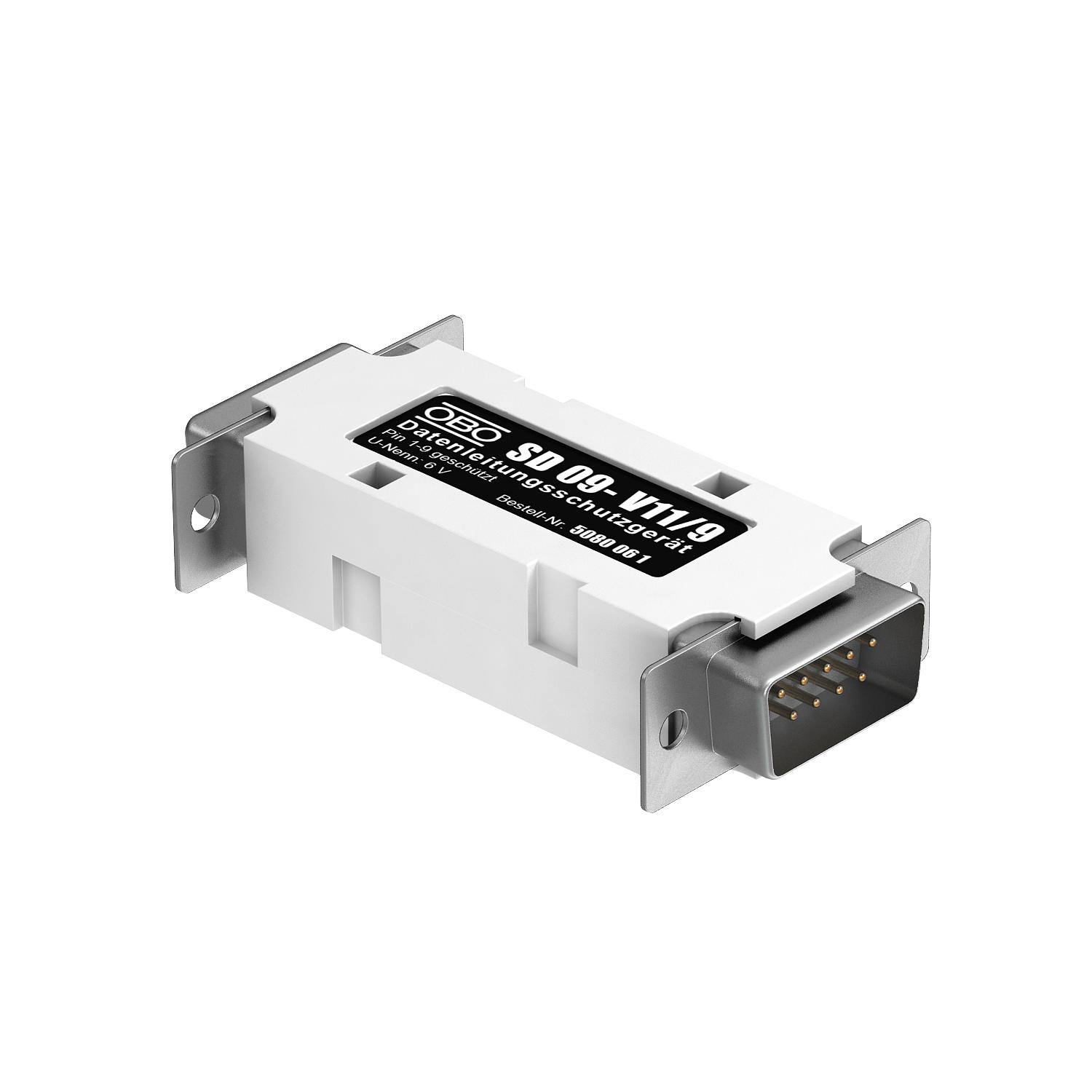

Fine protection for 9-pole RS485 interface

Item no. 5080061 | EAN 4012195916277

Item no. / Types

Number of poles

Version for

Maximum continuous voltage DC

Plug-in system

Product description

Product description

Data cable protection device for serial interfaces

• Various connection technologies available
• Low voltage protection level

Application: PLC, alarm systems, controllers

Technical data

Technical data

Arrestor monitoring	no
Dimension	6V
Explosion-tested version	no
Height	34 mm
Impulse durability wire-earth	0,75 kA (8/20µs)
Impulse durability wire-wire	0,75 kA (8/20µs)
Kategorie	Type 3 / C1
Length	60 mm
Lightning protection zone LPZ	2→3
Maximum continuous voltage AC	5,2
Maximum continuous voltage DC	8
Nominal voltage	6 V
Number of poles	9
Permitted temperature range, max.	80 °C
Permitted temperature range, min.	-40 °C

Plug-in system	D-Sub 9-pin
Protection level wire-earth	<100 V
Protection level wire-wire	<100 V
Protection level, wire-earth at 1 kV/µs (C3)	<10
Protection level, wire-wire at 1 kV/µs (C3)	<10 V
Protection rating	IP40
Response time	<10 ns
Screening	Direct
Shielding connection available	yes
SPD to IEC 61643-21	Class III / C1
Telecommunications contact	no
Testing standard	IEC 61643-21
Version for	SUB-D-9; V11 RS485
Width	16 mm
