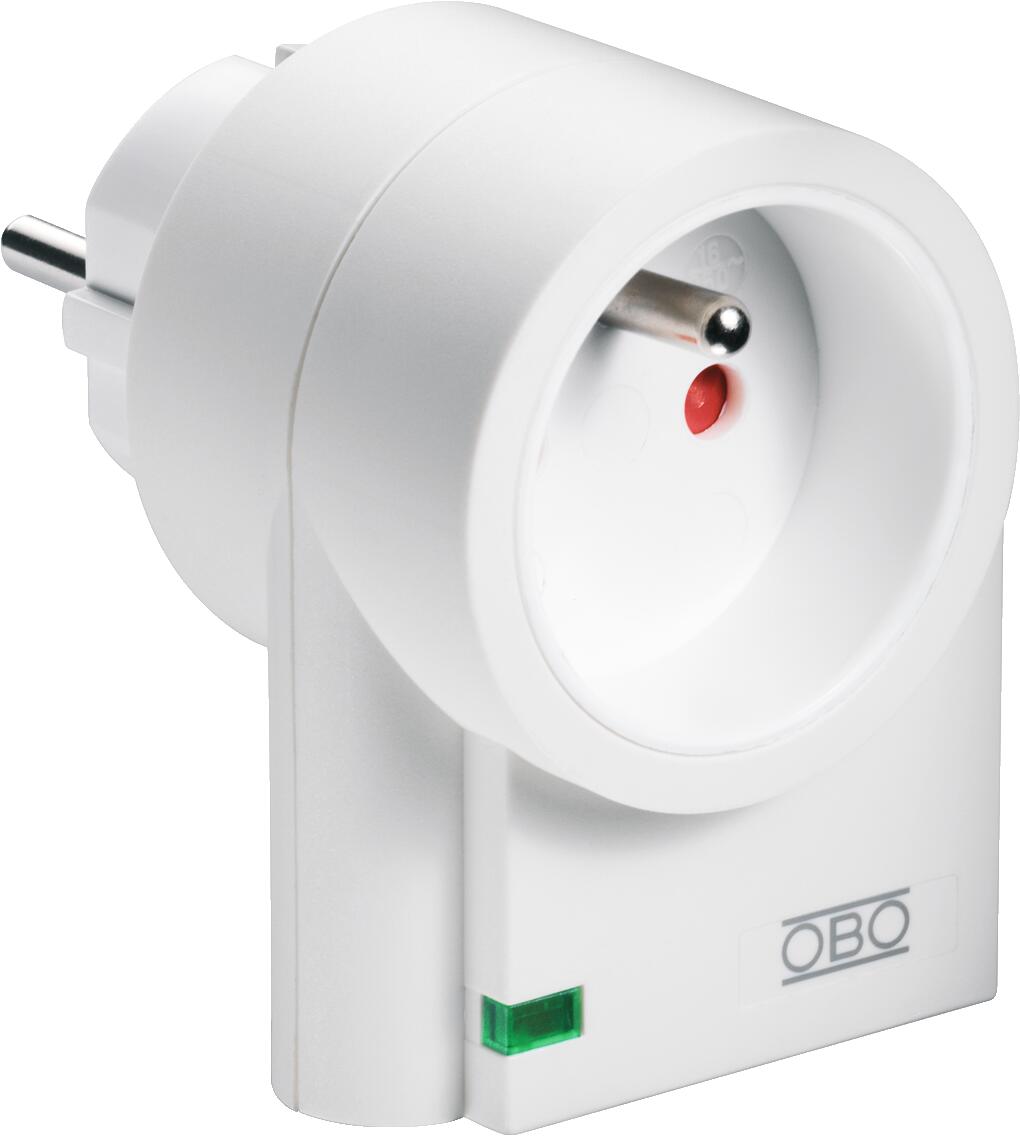

FineController FC-B for sockets B/F

Item no. 5092840 | EAN 4012195037972

5092840 / FC-B/F
B/F
Product description

Product description

Type 3 surge protection device to EN 61643-11
designed for use on protective contact sockets of the B/F country version.

• Adapter
• Disconnection device and function display
• With increased touch protection
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection device to DIN EN 61643-11 or IEC 61643-11
  • Transition from LPZ 2 to LPZ 3
Technical data

Technical data

Cable type for surge protection devices Power cable AV
Colour Pure white; RAL 9010
Country-specific version B/F
Dimension 230V
Lightning protection zone LPZ 2→3
Max. continuous operating voltage 275 V
Maximum back-up fuse 16 A
Nominal discharge surge current 3 kA
Nominal voltage 230 V
Permitted temperature range, max. 75 °C
Permitted temperature range, min. -25 °C
Protection level <1,5 kV
Protection level (L-N / L/N-PE) <1200 / <1500 V
Protection level (L-N) < 1,2 kV
Protection level (N-PE) < 1,5 kV
Protection rating IP20
Rated current 16 A
Response time <25 ns
Signalling on device Visual
SPD to EN 61643-11 Type 3
SPD to IEC 61643-1 Class III
Test class, type 3 yes
With interference suppression filter no
All types

All types

Types Country-specific version Item no. Quantity SSU
FC-B/F B/F 5092840
1 piece
