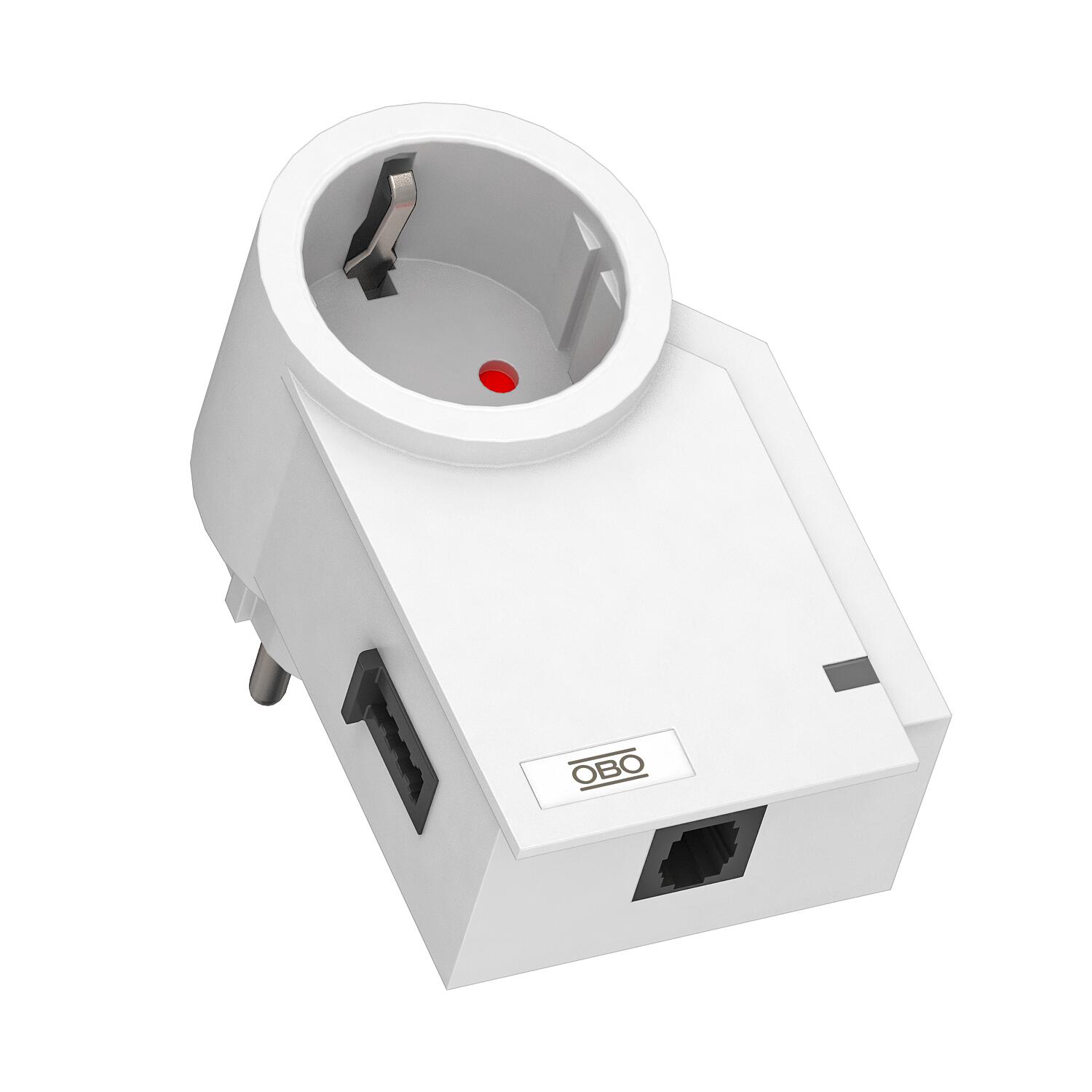

FineController FC-TAE for telephone systems and terminals
Item no. 5092824 | EAN 4012195035237
- Product description
-
Product descriptionType 3 combined surge protection to EN 61643-11, designed for use in telephone systems with TAE connection (telephones upstream of the NTBA/DSL splitter).
• Adapter connector
• Cut-off unit and function display
• With increased contact protection
• Incl. 0.5 m connection cable TAE / RJ11
• Maximum continuous voltage, TAE connection 200 V DC / 1.5 A (25 °C)
• Limit frequency: type 4 MHz / VDSL up to 46 MBit/s
Note: The technical data in the table below refers to the power supply.
-
- Technical data
-
Technical data
Blow-out no Cable type for surge protection devices Power cable AV Colour Pure white; RAL 9010 Country-specific version D Cut-off frequency 4 MHz Dimension 230V Frequency range, max. 4 Lightning protection zone LPZ 2→3 Max. continuous operating voltage 275 V Maximum back-up fuse 16 A Nominal discharge surge current 3 kA Nominal voltage 230 V Permitted temperature range, max. 75 °C Permitted temperature range, min. -25 °C Protection level < 1,5 kV Protection level (L-N / L/N-PE) <1200 / <1500 V Protection level (L-N) < 1,2 kV Protection level (N-PE) < 1,5 kV Protection rating IP20 Rated current 16 A Response time <25 ns Signalling on device Visual SPD to EN 61643-11 Type 3 SPD to IEC 61643-1 Class III Telecommunications contact no Test class, type 3 yes With interference suppression filter no - All types
