Fire protection plate, double perforated 220 | 220

morepic-1

morepic-2

Fire protection plate, double perforated

Item no. 7205464 | EAN 4012196814190

Item no. / Types	7205464 / GLB-PG3

Length	220 mm

Dimension L	220 mm

Product description

Product description

Perforated fire protection plate (material class A1) as an effective panelling measure to fasten on supporting wooden components for the maintenance of electrical function according to DIN 4102 Part 12. Made of fibreglass light concrete which is resistant to water and frost.

Technical data

Technical data

Colour	Grey
Dimension	220x120x20

Material	Fibreglass lightweight concrete
Type of accessory	Fire protection plate

Dimensions

Dimension L	220 mm
Height	20 mm

Length	220 mm
Width	120 mm

All types

All types

Types	Length	Dimension L	Item no.	Quantity	SSU
GLB-PG3	220 mm	220 mm	7205464	piece	1 piece

Downloads

Data sheet GLB-PG3 / 7205464 , 0.21MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Brochure Zwischendeckeninstallationen , 2.70MB , pdf

Flyer GLB pre-terminated fire protection plates , 2.00MB , pdf

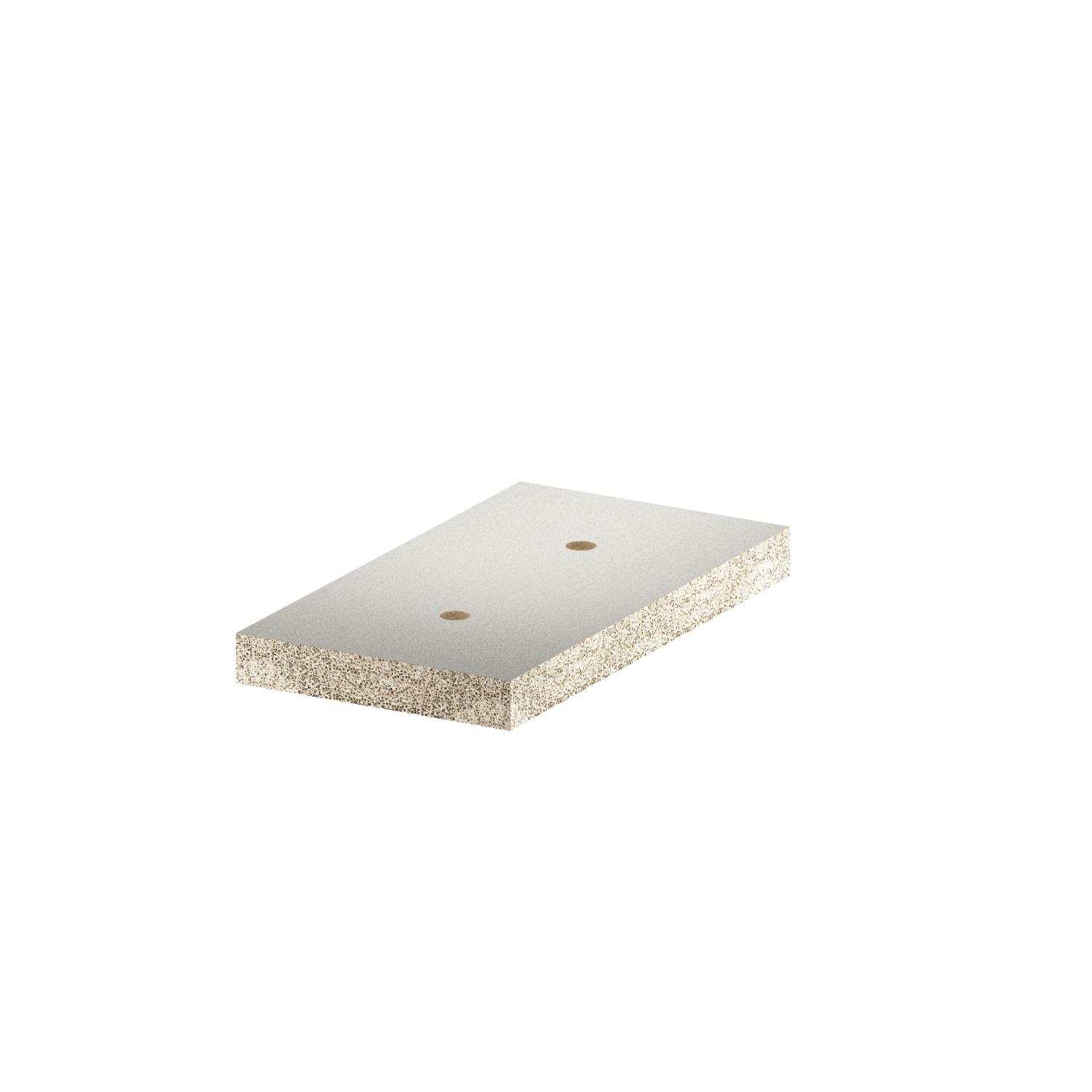

Product graphic GLB-PG3 / 7205464, 51.34 kB, jpg

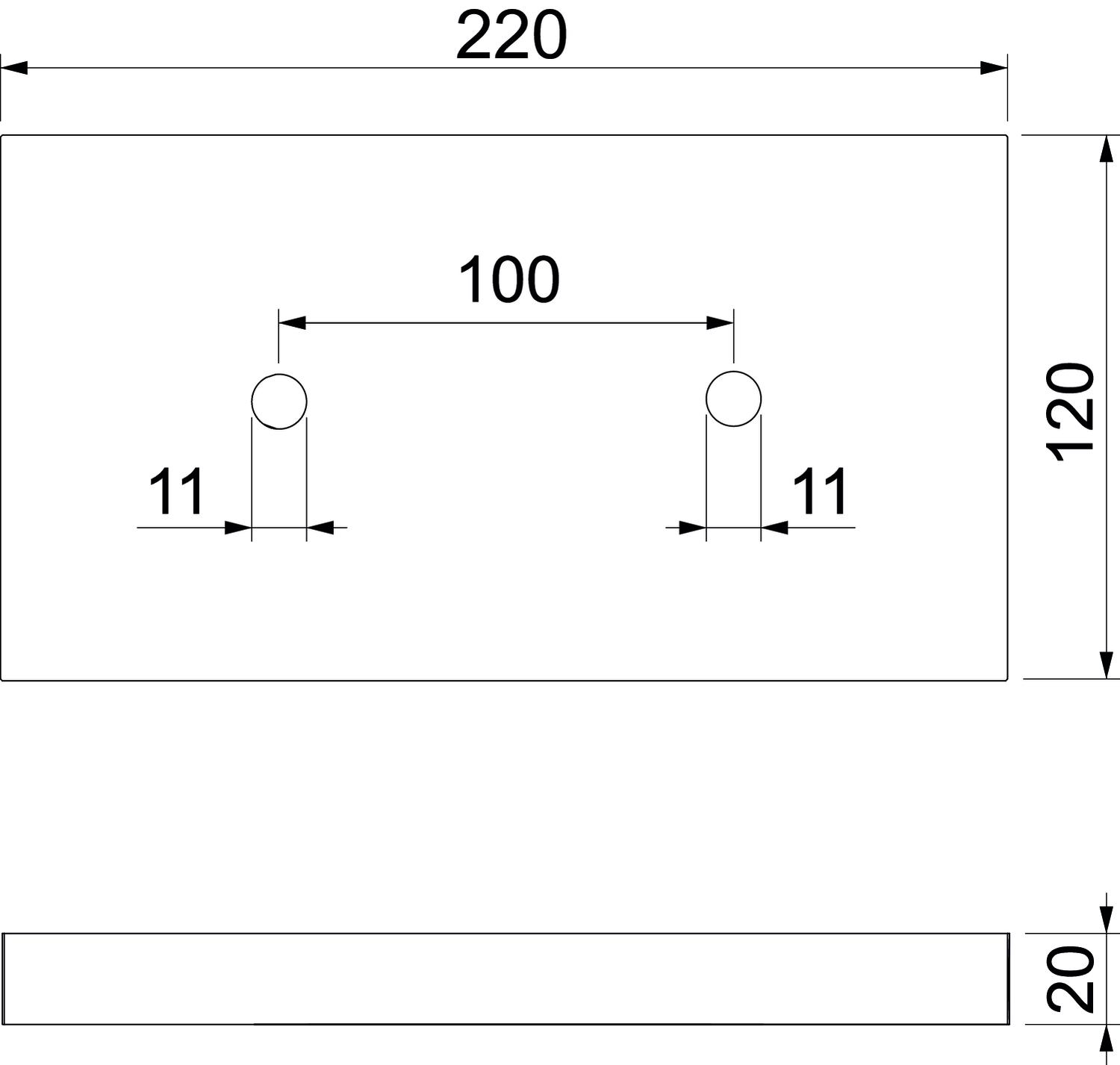

Scale drawing GLB-PG3 / 7205464, 51.46 kB, jpg

No invitation to tender text is available for this product.

7205464_KSTP1.stp, 35.67 kB
