Flange head screw HT 6

Item no. 3498134 | EAN 4012196563944

Item no. / Types

Length

Dimension D	6 mm

Product description

Product description

Self-tapping wood screw for fireproof fastening of cable systems for the maintenance of electrical function according to DIN 4102 Part 12 on supporting wooden structures. The flange head shape allows installation without an additional washer.

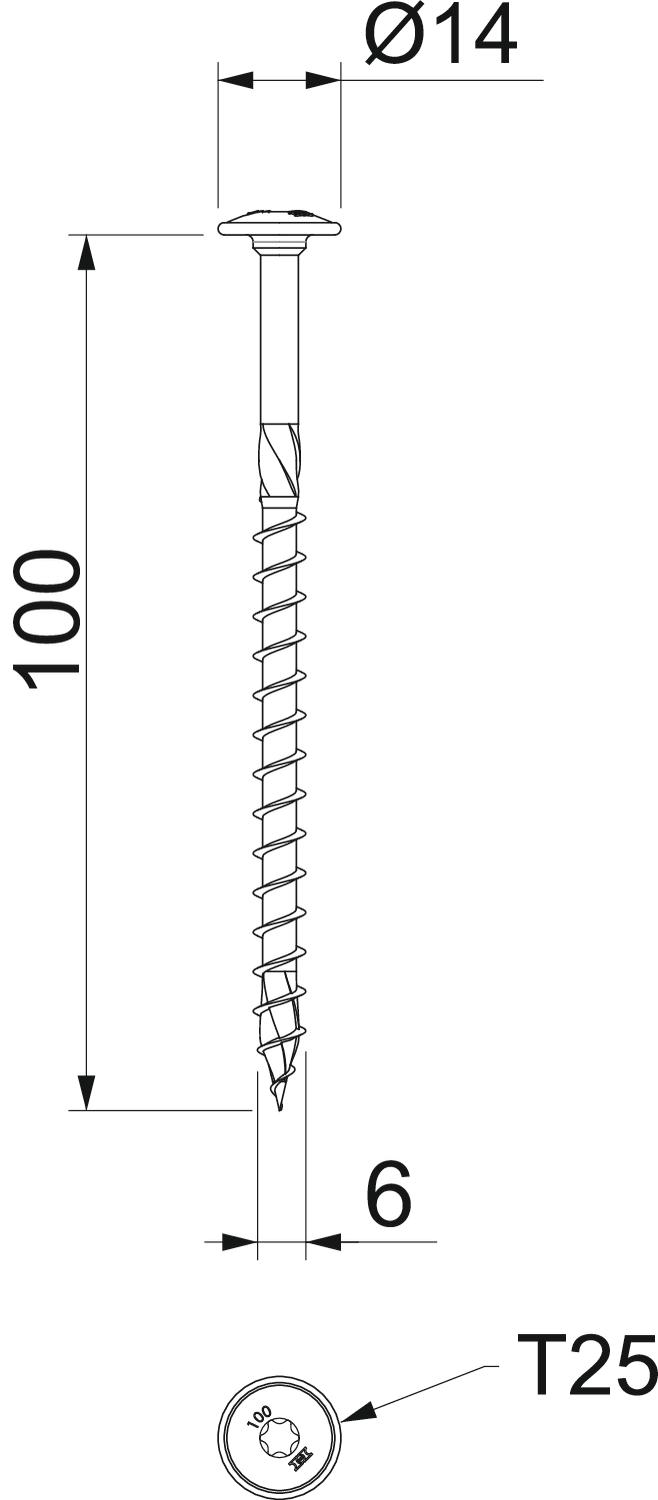

Technical data

Technical data

Dimension	6x100
Dimension D	6 mm
Dimension L	100 mm
Hardened	yes
Head diameter	14 mm
Head shape	Plate head

Length	100 mm
Material	Steel
Screw system	Torx
Shank diameter	4,5 mm
Surface	Electrogalvanized
Two-compartment	no

All types

All types

Types	Length	Dimension D	Item no.	Quantity	SSU
HT 6x60 TD	60 mm	6 mm	3498130	piece	200 piece
HT 6x80 TD	80 mm	6 mm	3498132	piece	100 piece
HT 6x100 TD	100 mm	6 mm	3498134	piece	100 piece
HT 6x120 TD	120 mm	6 mm	3498136	piece	100 piece

Downloads

Data sheet HT 6x100 TD / 3498134 , 0.20MB , pdf

Download

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Download

Brochure Brochure The Experts , 2.10MB , pdf

Brochure Brochure Maintaining the electrical supply on wood , 2.10MB , pdf

Download

Brochure Zwischendeckeninstallationen , 2.70MB , pdf

Download

Catalogue Schutzinstallation Brandgeprüfte Verlegesysteme , 19.95MB , pdf

Surveyor's comments Maintaining electrical functionality Fire protection fastening on load bearing wooden components , 6.58MB , pdf
