Flat angle cover, fluted 76.5

morepic-1

morepic-2

Flat angle cover, fluted

Item no. 6274590 | EAN 4012195656999

Item no. / Types	6274590 / GK-OTKFRW

Width	76.5 mm

Product description

Product description

Flat angle cover, fluted surface.

Technical data

Technical data

Colour	Pure white; RAL 9010
Cover mounting type	Internal
Halogen-free	no
Length	400 mm
Material	Polyvinylchloride
Permitted temperature range, max.	60 °C

Permitted temperature range, min.	-15 °C
Protection rating	IP30
Protection rating IK code	IK08
Protective film	yes
Version for	Profiled
Width	76,5 mm

All types

All types

Types	Width	Item no.	Quantity	SSU
GK-OTKFRW	76.5 mm	6274590	piece	1 piece

Downloads

Data sheet GK-OTKFRW / 6274590 , 0.16MB , pdf

Catalogue Geräteeinbaukanäle und Säulen , 28.91MB , pdf

EU declaration of conformity GK-OTKFRW / 6274590 , 0.13MB , pdf

UK Declaration of Conformity GK-OTKFRW / 6274590 , 0.14MB , pdf

Download

Label approval VDE symbol approval, Rapid 80 plastic device installation duct systems , 0.11MB , pdf

Download

Selection aid Overview, Rapid 80 device installation duct, plastic , 2.00MB , pdf

Safety data sheet PVC_Material data , 0.02MB , pdf

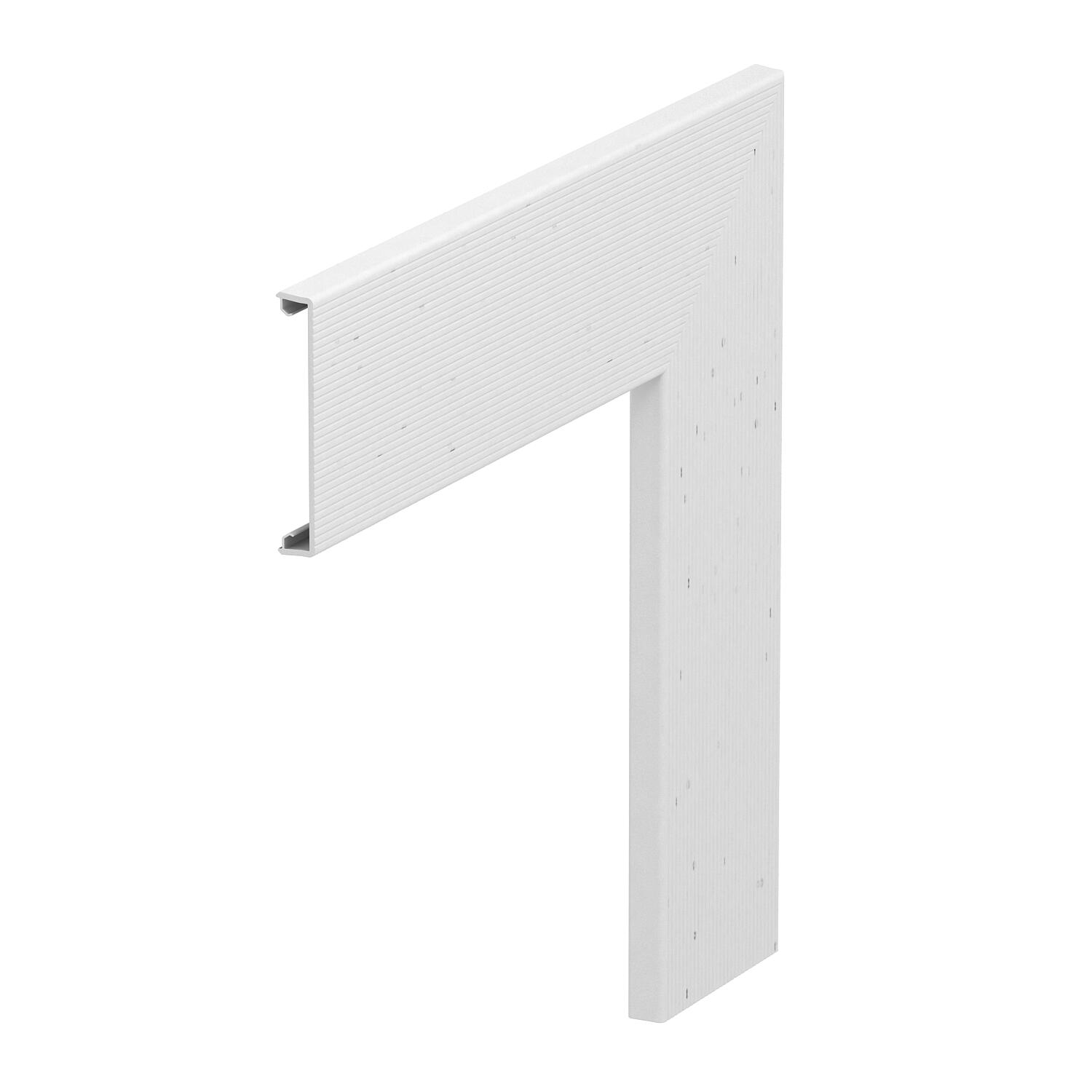

Product graphic GK-OTKFRW / 6274590, 57.55 kB, jpg

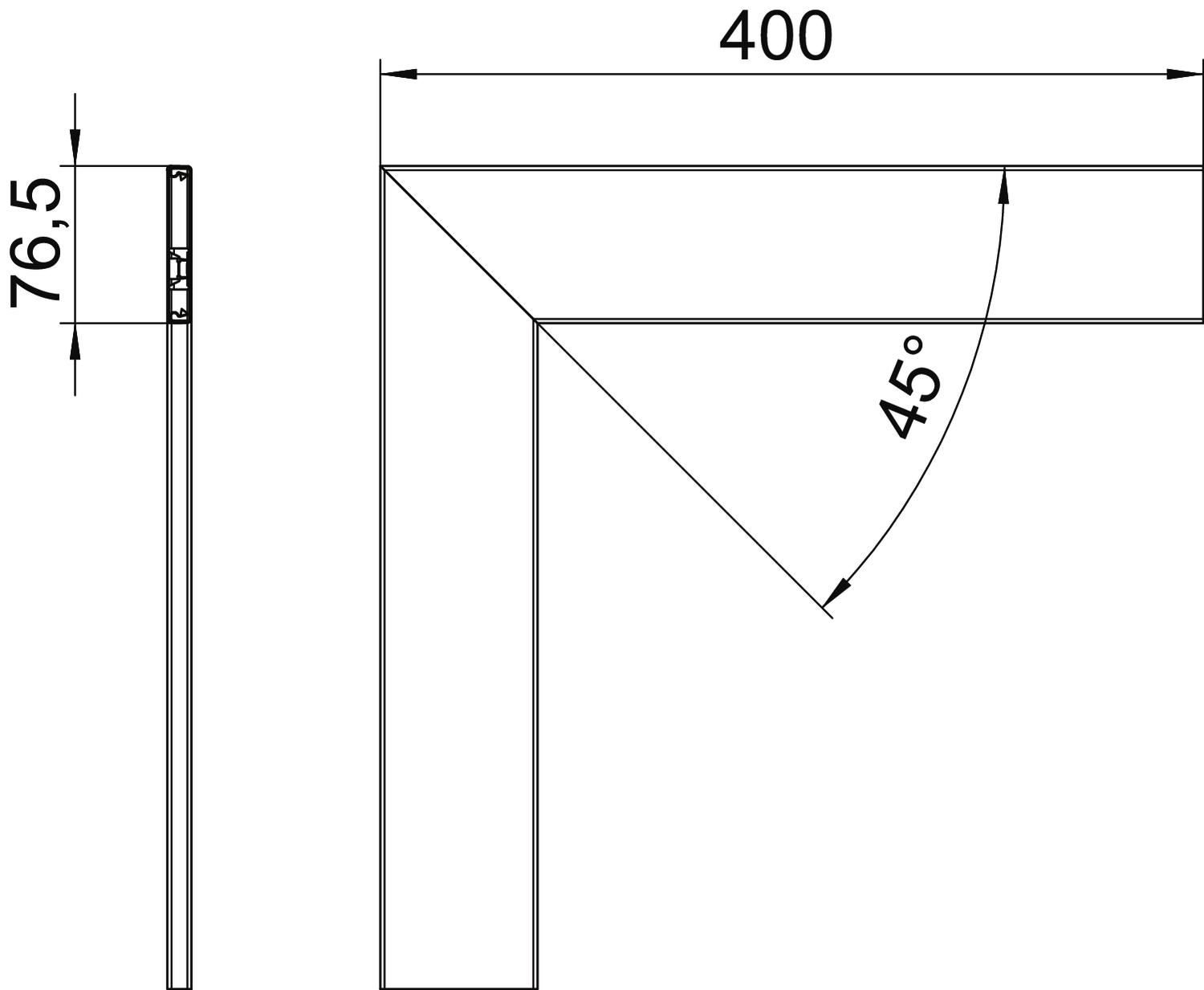

Scale drawing GK-OTKFRW / 6274590, 51.20 kB, jpg

No invitation to tender text is available for this product.
