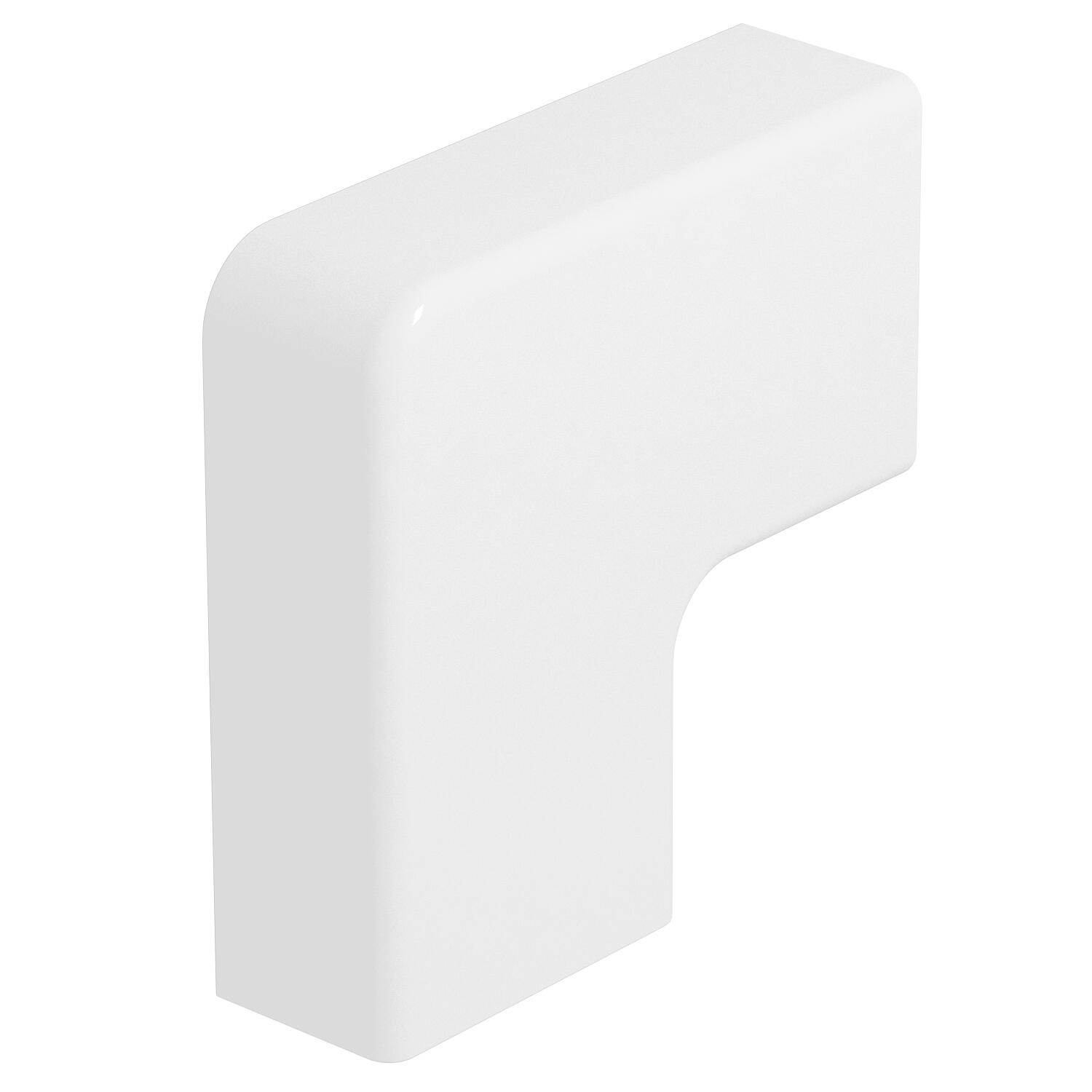

Flat angle cover, for duct type WDK 13025
Item no. 6192742 | EAN 4012195959144
- Product description
-
Product descriptionFlat angle hood for changing the direction of the WDK trunking.
-
- Technical data
-
Technical data

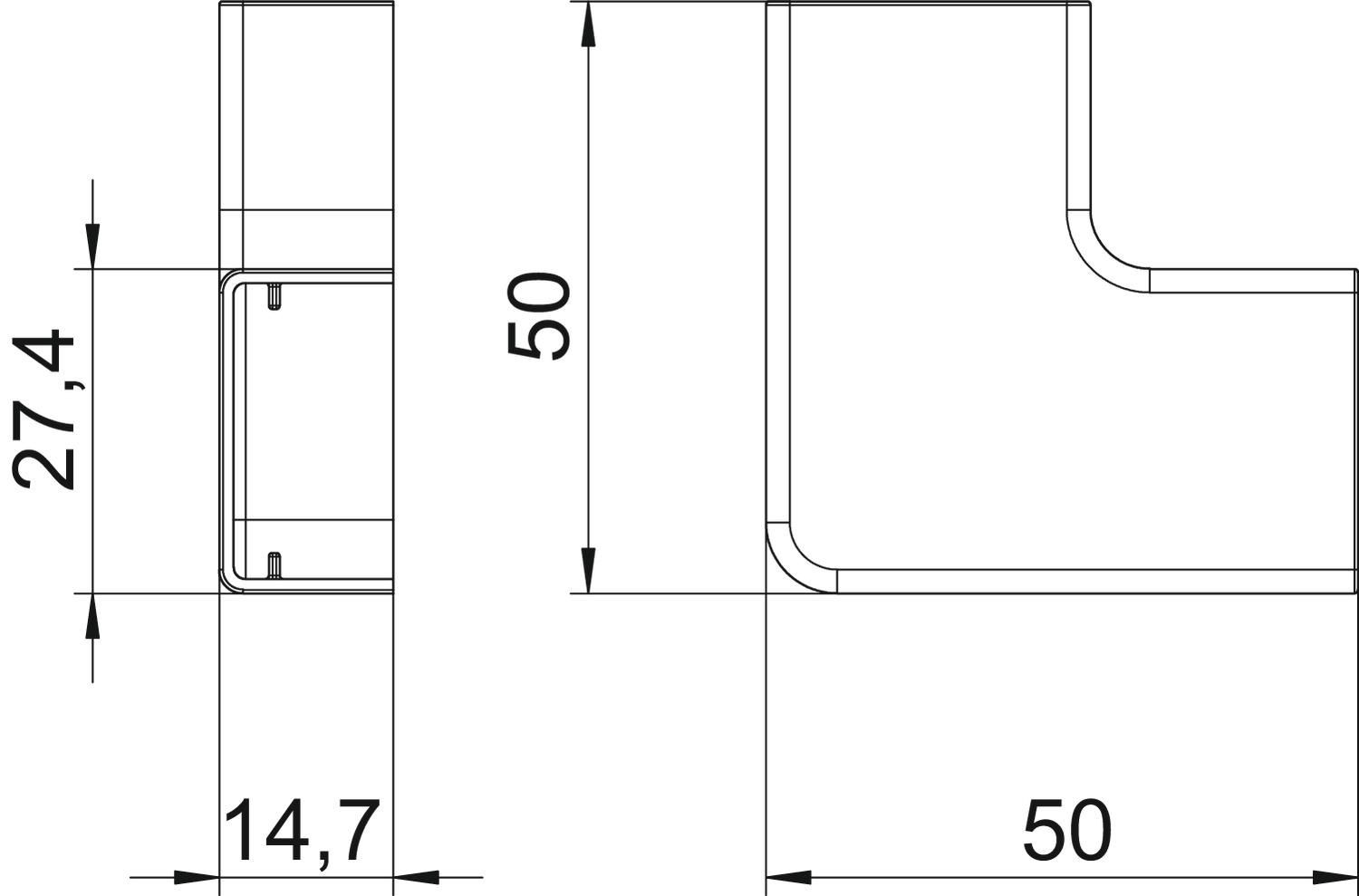

Antibacterial treatment no Colour Pure white; RAL 9010 Dimension 15x50x50mm Dimension a 50 mm Fastening type Lockable Halogen-free no Height 13 mm Length 50 mm Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Version for Hood fitting Width 25 mm - All types
- Downloads
-
Data sheet WDK HF13025RW / 6192742 , 0.16MB , pdfCatalogue cable routing systems , 2.10MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity WDK HF13025RW / 6192742 , 0.13MB , pdfREACH Declaration of conformity WDK HF13025RW / 6192742 , 0.12MB , pdfRoHS Declaration of conformity WDK HF13025RW / 6192742 , 0.12MB , pdfLabel approval VDE-Zeichengenehmigung WDK , 0.64MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfSafety data sheet PVC_Material data , 0.02MB , pdfNo invitation to tender text is available for this product.
