Flat angle cover, smooth 76.5
morepic-1 morepic-2

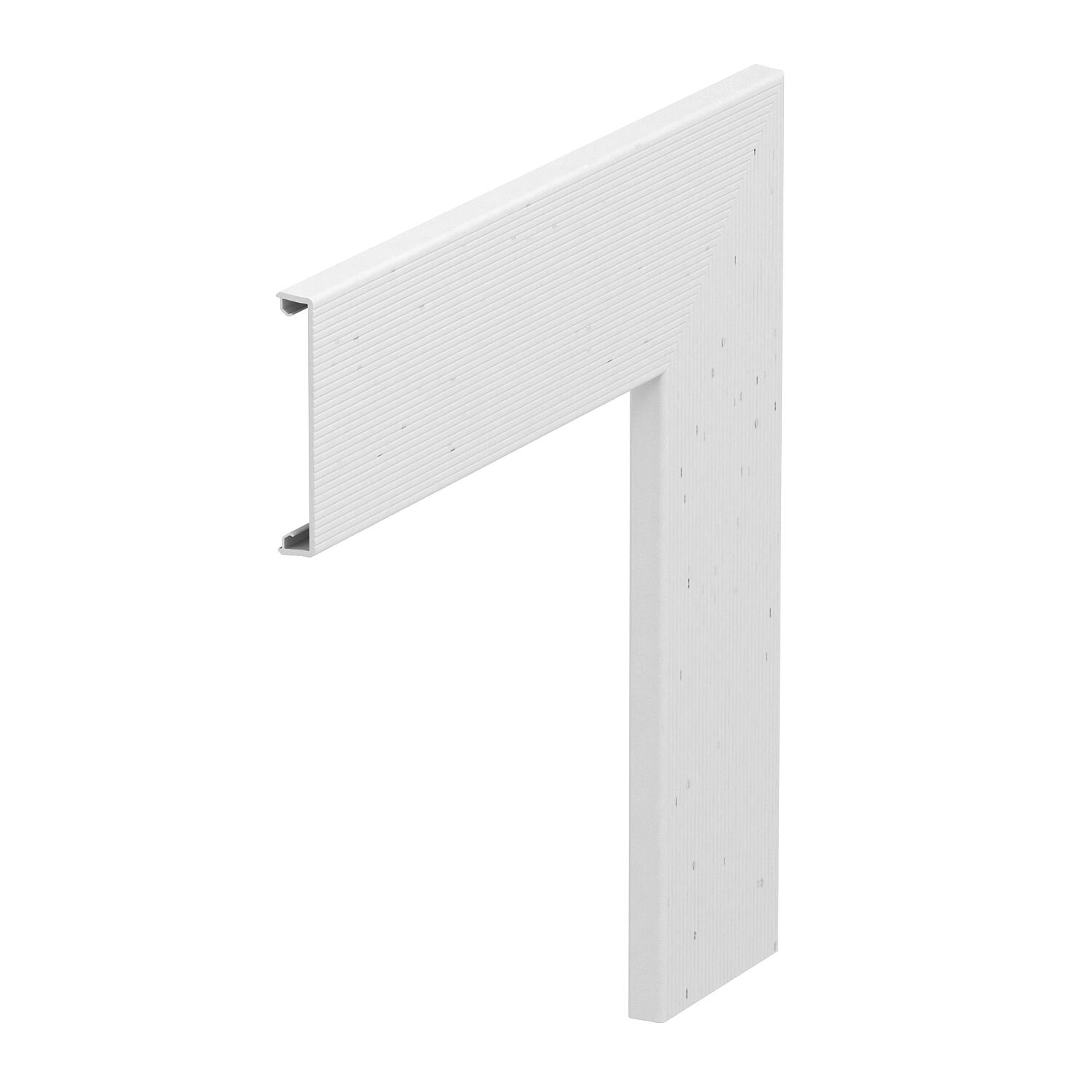

Flat angle cover, smooth

Item no. 6114250 | EAN 4012196450930

6114250 / GKH-OTGFRW
76.5 mm
Product description

Product description

Flat angle cover made of halogen-free PC/ABS.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Pure white; RAL 9010
Cover mounting type Internal
Halogen-free yes
Height 12 mm
Length 400 mm
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -15 °C
Protection rating IP30
Protection rating IK code IK08
Protective film yes
Version for Smooth
Width 76,5 mm
All types

All types

Types Width Item no. Quantity SSU
GKH-OTGFRW 76.5 mm 6114250
1 piece
Downloads

Download

Download

Declaration of conformity GKH-OTGFRW / 6114250 , 0.13MB , pdf
Download
UK Declaration of Conformity GKH-OTGFRW / 6114250 , 0.14MB , pdf
Download
REACH Declaration of conformity GKH-OTGFRW / 6114250 , 0.12MB , pdf
Download
RoHS Declaration of conformity GKH-OTGFRW / 6114250 , 0.12MB , pdf
Download

Download

No invitation to tender text is available for this product.
